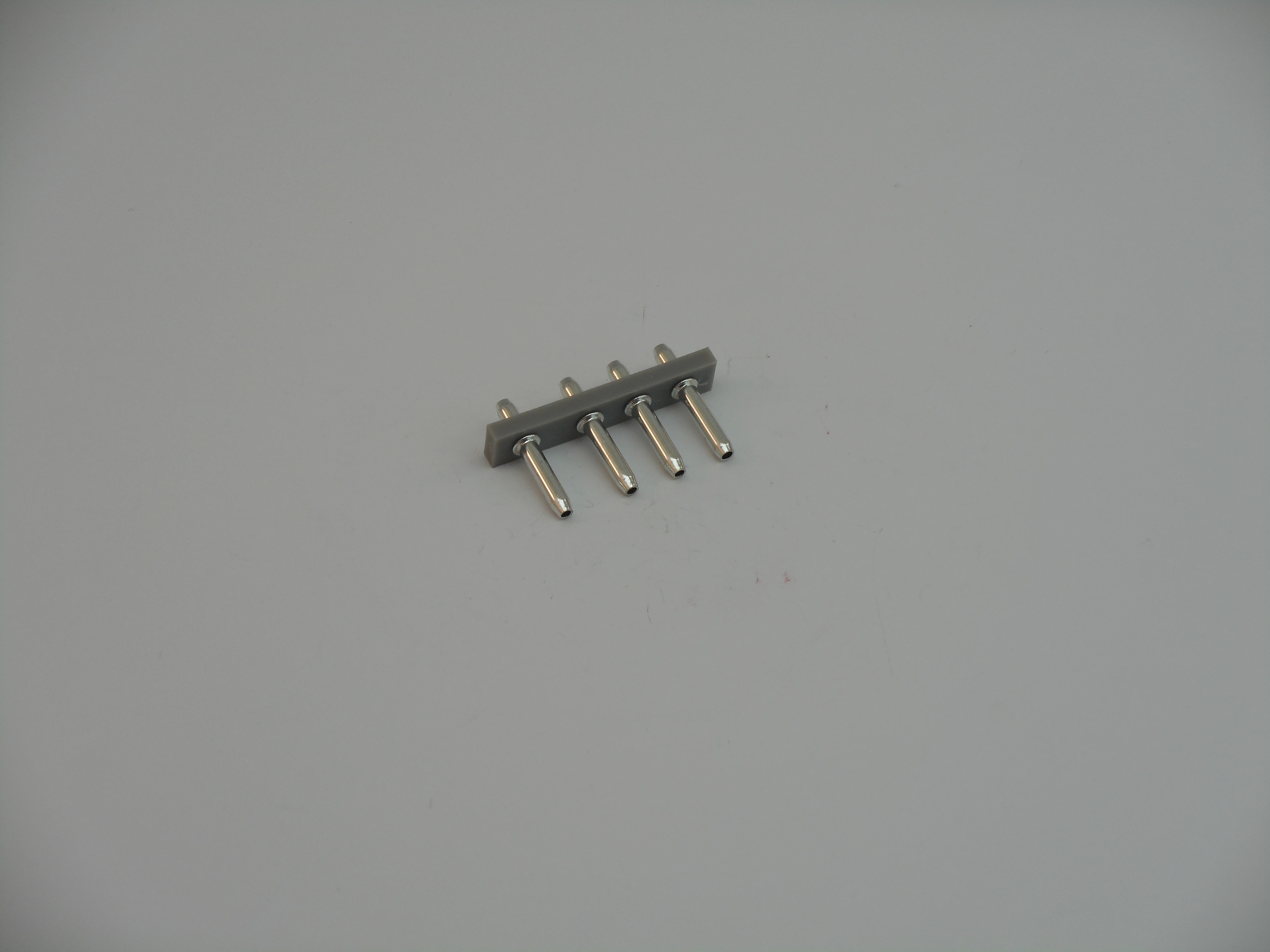

4-Pin Pole Wafer Header connector 2.36mm / .093 (8mm x 6mm) (CP1008). Used in many applications such as monitor yoke, degauss, G2 and other connectors. These have almost 50% higher current rating then any other connectors of this type that i have seen on the market. These Headers are polarized by how their positions are spaced and these have the first position all spaced at 8mm and every subsequent position is spaced / pitch at 6mm. Ratings on these connectors are Current 7 Amp, Voltage 250V AC / DC, Wire Gauge 18 -24 AWG, Material UL94V-2, Withstand Voltage 1500V AC/1 minute. Header overall Height is 16.5mm and base width is 28mm and base length is 5.5mm and the header pin diameter is 2.36mm. Pins sold separately.
