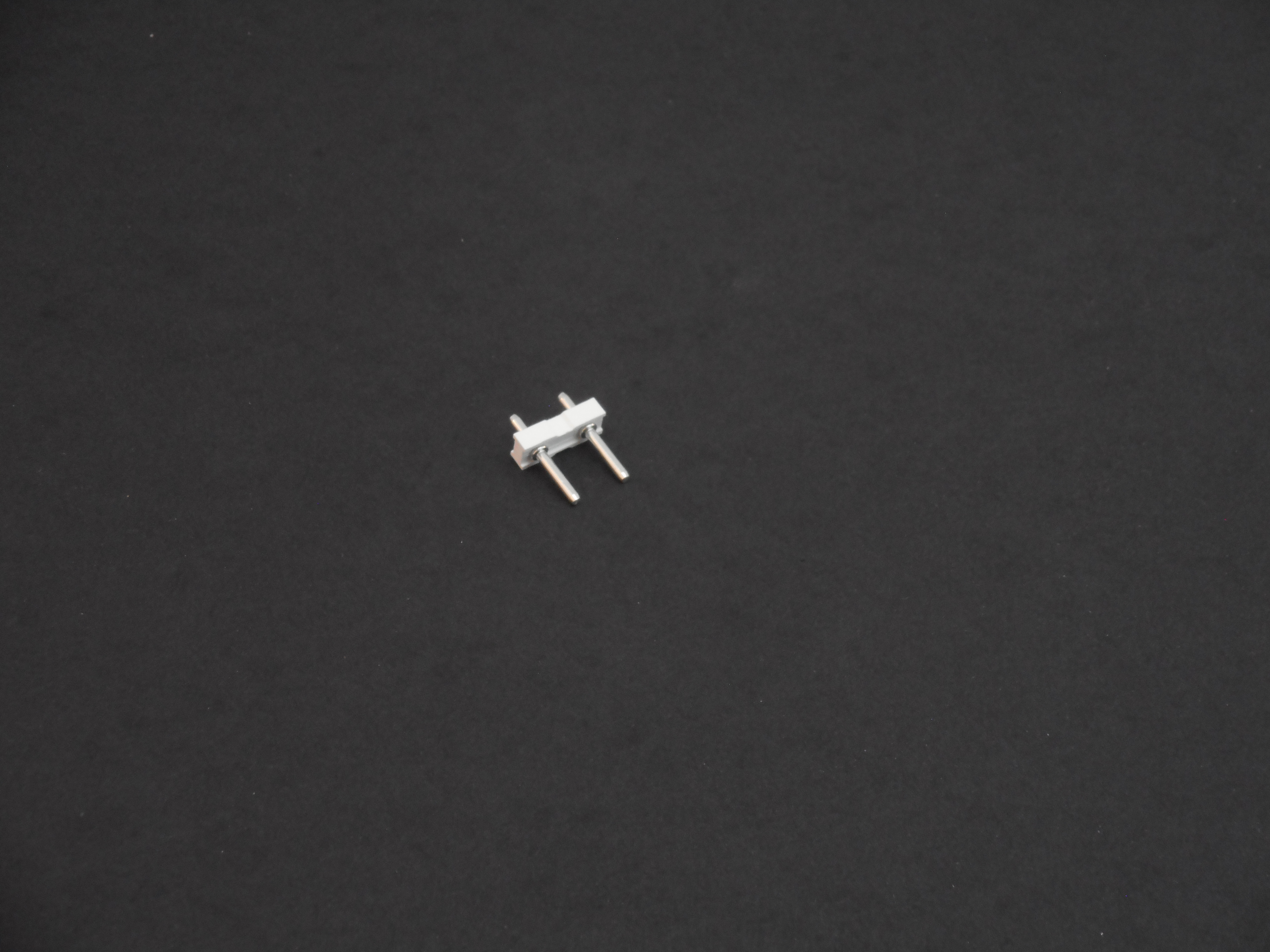

2-Pin Wafer Header 1.55mm (CN1008)

(1 customer review)

$0.69

2-Pin Pole Wafer Header connector 1.55mm / .062  (7.5mm x 5mm) (CN1008).  Used in many applications such as monitor yoke, degauss, G2 and other connectors.  These Headers are polarized by how their positions are spaced and these have the first position all spaced at 7.5mm and every subsequent position is spaced / pitch at 5mm.  Pins sold separately.

1800 in stock

Description

2-Pin Pole Wafer Header connector 1.55mm / .062  (7.5mm x 5mm) (CN1008).  Used in many applications such as monitor yoke, degauss, G2 and other connectors including used on the Nanao MS8 chassis vertical connector and many others.  These have almost 50% higher current rating then any other connectors of this type that i have seen on the market.  These Headers are polarized by how their positions are spaced and these have the first position all spaced at 7.5mm and every subsequent position is spaced / pitch at 5mm.  Ratings on these connectors are Current 5 Amp, Voltage 250V AC / DC, Wire Gauge 20-26 AWG, Material UL94V-0/2, Withstand Voltage 1500V AC/1 minute.  Header overall Height is 15.5mm and base width is 12.6mm and base length is 6mm and the header pin diameter is 1.55mm.  Pins sold separately.

Additional information

Weight .015625 lbs
Dimensions 1 × .75 × .25 in

1 review for 2-Pin Wafer Header 1.55mm (CN1008)

  1. delusional29 (verified owner)

    These are quality replacements for my Candy Cab monitor yoke wiring project.
