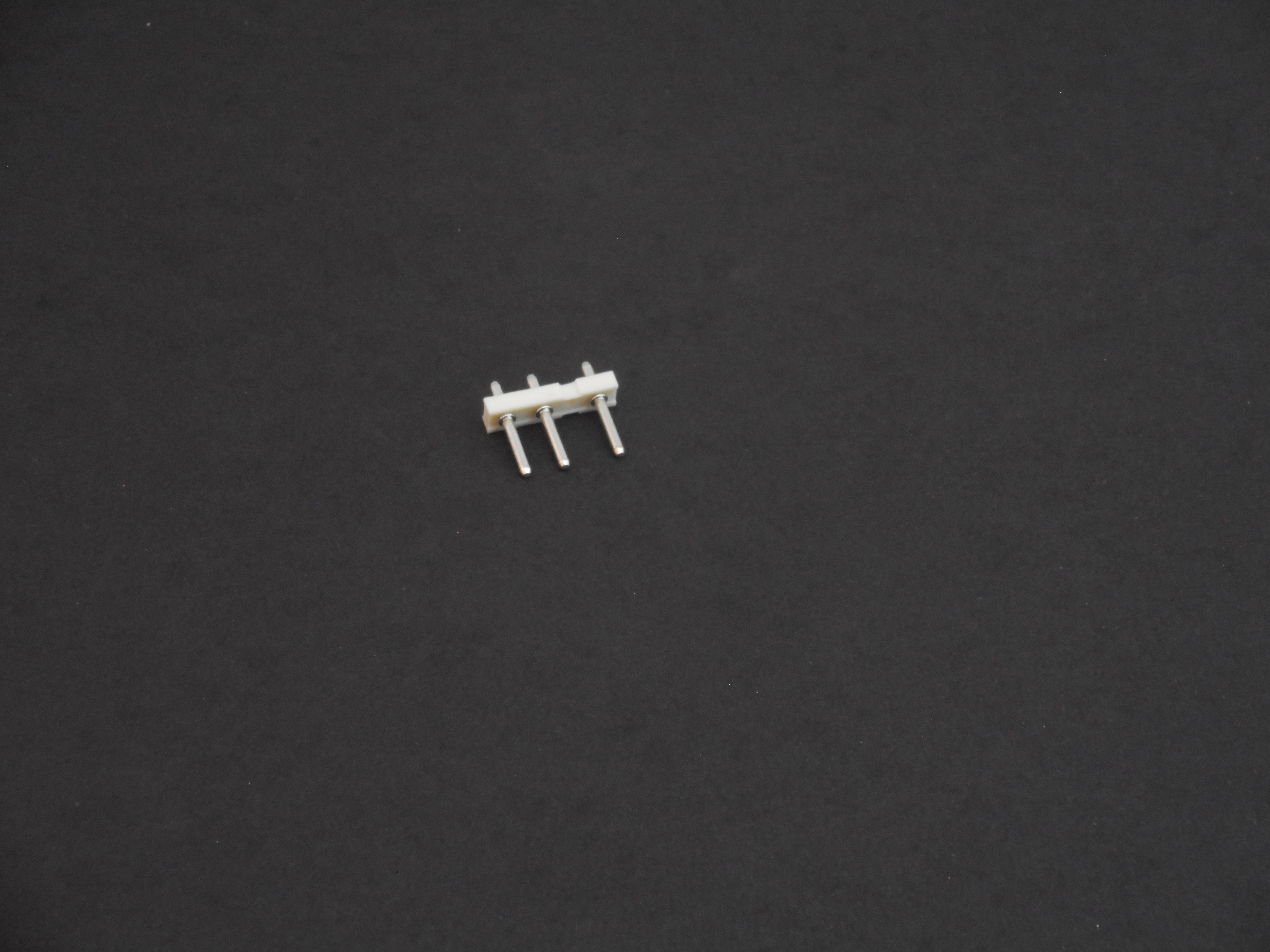

3-Pin Pole Wafer Header connector 1.55mm / .062 (7.5mm x 5mm) (CN1009). Used in many applications such as monitor yoke, degauss, G2 and other connectors. These have almost 50% higher current rating then any other connectors of this type that i have seen on the market. These Headers are polarized by how their positions are spaced and these have the first position all spaced at 7.5mm and every subsequent position is spaced / pitch at 5mm. Ratings on these connectors are Current 5 Amp, Voltage 250V AC / DC, Wire Gauge 20-26 AWG, Material UL94V-0/2, Withstand Voltage 1500V AC/1 minute. Header overall Height is 15.5mm and base width is 17.6mm and base length is 6mm and the header pin diameter is 1.55mm. Pins sold separately.
