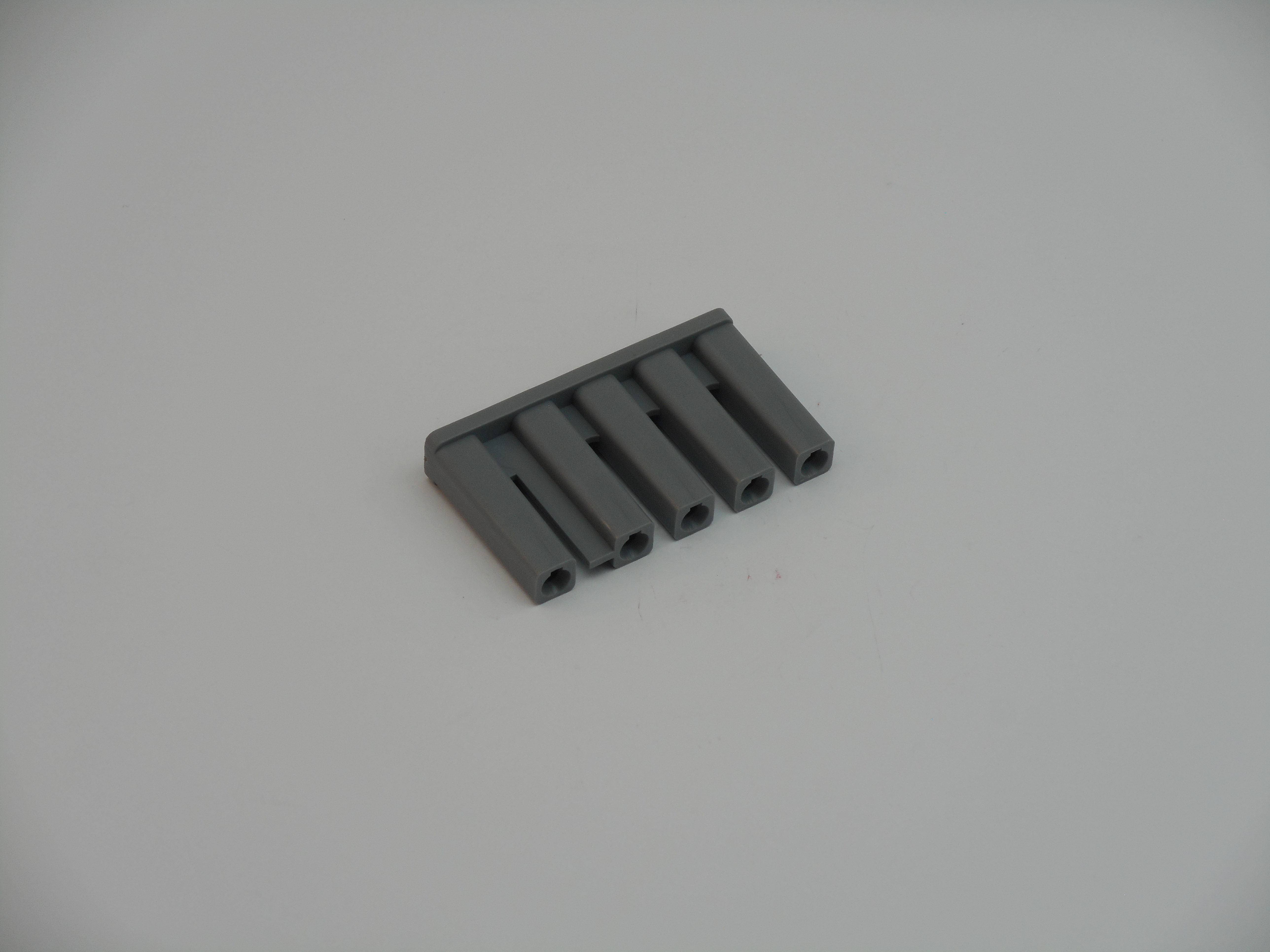

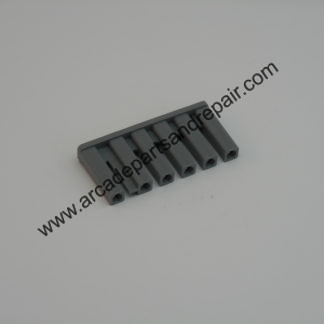

5-Pin Plug Housing 2.36mm (CM1004)

(2 customer reviews)

$1.10

5-Pin Pole Plug Housing connector 2.36mm / .093  (10mm x 8mm) (CM1004).  Used in many applications such as monitor yoke, degauss, G2 and other connectors.  These have almost 50% higher current rating then any other connectors of this type that i have seen on the market.  Pins sold separately.

940 in stock (can be backordered)

Description

5-Pin Pole Plug Housing connector 2.36mm / .093  (10mm x 8mm) (CM1004).  Used in many applications such as monitor yoke, degauss, G2 and other connectors.  This is the exact replacement housing for the Electrohome G07 Yoke connector at the chassis.  These have almost 50% higher current rating then any other connectors of this type that i have seen on the market.  These connectors are polarized by how their positions are spaced and these have the first position all spaced at 10mm and every subsequent position is spaced / pitch at 8mm.  Ratings on these connectors are Current 7 Amp, Voltage 250V AC / DC, Wire Gauge 18 -24 AWG, Material UL94V-2, Withstand Voltage 1500V AC/1 minute.  Connector overall Height is 22.2mm and overall width is 7.5mm and overall length is 40.6mm.  Pins sold separately.

Additional information

Weight .015625 lbs
Dimensions 1.5 × 1 × .25 in

2 reviews for 5-Pin Plug Housing 2.36mm (CM1004)

  1. aramis (verified owner)

    Used this to replace the broken yoke connector on a G07, worked great!

  2. Patrick B. (verified owner)

    This was the exact part I needed….fits perfectly. Thank you.
