Description

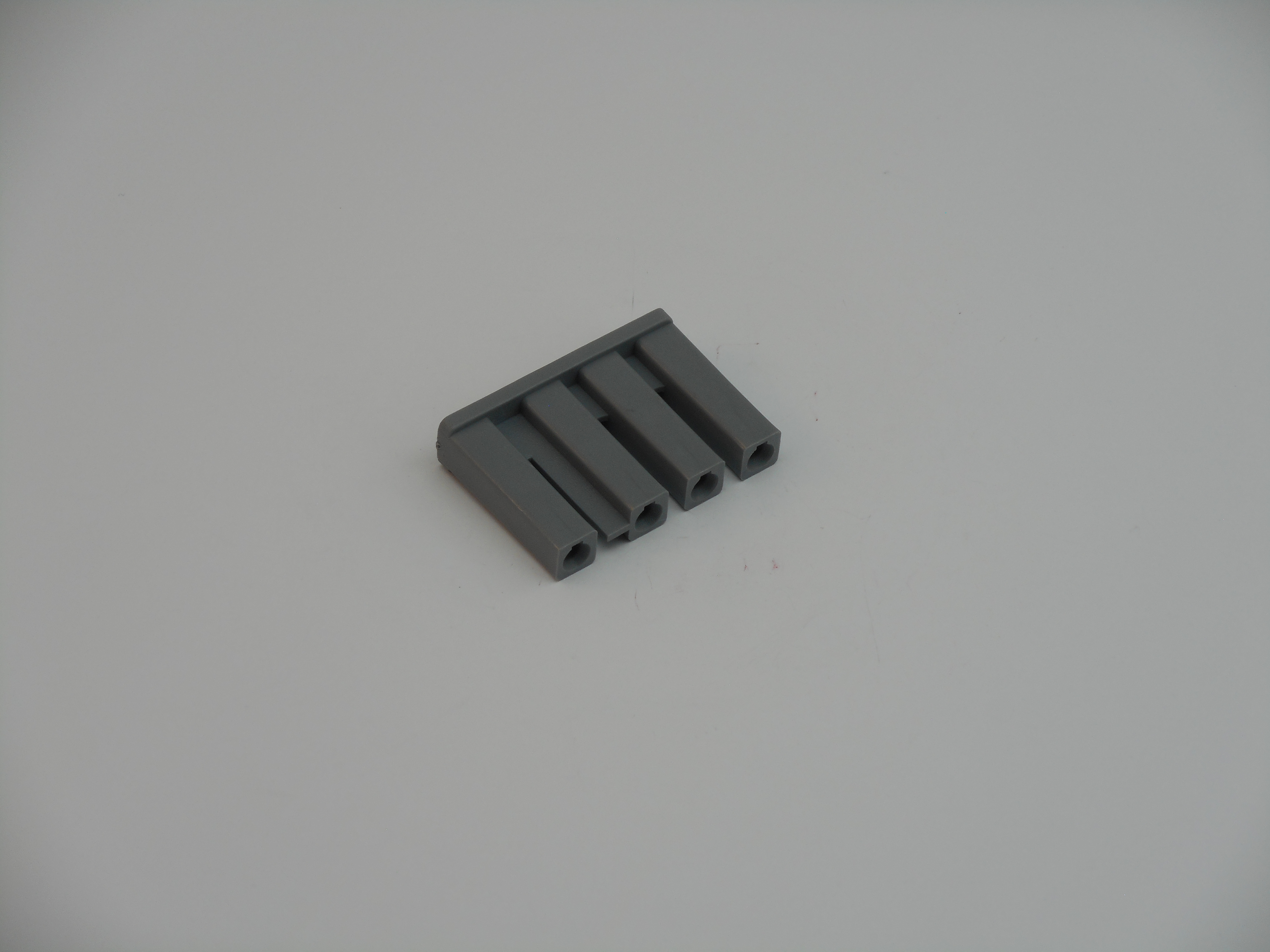

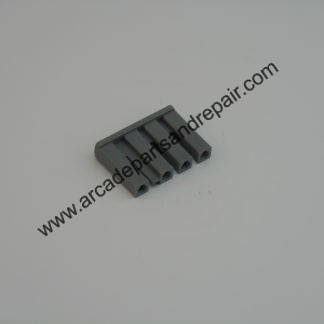

4-Pin Pole Plug Housing connector 2.36mm / .093 (10mm x 8mm) (CM1003). Used in many applications such as monitor yoke, degauss, G2 and other connectors. These are the replacement Yoke connectors for wells gardner K7000 and K4900. These have almost 50% higher current rating then any other connectors of this type that i have seen on the market. These connectors are polarized by how their positions are spaced and these have the first position all spaced at 10mm and every subsequent position is spaced / pitch at 8mm. Ratings on these connectors are Current 7 Amp, Voltage 250V AC / DC, Wire Gauge 18 -24 AWG, Material UL94V-2, Withstand Voltage 1500V AC/1 minute. Connector overall Height is 22.2mm and overall width is 7.5mm and overall length is 32mm. Pins sold separately.
Matthew Smith (verified owner) –
High quality connector for my monitor.
Charlie Pyne (verified owner) –
Perfect fit on my Toei monitor
[email protected] (verified owner) –
Really nice to finally have a low cost source for a part that is commonly used on 80’s arcade monitor yokes. Plus they have the replacement pons too which is a huge plus.
Josh M (verified owner) –
Perfect fit for WGM K 7000 yoke plug. Quality is excellent fits like factory stuff.
delusional29 (verified owner) –
Works perfectly on typical arcade monitor chassis yoke wiring. I needed to build an extension harness and paired it up with female 2.36mm Pins (CM1006) (CP1011) and the male 4-Pin Wafer Header 2.36mm (CM1010).
Robert Balouskus (verified owner) –
I looked all over for detail on the proper spacing connector for WG yoke wires and of course here it is.
Detailed product description wins once again.
Thanks for perfect parts as always.
