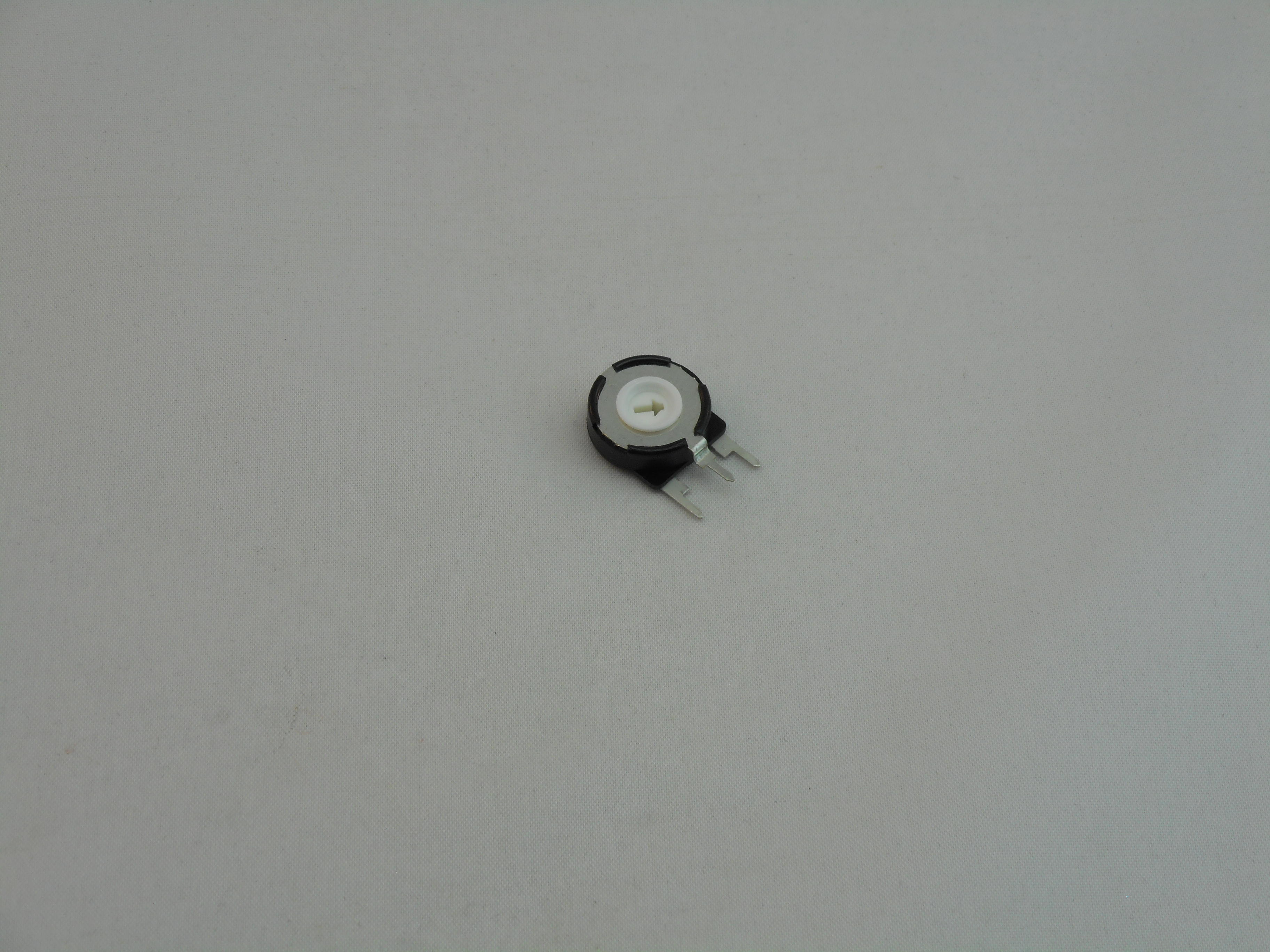

5K OHM TRIMMER POTENTIOMETER (P1046)

$2.20

5K OHM .25 Watt 250VDC Maximum operating voltage 20% tolerance 15mm Diameter Carbon resistive element and up to 100K cycle rating TRIMMER POTENTIOMETER (P1046).  PCB layout is 10mm x 2.5mm.  Vertical mount side adjust POT with screwdriver slot adjust.

5403 in stock

Description

5K OHM .25 Watt 250VDC Maximum operating voltage 20% tolerance 15mm Diameter Carbon resistive element and up to 100K cycle rating TRIMMER POTENTIOMETER (P1046).  PCB layout is 10mm x 2.5mm.  Vertical mount side adjust POT with screwdriver slot adjust.  This pot is used on Electrohome G07 main PCB at R504 and the Neck PCB at R113, R114 and R115 and used on Sharp XM-1801N and XM-2001N at location R616 and R515 and many other monitor chassis and other applications besides just the GO7 & Sharp.  These are the exact fit for the application listed above but can also be used in many other applications where this value of Pot is needed.

Additional information

Weight .015625 lbs
Dimensions .5 × .75 × .5 in
