Description

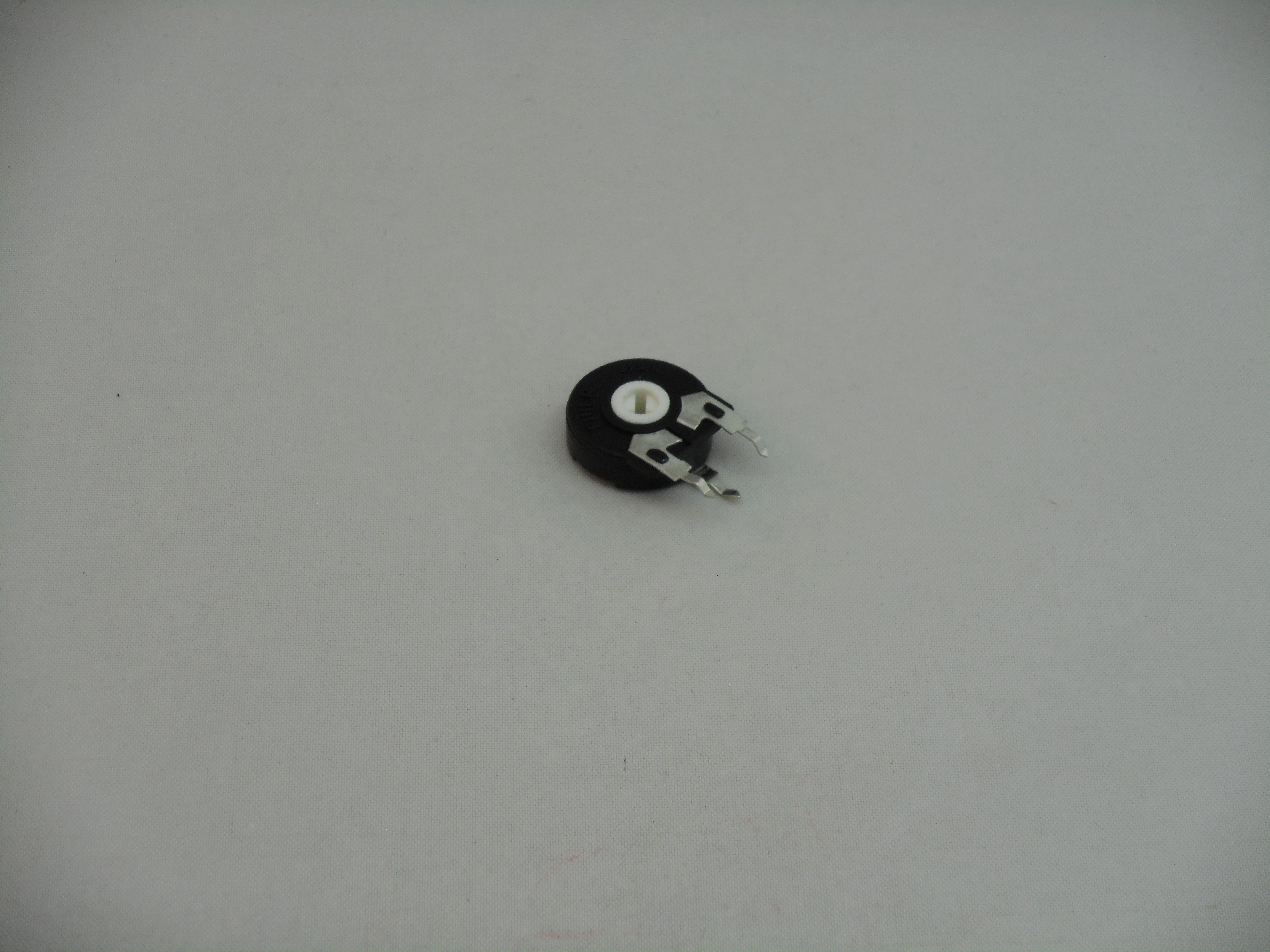

15K OHM .25 Watt 250VDC Maximum operating voltage 20% Tolerance TRIMMER POTENTIOMETER (P1090). Vertical mount side adjust POT with screwdriver slot adjust. PCB layout is 8.8mm x 4mm. 15mm Diameter Carbon resistive element and up to 100K cycle rating. Used on Wells Gardner K6100 Color Vector series monitor chassis and these are the exact original fit for the color Bias pots on the neck PCB and some locations used are R516, R517 and R518 and many other monitor chassis and other applications that require this value. These are the exact fit for the application listed above but can also be used in many other applications where this value of Pot is needed.
Robert Balouskus (verified owner) –
While I was at it replacing a broken drive pot on my 6100 neck board I found the bias pots to be kind of crunchy so ordered these.
No hassle install because the dimensions are already proper.
Thanks again for hard to find parts!
