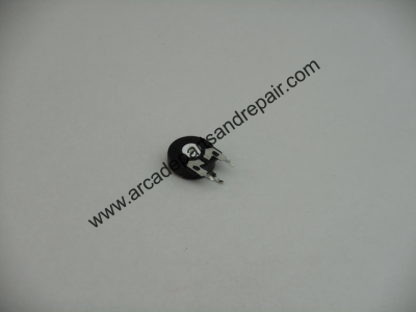

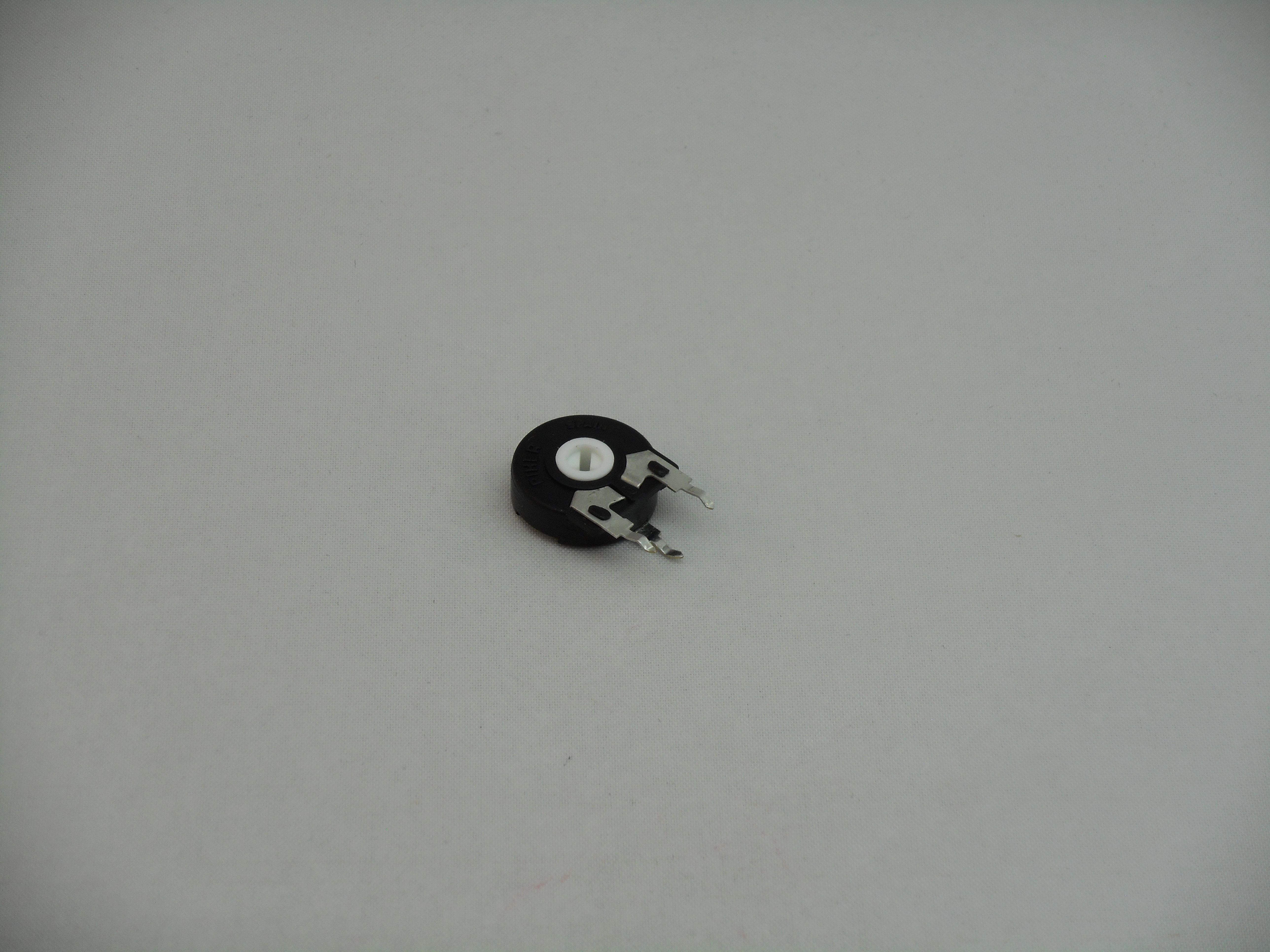

10K OHM Midway Volume Trimmer Potentiometer (P1088)

(2 customer reviews)

$2.75

10K OHM .25 Watt 250VDC Maximum operating voltage 20% Tolerance TRIMMER POTENTIOMETER (P1088).  Vertical mount side adjust POT with screwdriver slot adjust.  PCB layout is 8.8mm x 4mm.

1893 in stock

Description

10K OHM .25 Watt 250VDC Maximum operating voltage 20% Tolerance TRIMMER POTENTIOMETER (P1088).  Vertical mount side adjust POT with screwdriver slot adjust.  PCB layout is 8.8mm x 4mm.  15mm Diameter Carbon resistive element and up to 100K cycle rating.   Used on Midway arcade game PCB such as Pacman, MsPacman, Omega Race and these are the exact original OEM pot without the wheel and the exact fit and used in other applications that require this value.  These are the exact fit for the application listed above but can also be used in many other applications where this value of Pot is needed.

Additional information

Weight .015625 lbs
Dimensions .75 × .75 × .25 in

2 reviews for 10K OHM Midway Volume Trimmer Potentiometer (P1088)

  1. Matt Majewski (verified owner)

    Fits and works perfectly!

  2. Yasha Neparko (verified owner)

    Drop-in replacements for the volume pots on our Thief I/O board. Very pleased with the quality and value from APAR.
