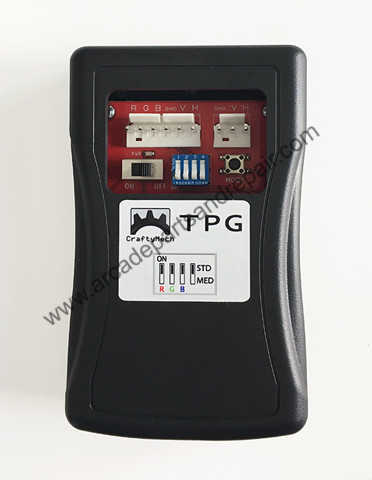

CraftyMech Monitor Test Pattern Generator 2 (Mini)

(12 customer reviews)

$89.00

The TPG2 is 30% smaller than the original TPG and is a 9V battery operated test pattern generator for Standard & Medium Resolution arcade game monitors (15/24khz).  9 volt battery not included.  Video cables can be purchased separately on our site or you can make your own from our connectors.

22 in stock

Description

The TPG2 is 30% smaller than the original TPG and is a 9V battery operated test pattern generator for Standard & Medium Resolution arcade game monitors (15/24khz).  9 volt battery not included.  Video cables can be purchased separately on our site or you can make your own from our connectors.  These are a must have for anyone doing monitor work whether your just a hobbyist or a repair shop.

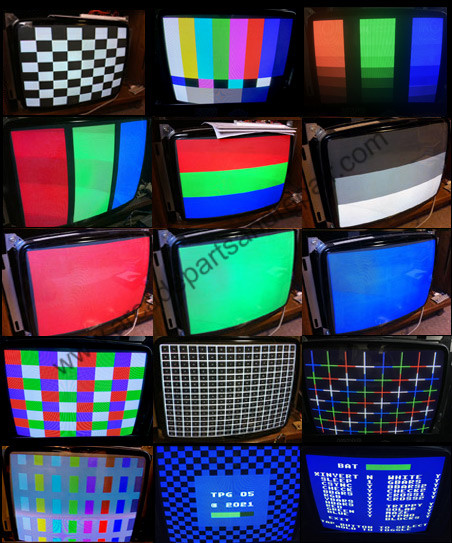

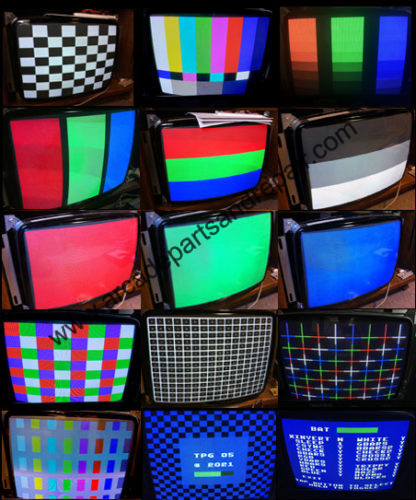

  • Over a dozen patterns.  Crosshatch, RGB Gradients, Color Bars, Solid Colors, Checkerboard, and other patterns.
  • 5 “Burn-in” Animations. Looping sequences for verifying operation over an extended time.
  • On-screen Menu with battery level indicator.
  • Simple single-button operation
  • Enable/Disable patterns & animations via built-in menu.
  • Multiple Sync Outputs (HV +/-, composite +/-).
  • R,G,B Cutoff
  • Inverted Mode for Sanyo/Sharp Nintendo monitors.
  • Sleep function to conserve battery life.
  • Power LED to show whether the unit is on or off.

Download User Manual:  TPG2 Manual



Additional information

Weight .375 lbs
Dimensions 3.5 × 5.5 × 1.5 in

12 reviews for CraftyMech Monitor Test Pattern Generator 2 (Mini)

  1. Dan Joaquin (verified owner)

    Works great. A must tool for anyone in the arcade hobby or business. Easy to use and the test patterns are great for dialing your CRT monitors in to that perfect screen.

  2. Ed Owens (verified owner)

    I finally bit the bullet and got one of these. i am glad i held off for the new design, WORKS GREAT! If your working on more than one monitor, this is a must have. combine with a isolation transformer and your ready to bench test. Its real easy to invert for Nintendo monitors, the less dip switch layout is nice and simple to use.

  3. Cmndr Brain (verified owner)

    I’ve been meaning to buy a pattern generator for a while and now was the time. Perfect timing on the release of the newer version. Along w/ the AP&R 105c cap kit, this monitor is up, running and, because of this device, looking better than ever.

  4. Qube (verified owner)

    Great product. Does everything it says it will including medium resolution and Nintendo inverse. It will fit in a shirt pocket. Pop in a 9v battery and grab an RGB monitor extension cable and you’re good to go. No more toting around the supergun and JAMMA pcb for testing arcade monitors!

  5. Paul (verified owner)

    Great device for repairs on old CRT apple and commodore monitors love it ,time saver.

  6. Brian (verified owner)

    A great device for getting monitors dialed in. I couldn’t get my WG4606 adjusted well with the game constantly changing the screen … this gives all the patterns you’d want, and for however long you want, so you can get things adjusted well.

  7. mjc271 (verified owner)

    Must have tool glad I finally bought one. Found everything I needed on this site.

  8. Brian (verified owner)

    Very useful tool! Perfect for arcade monitor work!
    Compact and ez to use.

  9. ledfrog (verified owner)

    Even though I already own an “official” Wells Gardner tester, I finally picked this one up because it has a lot more test screens and it’s more compact. I now have a proper testing tool so I don’t have to use game boards anymore!

  10. Steven Marler (verified owner)

    Works Great, easier to troubleshoot monitor out of the cabinet and adjust.

  11. Robert Hassard

    Workes great. A must have for Testing. Helps dial in the monitor or troubleshoot. Fast shipping.

  12. leewoo (verified owner)

    Great product. Helps simplify testing.
