Description

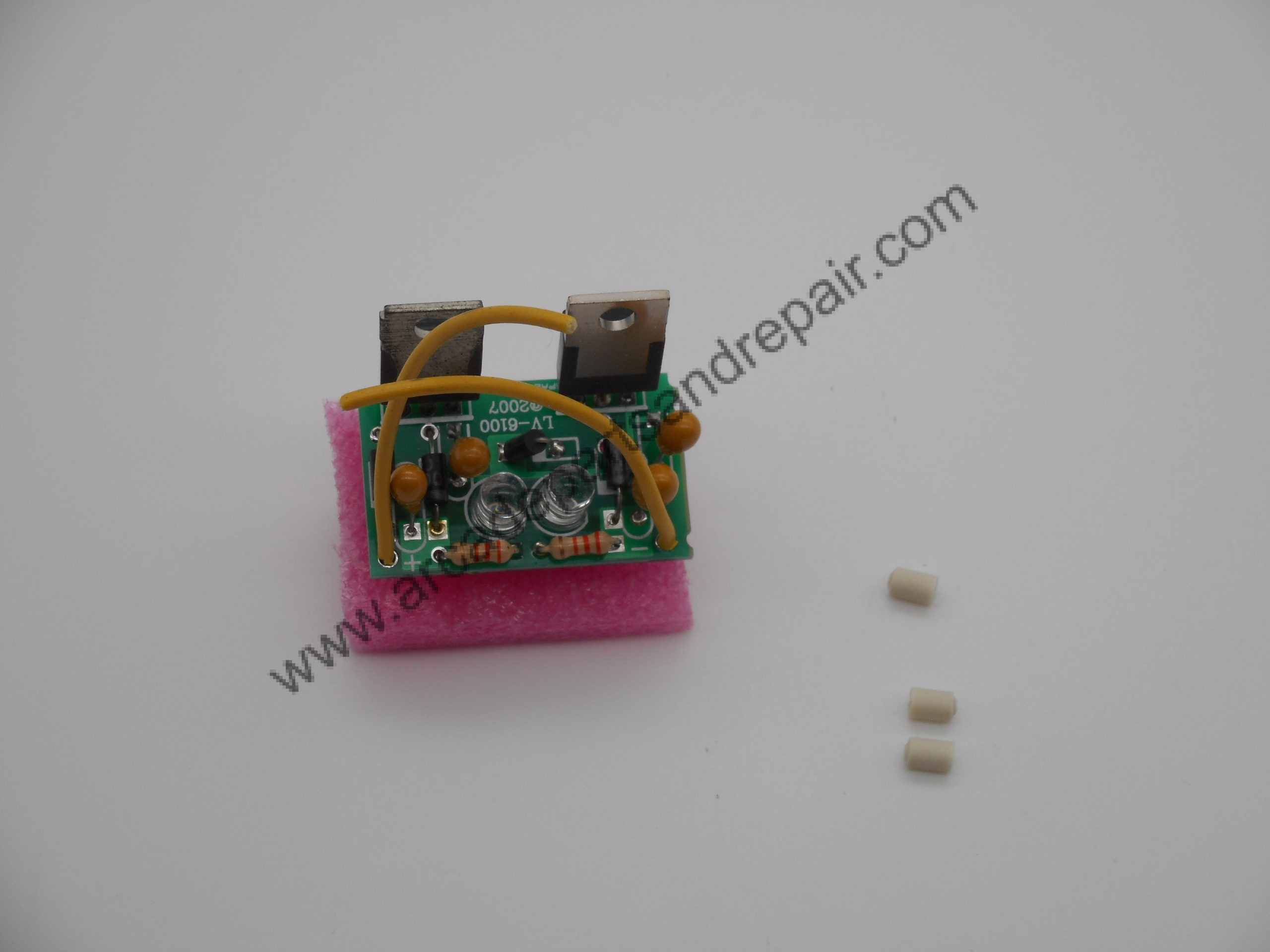

LV6100 PCB is completely assembled with the best quality/rated components and they are all through hole components so if you ever need to work on it you can, unlike those other versions sold on the market with all the lower rated SMD parts (PC1002). This upgrade PCB is used to replace all the poorly designed low voltage power supply circuit components on the deflection board of the Wells Gardner 19K6100 or K6400 series color X/Y vector arcade monitor. This LV6100 was designed by Mark Spaeth at Cambridge Arcade and we purchased his designs so they are identical to what he has been selling for many years and unlike alot of other versions this uses fixed regulators so you don’t need to adjust voltages on it which makes the install much quicker and easier for the arcade hobbyist. The LV6100 can also replace any of the following LV2000, LV2000 lite, 6100LV or LV-2K. Used on Aztarac (Centuri), Black Widow, Boxing Bugs (Cinematronics), Gravitar, Quantum, Space Duel, Star Wars, Tempest and any other game with a Wells Gardner K6100 or K6400 monitor. INCLUDED: LV6100 fully assembled and ready to install, Real Professional Ceramic PCB spacers (used to keep the PCB mounted above the defection PCB and Instructions on how to install.
Yasha Neparko (verified owner) –
Very pleased with the functionality and performance of this low-voltage power supply PCB for the WG K6100 monitor. Instructions were clear and concise, installation was straight forward, and the magnitude of the AC ripple going to the deflection transistors was reduced by several volts peak-to-peak on both the + and – downstream legs of the supply. Order processing and shipping was also fast and efficient.
Bob Perkins (verified owner) –
I’ve ordered and installed a number of these – they always work great. All of my 6100 rebuilds get one now.
tron guy –
The absolute best low voltage kit in existence for your WG6100. Hands down.
