CR23 CRT Socket (MP1039)

(6 customer reviews)

$6.55

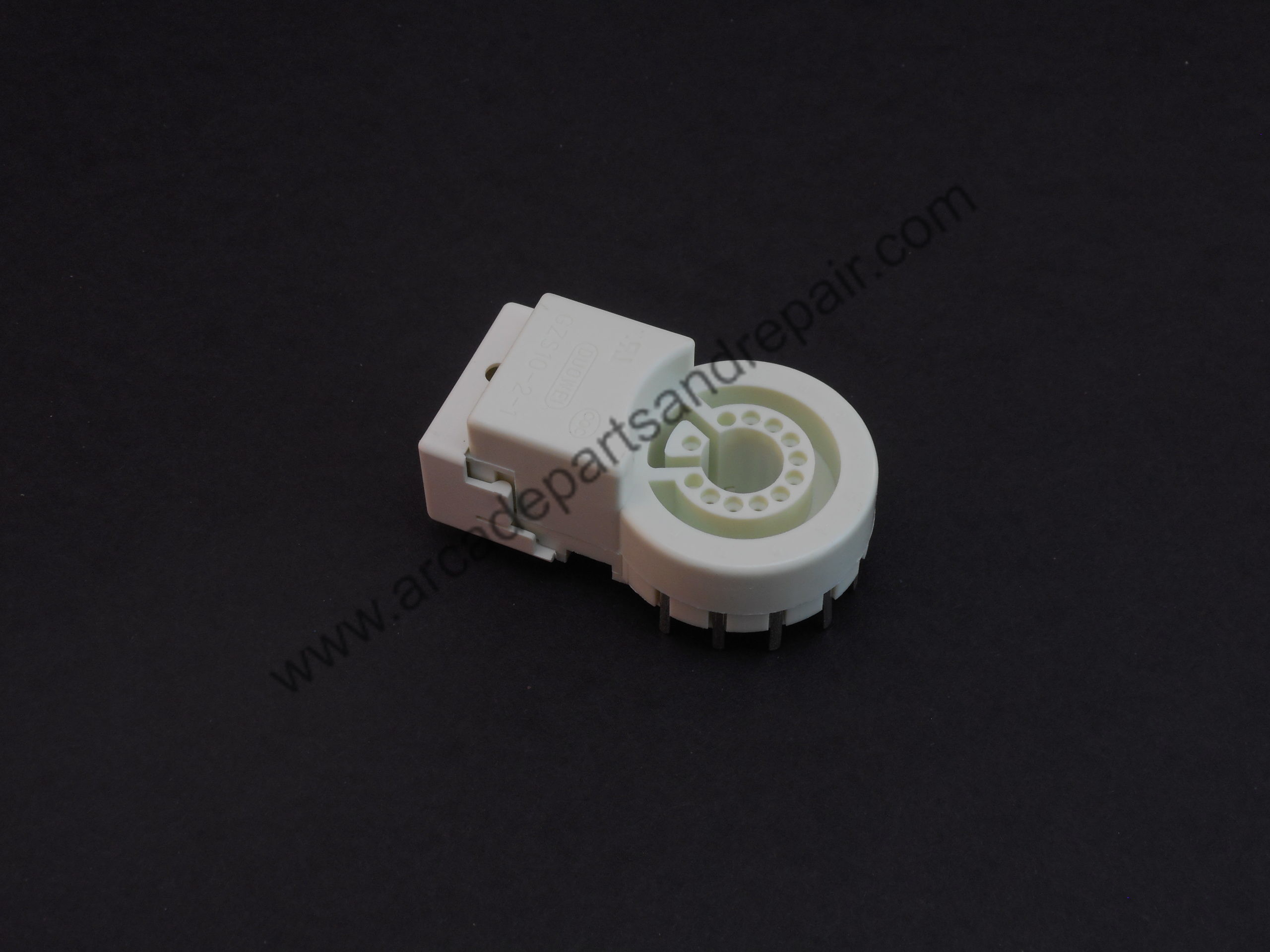

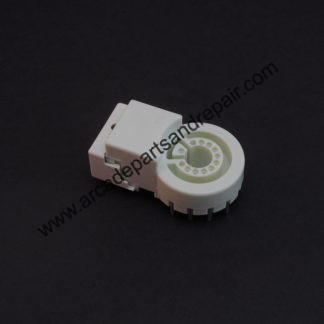

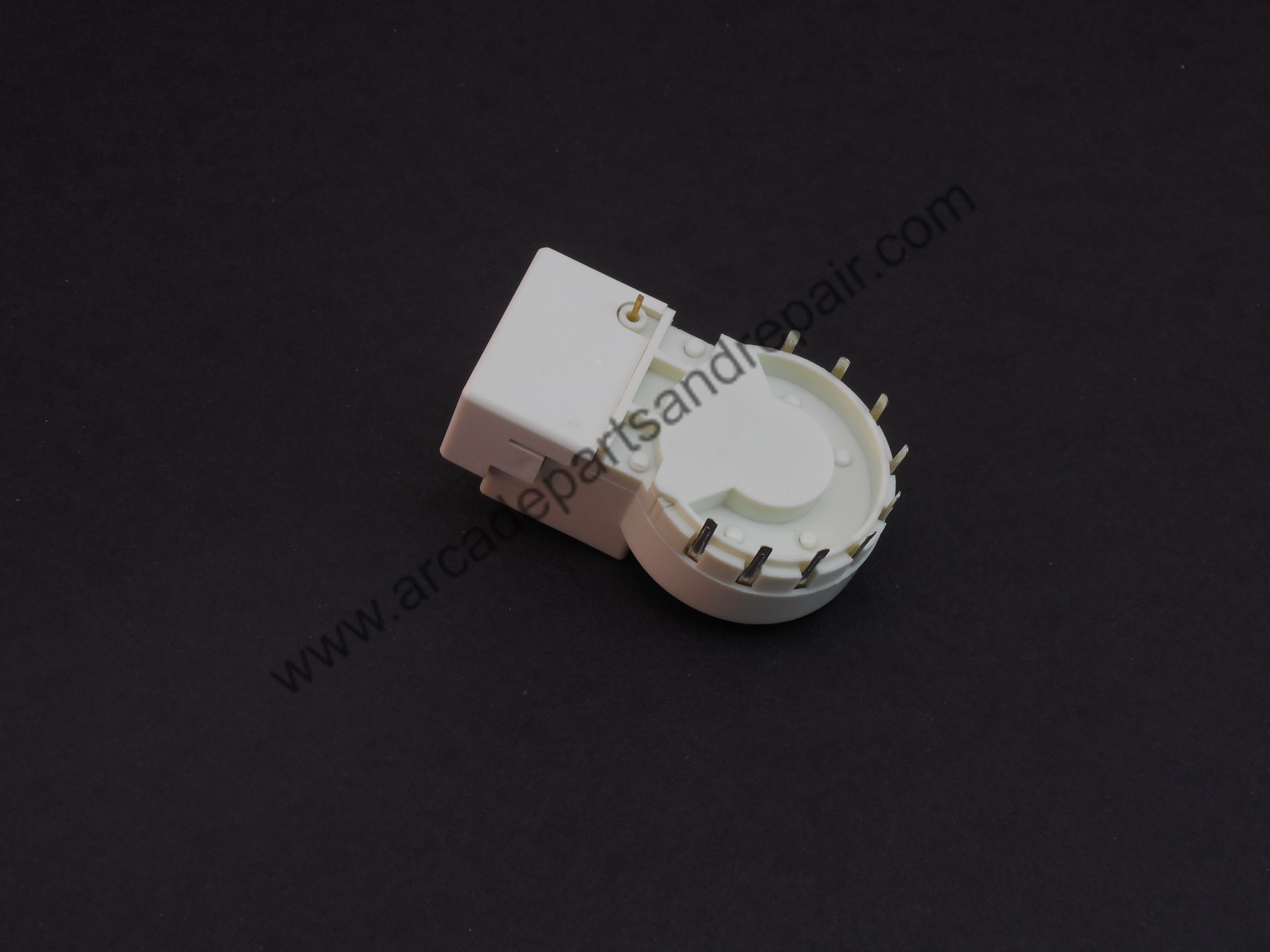

CR23 CRT Neck Socket (MP1039).

2978 in stock

Categories: ,

Description

CR23 CRT Neck Board 10-pin Socket (MP1039).  Used on many Arcade CRT monitor chassis.  This socket has been confirmed by customers that it fits the Sanyo 20EZV neck pcb.  NOTE:  On some applications you may have to drill out the center hold of the socket to allow the CRT neck pcb guide to go through otherwise the neck pcb won’t push on the CRT quite far enough.  On the K4600 we have seen it may not seat fully on the tube so it may not work properly.

Additional information

Weight .125 lbs
Dimensions 2.75 × 1.75 × 1.25 in

6 reviews for CR23 CRT Socket (MP1039)

  1. Tranquility Base Arcade

    Worked perfect but please be aware for some CRT’s you will have to drill out the center hole to complete the installation.

  2. Stardust Arcade

    Perfect replacement for a CR23 on a G07 to fix a focus issue I was having. Monitor would take 30 minutes to “warm up” and catch focus. Old socket had corrosion on the focus pin, and this replacement fixed the problem, and works perfectly. Like TBA said, before you install this, don’t forget to drill out the center hole or you will have a fitment issue when putting the neck board back on.

  3. A ROSS (verified owner)

    THE CRT SOCKET WORKED – I NEEDED TO MAKE ADAPTERS TO MY OLDER BK CRT TESTER & REJUVINATOR.

    I WAS ABLE TO USE THIS PART TO MAKE AN ADAPTER SOCKET FOR TESTING ARCADE CRT’S.

    BASED OFF OF THIS ALSO, THE SOCKET WILL WORK AS INTENDED IN OEM /REPLACEMENT APPLICATIONS AS IT SEEMED BETTER CONSTRUCTED THAN FACTORY NECK BOARD SOCKETS I HAVE SEEN – GREAT QUALITY PRODUCT, FOR A LOW PRICE. SAVED TONS OF CASH AS OPPOSED TO BUYING ACTUAL ADAPTERS FOR THE BK PRECISION UNIT. I AM NOW ABLE TO USE THE UNIT, THAT DID NOT HAVE THE ADAPTERS FOR OTHER APPLICATIONS.

  4. Russell Dodge (verified owner)

    Worked perfect as needed 2 complete my project 2 test my GO7 crt’s as I built a BK test adaptor with this part cause adaptors r discontinued.

  5. Scott S. (verified owner)

    Drop in replacement for Sanyo 20EZV (Nintendo)

  6. delusional29 (verified owner)

    As everyone stated in the reviews. You should definitely drill out the center hole, as some tube need the clearance. Pretty easy to do.
