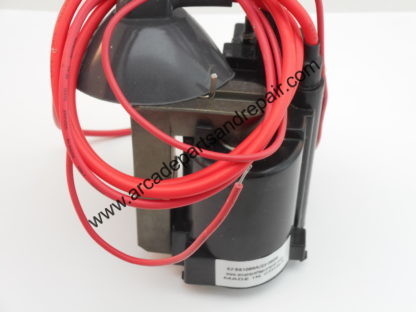

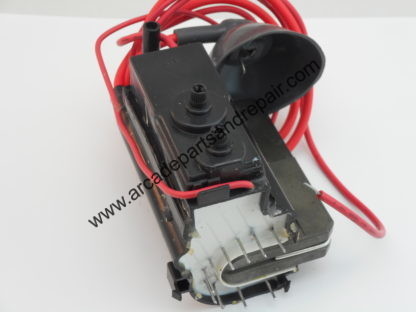

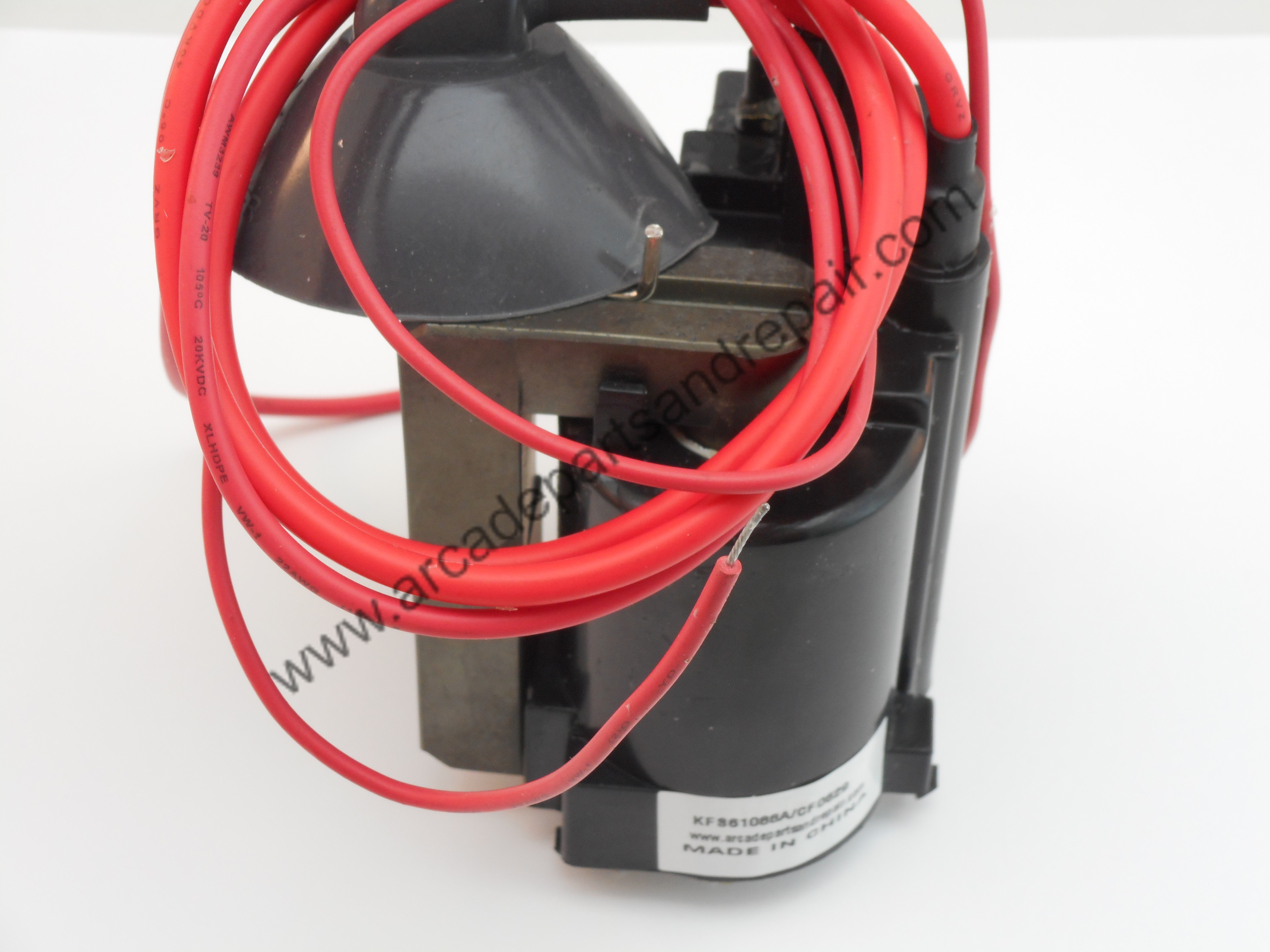

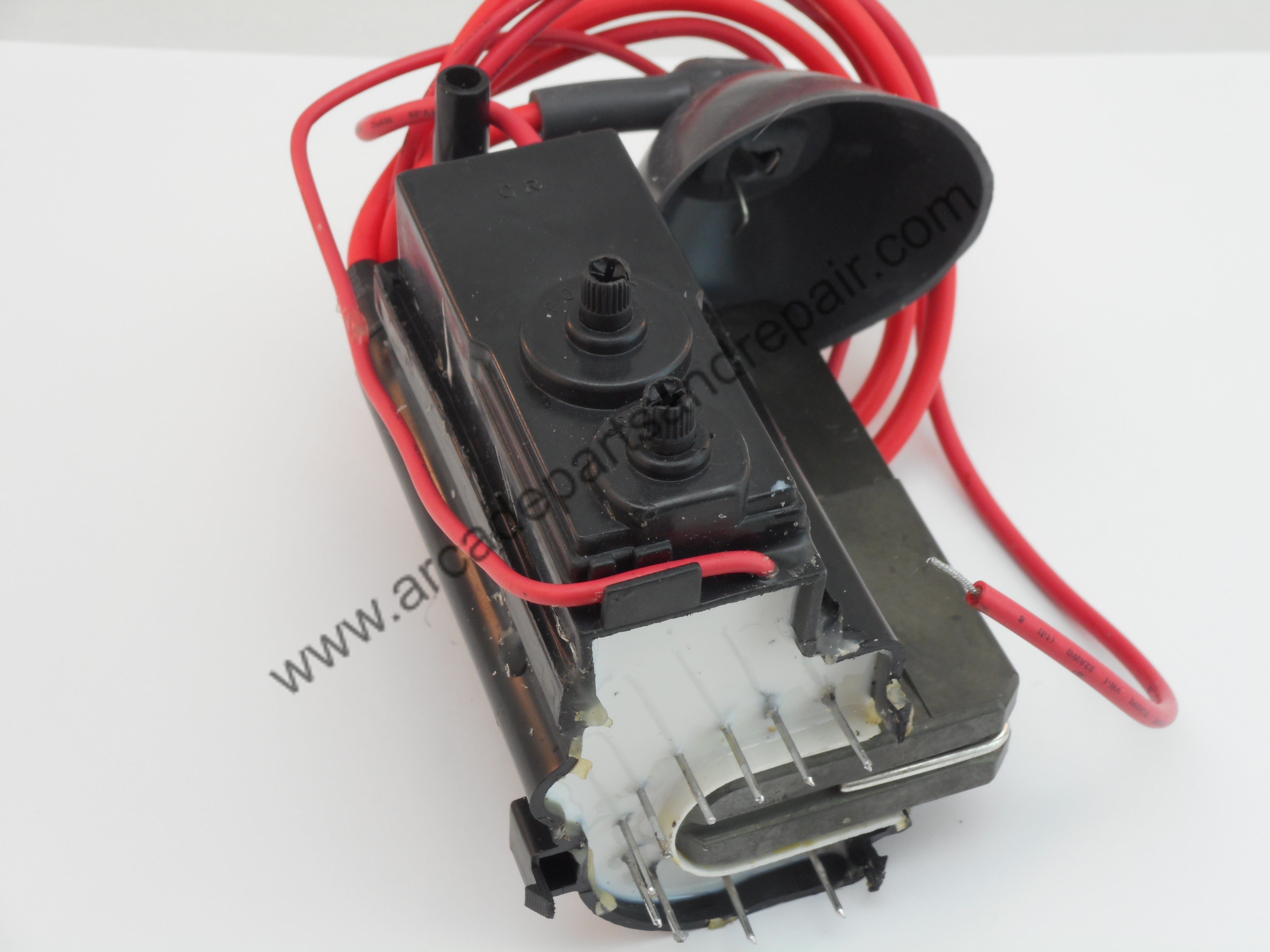

KFS-61088A Kortek / Sharp KTM-F Flyback

(2 customer reviews)

$45.00

KFS61088A Kortek / Sharp KTMF 25″, 26″, 28″ and 33″ Flyback Transformer.  This flyback works for the CF-0629 / CF0629, Samwoo SFM29A034A, Samsung 25″.  SEE INSTALLATION NOTES IN FULL DESCRIPTION.

Out of stock

Description

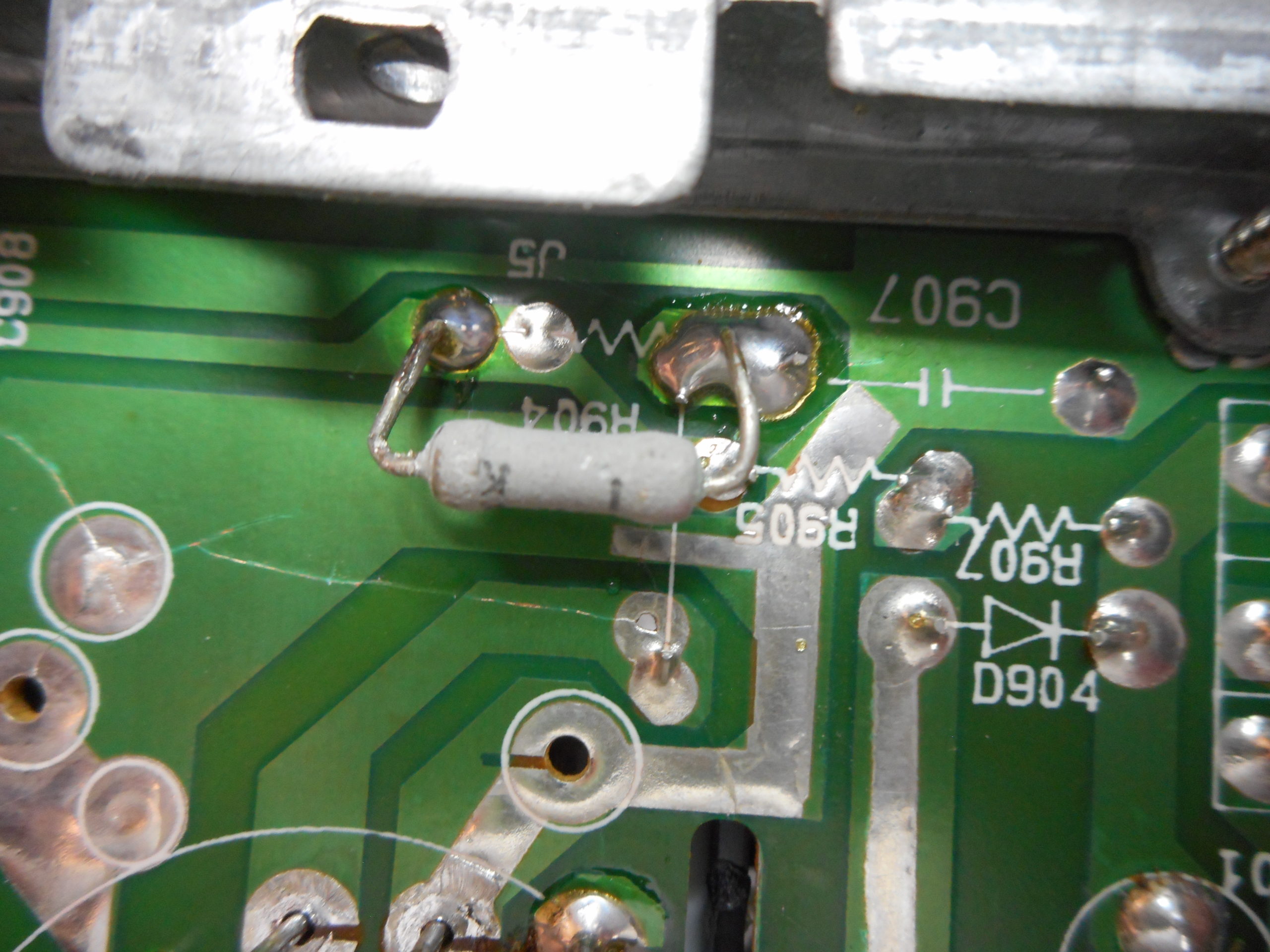

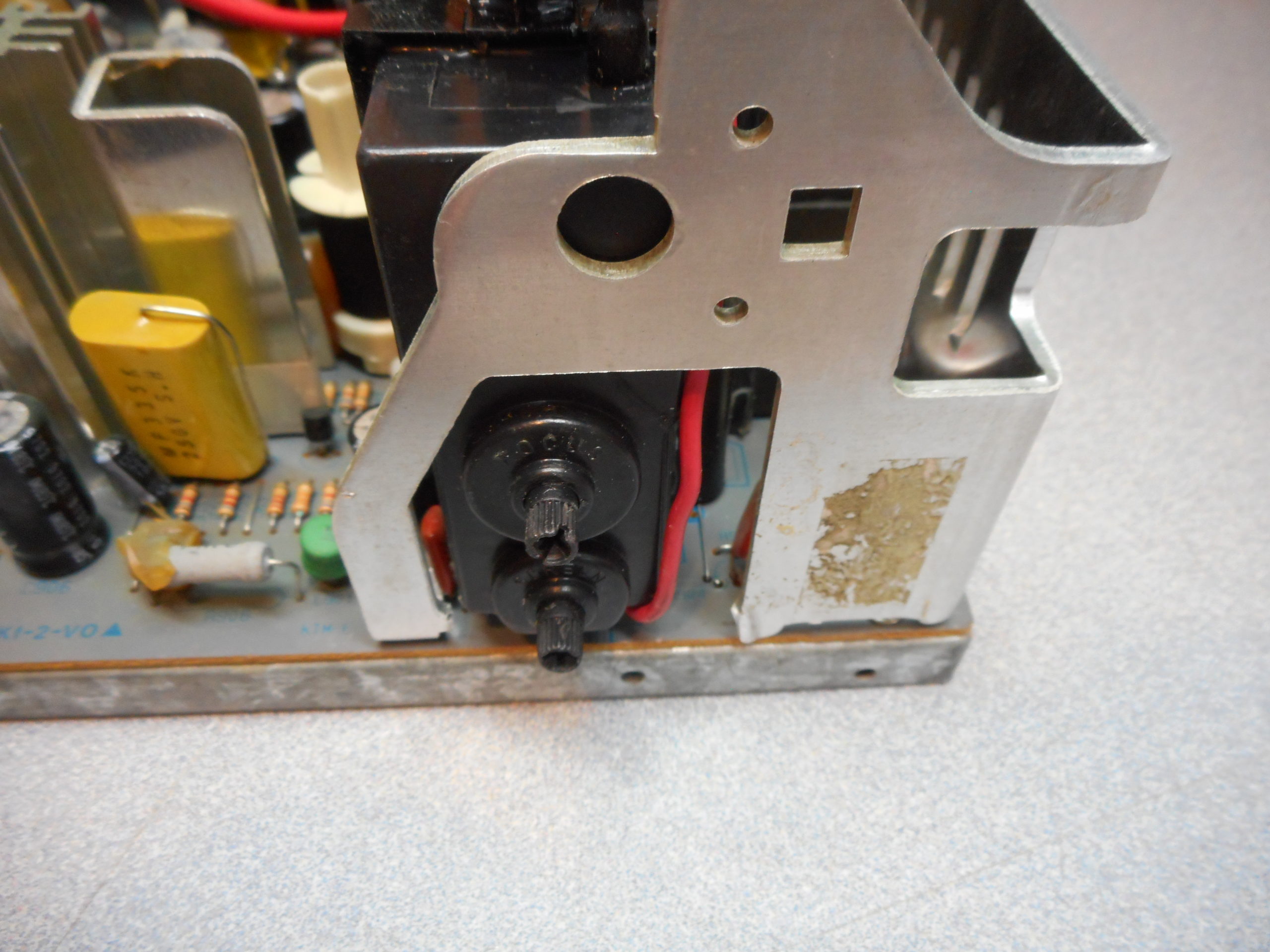

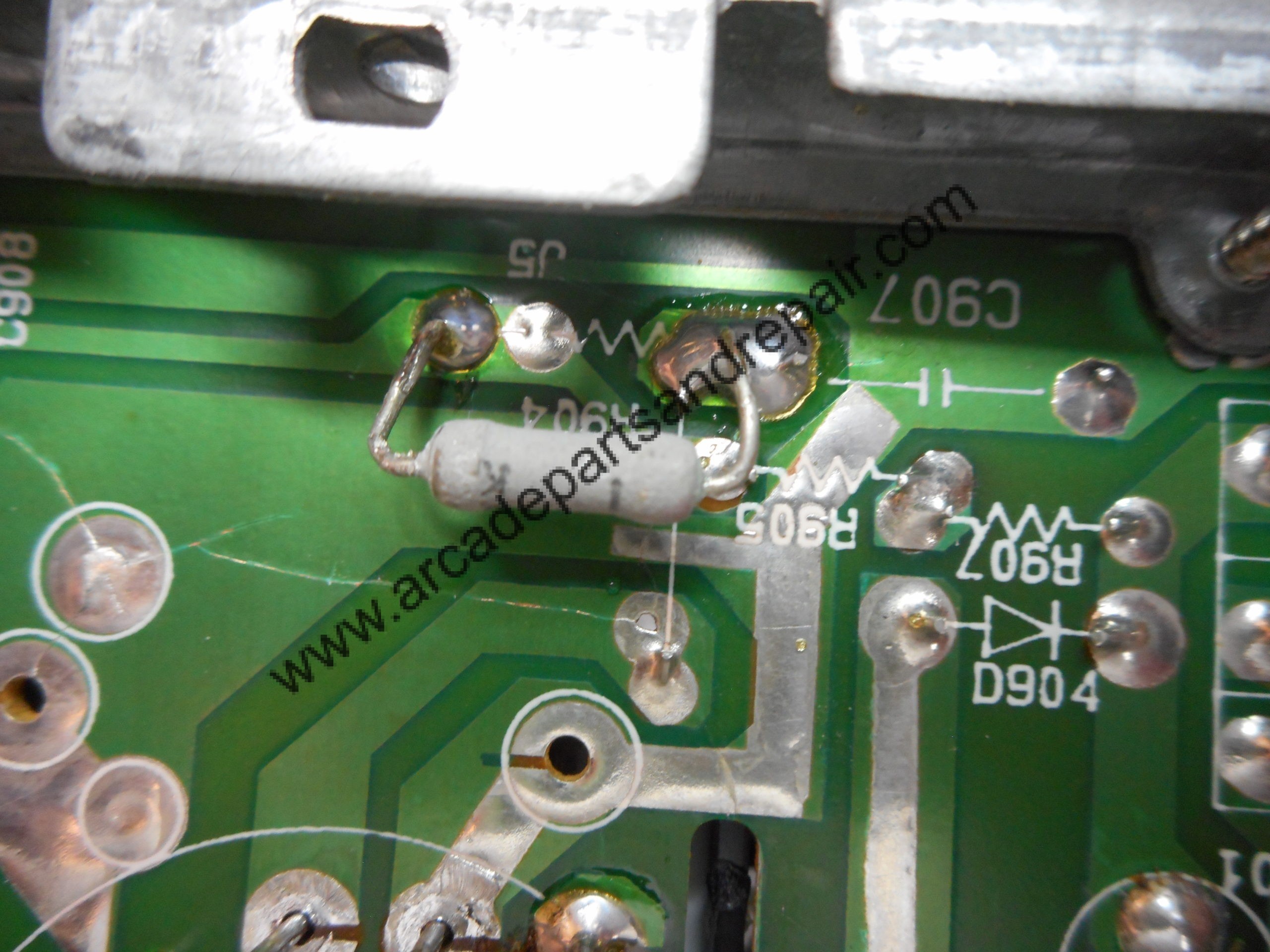

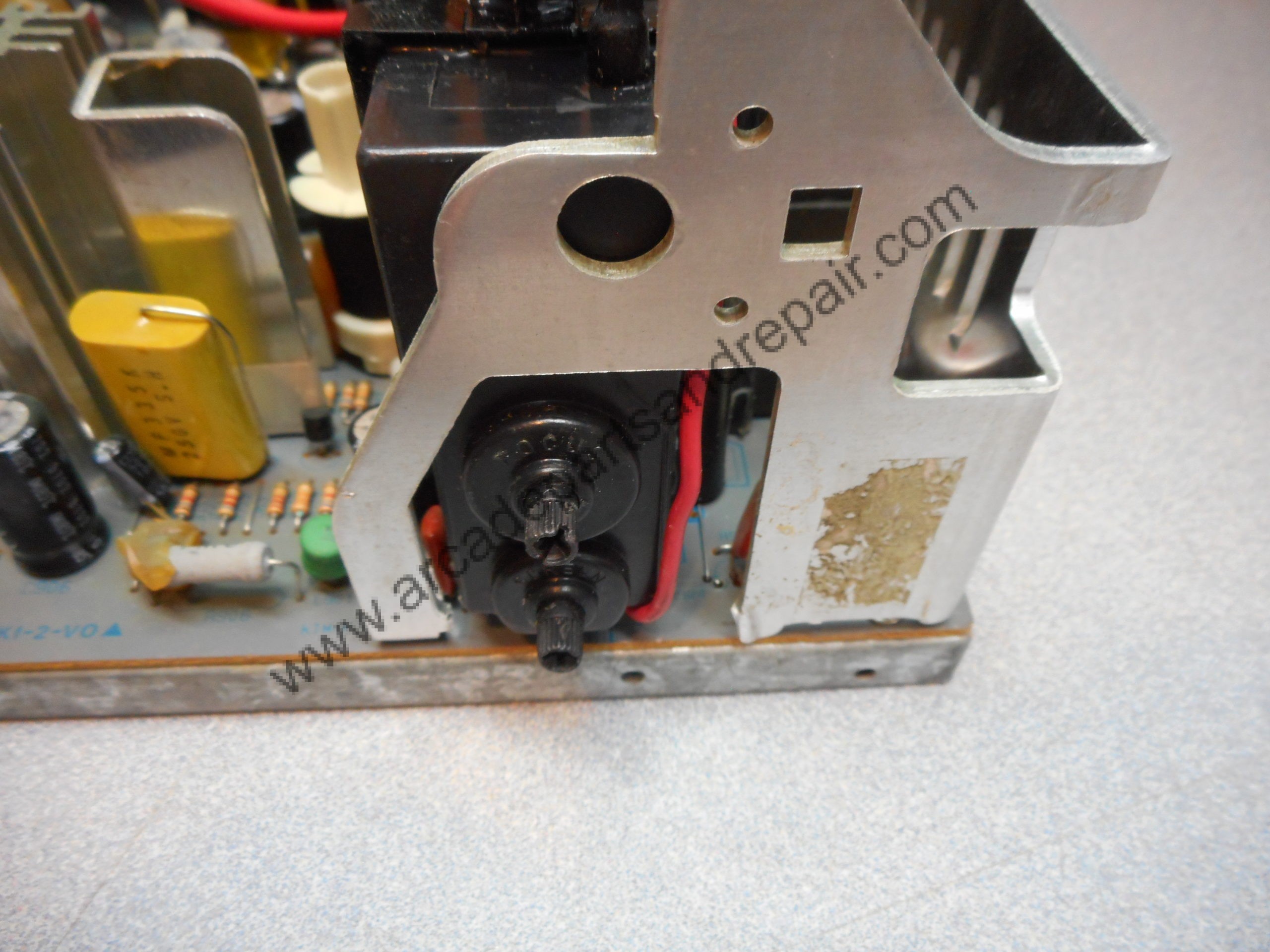

KFS61088A Kortek / Sharp KTMF 25″, 26″, 28″ and 33″ monitor Flyback Transformer.  This flyback works for the CF-0629 / CF0629, Samwoo SFM29A034A, Samsung 25″.  INSTALLATION NOTES:  This aftermarket flyback bobbin is slightly larger so to use it you will need to move R904 to the solder side of the chassis and possibly C908, but when i installed one i didn’t need to move the C908.  You will also need to cut and remove the chassis frame that is below the focus block.  These changes are quite simple but if you don’t feel comfortable doing them then please don’t purchase this flyback.  Pictures of these changes are on the site.

Additional information

Weight 1.250 lbs
Dimensions 5 × 4 × 4 in

2 reviews for KFS-61088A Kortek / Sharp KTM-F Flyback

  1. Anthony Carpenter (verified owner)

    Worked perfectly for my KTMF-33 chassis. Shipped really quick as well. Installation notes were correct, I did have to relocate r904 to the solder/bottom side of the board. I was fortunate and didn’t have to cut the chassis frame on mine, but that seems simple enough to do if needed.

  2. Christopher Eyles

    I need one of these and can’t find one anywhere…
