F5024-AKJ Sanyo 20EZV Flyback

(9 customer reviews)

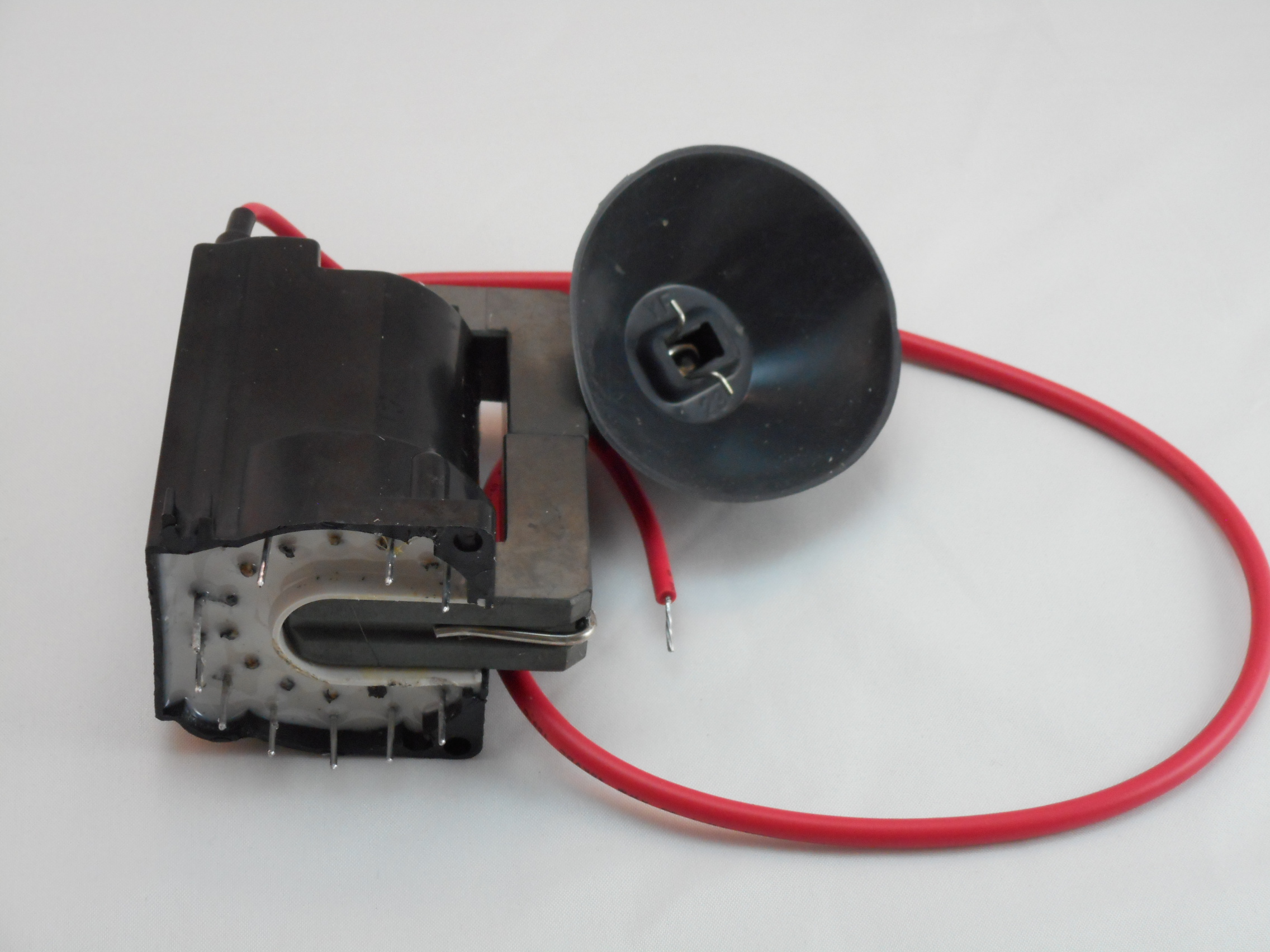

F5024-AKJ Sanyo 20EZV Flyback Transformer.  New Nintendo aftermarket 99-160669 T452 flyback.

116 in stock


F5024-AKJ Sanyo 20EZV Flyback Transformer.  New Nintendo aftermarket 99-160669 T452 flyback.  i have not installed this flyback in a sanyo 20-Z2AW but the forums list it as correct for the Z2AW F5039-DCB, F5024-AJA, F5024-BBZ and Sanyo 18-Z2AB.  We have had customers install this flyback on the 14″ EZZ chassis to replace the F5024-AAA flyback successfully.

Additional information

Weight .75 lbs
Dimensions 5 × 4 × 4 in

9 reviews for F5024-AKJ Sanyo 20EZV Flyback

  1. Matt Majewski (verified owner)

    Perfect fit for my Sanyo 20ez and works great!

  2. sean dotson (verified owner)

    Easy to install… And works perfectly… Nice and quiet fly back

  3. Steve (verified owner)

    Perfect replacement to keep my Sanyo 20EZ running. Great fit and easy replacment.

  4. Mike (verified owner)

    Good replacement for OEM part. Just remember to transplant the focus and screen controls from your old part.

  5. TobyKeith (verified owner)

    Installed this last week and I finally have a working playchoice-10 again! No Brainer for anyone with blown flyback on Sanyo20EZ chassis!

  6. Jared Bresee (verified owner)

    This is quiet and smooth as butter! I will always replace the flyback on my Sanyos. This is as good and maybe better than the orginal I dare say. These have a lot of caps so might as well do the FB if your chassie has issues, you won’t regret it!

  7. cklinejr (verified owner)

    Great flyback replacement for the 20ez.

  8. Jess Askey (verified owner)

    Works great.. let’s find a way to mount that focus control onto the flyback now!

  9. Bill Darter (verified owner)

    Used this to replace the flyback on sanyo 20ezv. Original f5024-alw
    after replacement goes into high voltage shutdown. All resistors in the shutdown trip circuit checked okay replaced caps in circuit. Change r 474 from 15K to 20K. That brought voltage at HV shut down trip point from 12.3 volts to 11.7 volts B+ voltage at 108 v and high voltage at 23 KV. Note some of the plastic tabs on the bottom of the flyback have to be cut off. No holes in circuit board for them to go into. Focus and g2 mounting on original flyback can be cut off with a hacksaw. Then mounted to the side of the metal bracket next to the flyback with two self-tapping screws. Puts the controls almost exactly in their original position.
