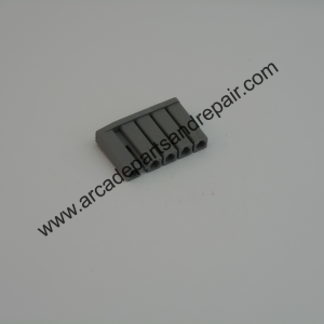

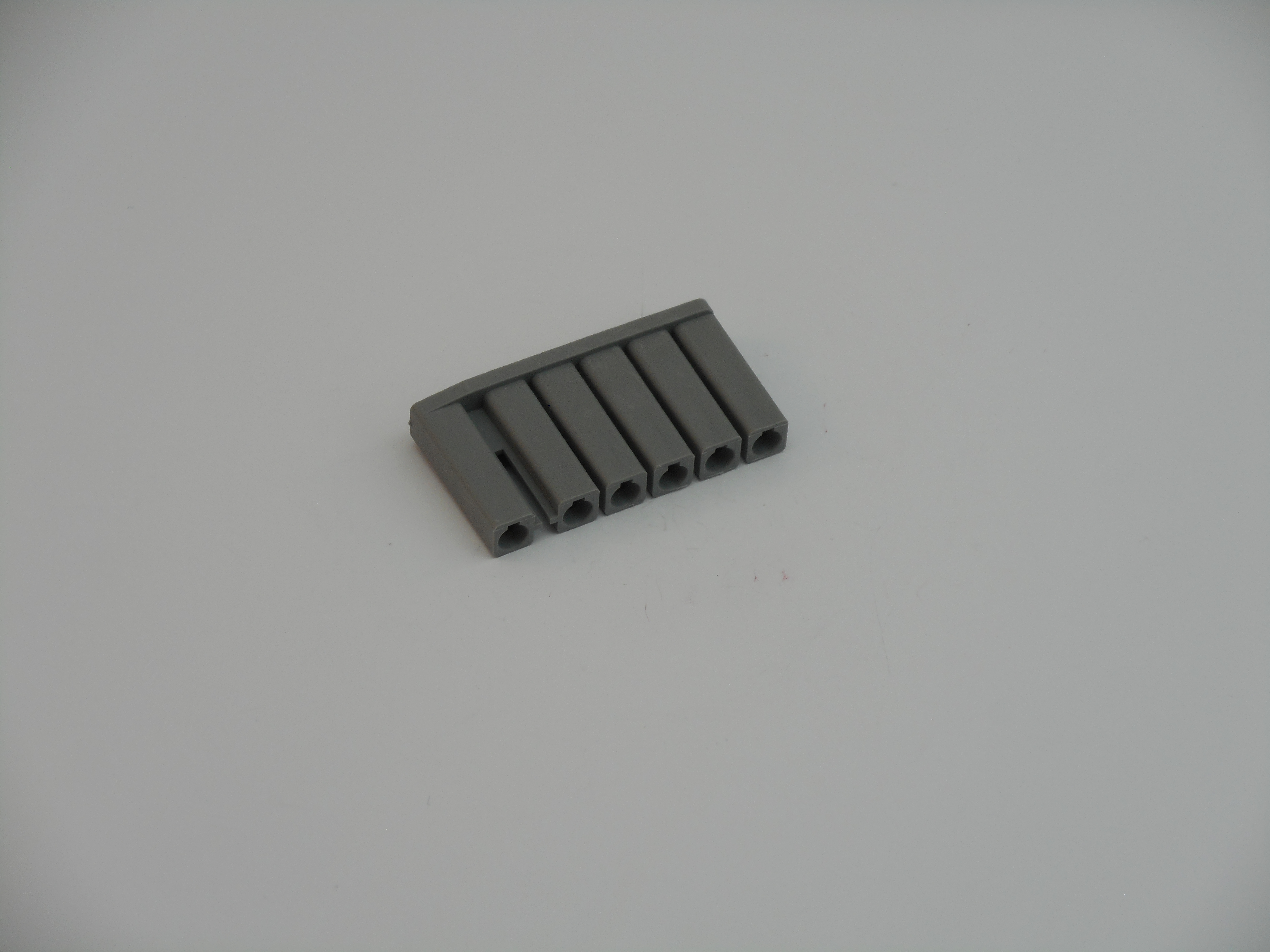

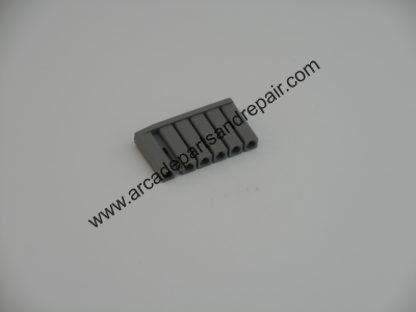

6-Pin Plug Housing 2.36mm (CP1005)

Name: 6-Pin Plug Housing 2.36mm (CP1005)
SKU: 10830
Price: 1.91 USD
Availability: InStock

$1.91

6-Pin Pole Plug Housing connector 2.36mm / .093 (8mm x 6mm) (CP1005). Used in many applications such as monitor yoke, degauss, G2 and other connectors. These connectors are polarized by how their positions are spaced and these have the first position all spaced at 8mm and every subsequent position is spaced / pitch at 6mm. Pins sold separately.

2783 in stock

Add to Wishlist

Categories: 8mm X 6mm Spacing Connectors, Connectors / Sockets / Pins, Miscellaneous Monitor Connectors, Monitor Parts, Monitors, Pinball Kits / Parts, Pinball Parts

Description

6-Pin Pole Plug Housing connector 2.36mm / .093 (8mm x 6mm) (CP1005). These have almost 50% higher current rating then any other connectors of this type that i have seen on the market. Used in many applications such as monitor yoke, degauss, G2 and other connectors. These connectors are polarized by how their positions are spaced and these have the first position all spaced at 8mm and every subsequent position is spaced / pitch at 6mm. Ratings on these connectors are Current 7 Amp, Voltage 250V AC / DC, Wire Gauge 18 -24 AWG, Material UL94V-2, Withstand Voltage 1500V AC/1 minute. Housing overall Height is 20.3mm and base width is 37.7mm and base length is 7.5mm and the header pin diameter is 2.36mm. Pins sold separately.
