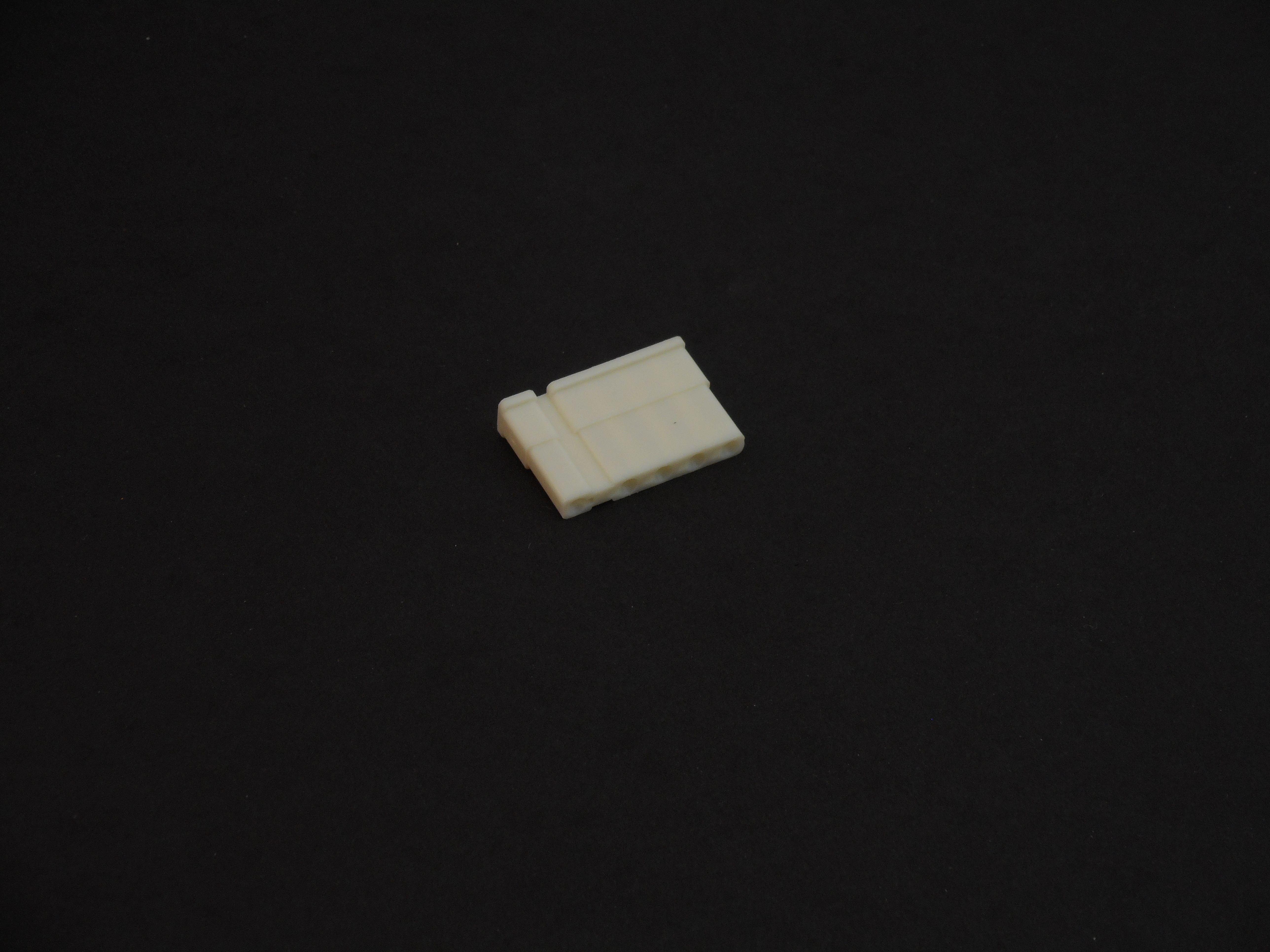

5-Pin Plug Housing 1.55mm (CN1004)

(3 customer reviews)

$0.86

5-Pin Pole Plug Housing connector 1.55mm / .062  (7.5mm x 5mm) (CN1004).  Used in many applications such as monitor yoke, degauss, G2 and other connectors including the Wells Gardner K7000.  These connectors are polarized by how their positions are spaced and these have the first position all spaced at 7.5mm and every subsequent position is spaced / pitch at 5mm.  Pins sold separately.

2680 in stock

Description

5-Pin Pole Plug Housing connector 1.55mm / .062  (7.5mm x 5mm) (CN1004).  Used in many applications such as monitor yoke, degauss, G2 and other connectors including the Wells Gardner K7000.  This is the exact replacement housing for the Electrohome G07 Neck PCB connector on the main chassis.  These have almost 50% higher current rating then any other connectors of this type that i have seen on the market.  These connectors are polarized by how their positions are spaced and these have the first position all spaced at 7.5mm and every subsequent position is spaced / pitch at 5mm.  Ratings on these connectors are Current 5 Amp, Voltage 250V AC / DC, Wire Gauge 20-26 AWG, Material UL94V-0/V-2, Withstand Voltage 1500V AC/1 minute.  Connector overall Height is 18.9mm and overall width is 27.5mm and overall Depth is 6.8mm.  Pins sold separately.

Additional information

Weight .015625 lbs
Dimensions 1 × 1.375 × .25 in

3 reviews for 5-Pin Plug Housing 1.55mm (CN1004)

  1. [email protected] (verified owner)

    Really nice surprise to find this connector available. I needed it for a replacement monitor chassis, and had no idea what it was called or where to find it. Great price, plus they have the pins available, too.

  2. Chris Pehl (verified owner)

    This plug fits Ceronix 1492 (and possibly others) yoke to board connector perfectly. Very good quality of material. It uses CN1006 for pins. I ordered more just to have on hand.

  3. Jeff Roenning (verified owner)

    Better than original replacement for the G07!
