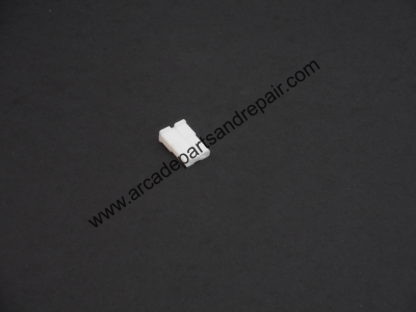

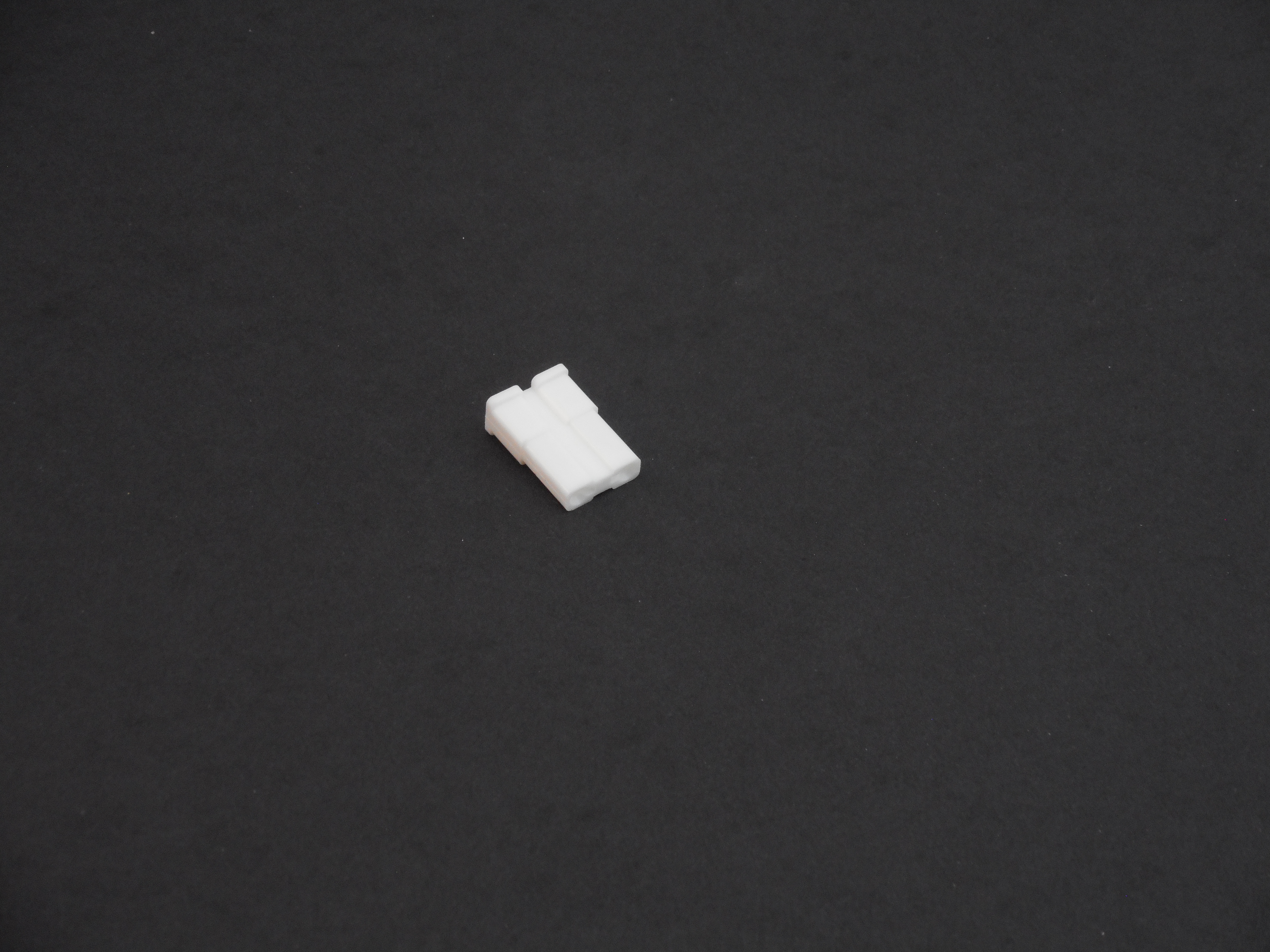

2-Pin Plug Housing 1.55mm (CN1001)

$0.35

2-Pin Pole Plug Housing connector 1.55mm / .062  (7.5mm x 5mm) (CN1001).  Used in many applications such as monitor yoke, degauss, G2 and other connectors including the Wells Gardner K7000.  These connectors are polarized by how their positions are spaced and these have the first position all spaced at 7.5mm and every subsequent position is spaced / pitch at 5mm.  Pins sold separately.

969 in stock (can be backordered)

Description

2-Pin Pole Plug Housing connector 1.55mm / .062  (7.5mm x 5mm) (CN1001).  Used in many applications such as monitor yoke, degauss, G2 and other connectors including the Wells Gardner K7000.  These have almost 50% higher current rating then any other connectors of this type that i have seen on the market.  These connectors are polarized by how their positions are spaced and these have the first position all spaced at 7.5mm and every subsequent position is spaced / pitch at 5mm.  Ratings on these connectors are Current 5 Amp, Voltage 250V AC / DC, Wire Gauge 20-26 AWG, Material UL94V-0/V-2, Withstand Voltage 1500V AC/1 minute.  Connector overall Height is 18.9mm and overall width is 12.5mm and overall Depth is 6.8mm.  Pins sold separately.

Additional information

Weight .015625 lbs
Dimensions 1 × .75 × .25 in
