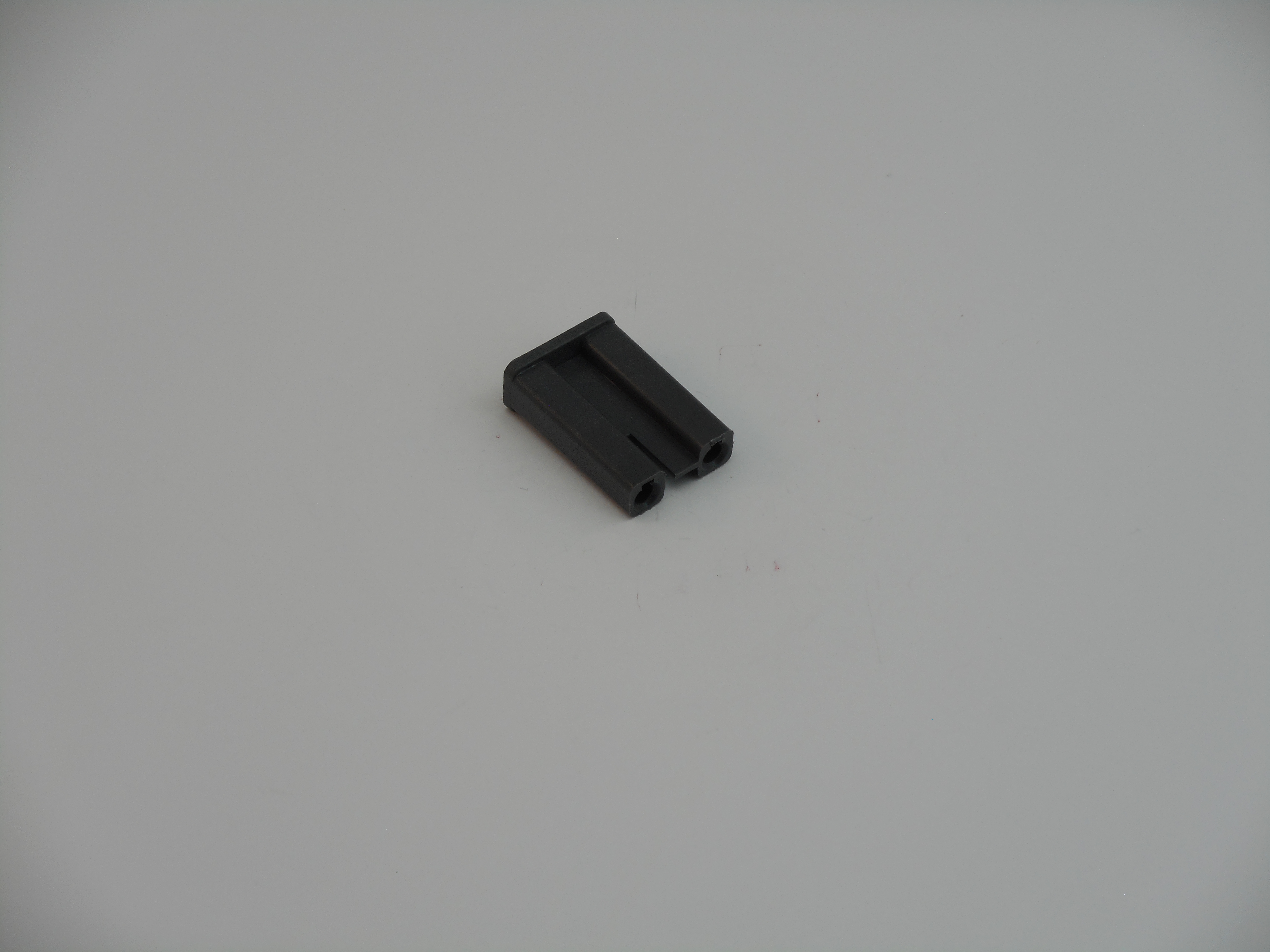

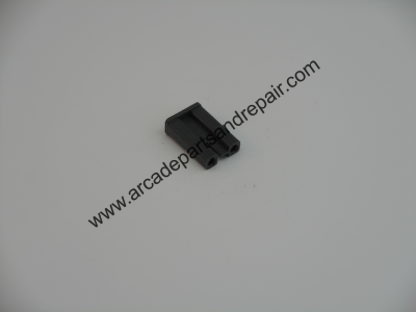

2-Pin Plug Housing 2.36mm (CM1001)

(2 customer reviews)

$0.50

2-Pin Pole Plug Housing connector 2.36mm / .093  (10mm x 8mm) (CM1001).  Used in many applications such as monitor yoke, degauss, G2 and other connectors.  These have almost 50% higher current rating then any other connectors of this type that i have seen on the market.  Pins sold separately.

1458 in stock

Description

2-Pin Pole Plug Housing connector 2.36mm / .093  (10mm x 8mm) (CM1001).  Used in many applications such as monitor yoke, degauss, G2 and other connectors.  These have almost 50% higher current rating then any other connectors of this type that i have seen on the market.  This connector is used on the Wells Gardner K7400, K7500, U2000 and U5000 arcade monitor chassis on the Horizontal Yoke connector that connects at location CN206 of the PCB and also used on the Wells Gardner K7000 Degaussing connector.  These connectors are polarized by how their positions are spaced and these have the first position all spaced at 10mm and every subsequent position is spaced / pitch at 8mm.  Ratings on these connectors are Current 7 Amp, Voltage 250V AC / DC, Wire Gauge 18 -24 AWG, Material UL94V-2, Withstand Voltage 1500V AC/1 minute.  Connector overall Height is 22.2mm and overall width is 7.5mm and overall length is 16mm.  Pins sold separately.

Additional information

Weight .015625 lbs
Dimensions 1 × 1 × .25 in

2 reviews for 2-Pin Plug Housing 2.36mm (CM1001)

  1. Charlie Pyne (verified owner)

    Works great. Fast delivery.

  2. Darren E (verified owner)

    I got a newer gen 19″ crt monitor that only had pins for the power. Peter helped me pick out this plug housing which was the exact fit.
