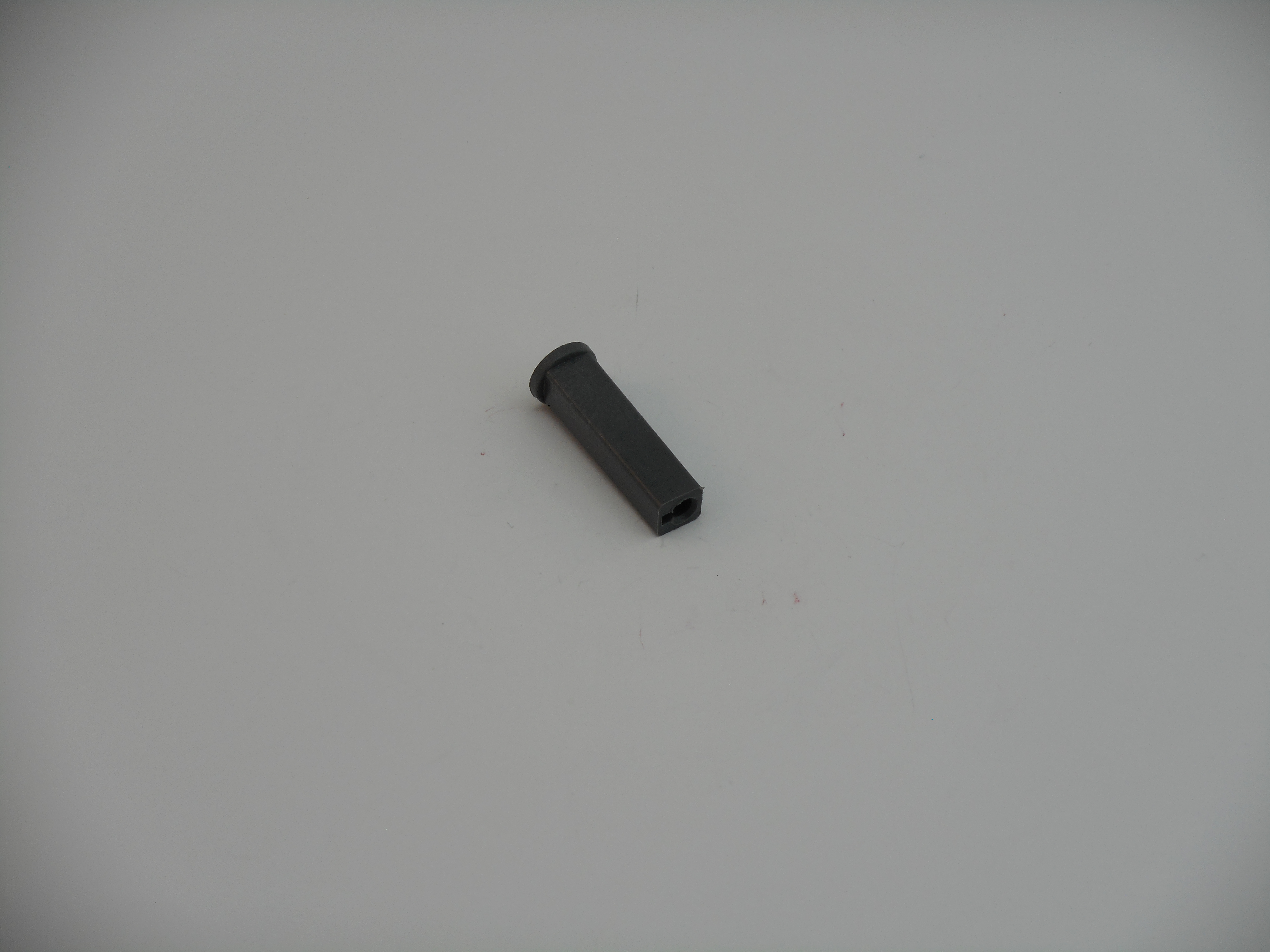

1-Pin Plug Housing 2.36mm (CM1000)

$0.40

1-Pin Pole Plug Housing connector 2.36mm / .093  (10mm x 8mm) (CM1000).  These have almost 50% higher current rating then any other connectors of this type that i have seen on the market.  Used in many applications such as monitor yoke, degauss, G2 and other connectors.  These connectors are polarized by how their positions are spaced and these have the first position all spaced at 10mm and every subsequent position is spaced / pitch at 8mm.  Pins sold separately.

1074 in stock

Description

1-Pin Pole Plug Housing connector 2.36mm / .093  (10mm x 8mm) (CM1000).  Used in many applications such as monitor yoke, degauss, G2 and other connectors.  These have almost 50% higher current rating then any other connectors of this type that i have seen on the market.  These connectors are polarized by how their positions are spaced and these have the first position all spaced at 10mm and every subsequent position is spaced / pitch at 8mm.  Ratings on these connectors are Current 7 Amp, Voltage 250V AC / DC, Wire Gauge 18 -24 AWG, Material UL94V-2, Withstand Voltage 1500V AC/1 minute.  Connector overall Height is 22.2mm and overall width is 7.5mm and overall length is 7.5mm.  Pins sold separately.

Additional information

Weight .015625 lbs
Dimensions 1 × .25 × .25 in
