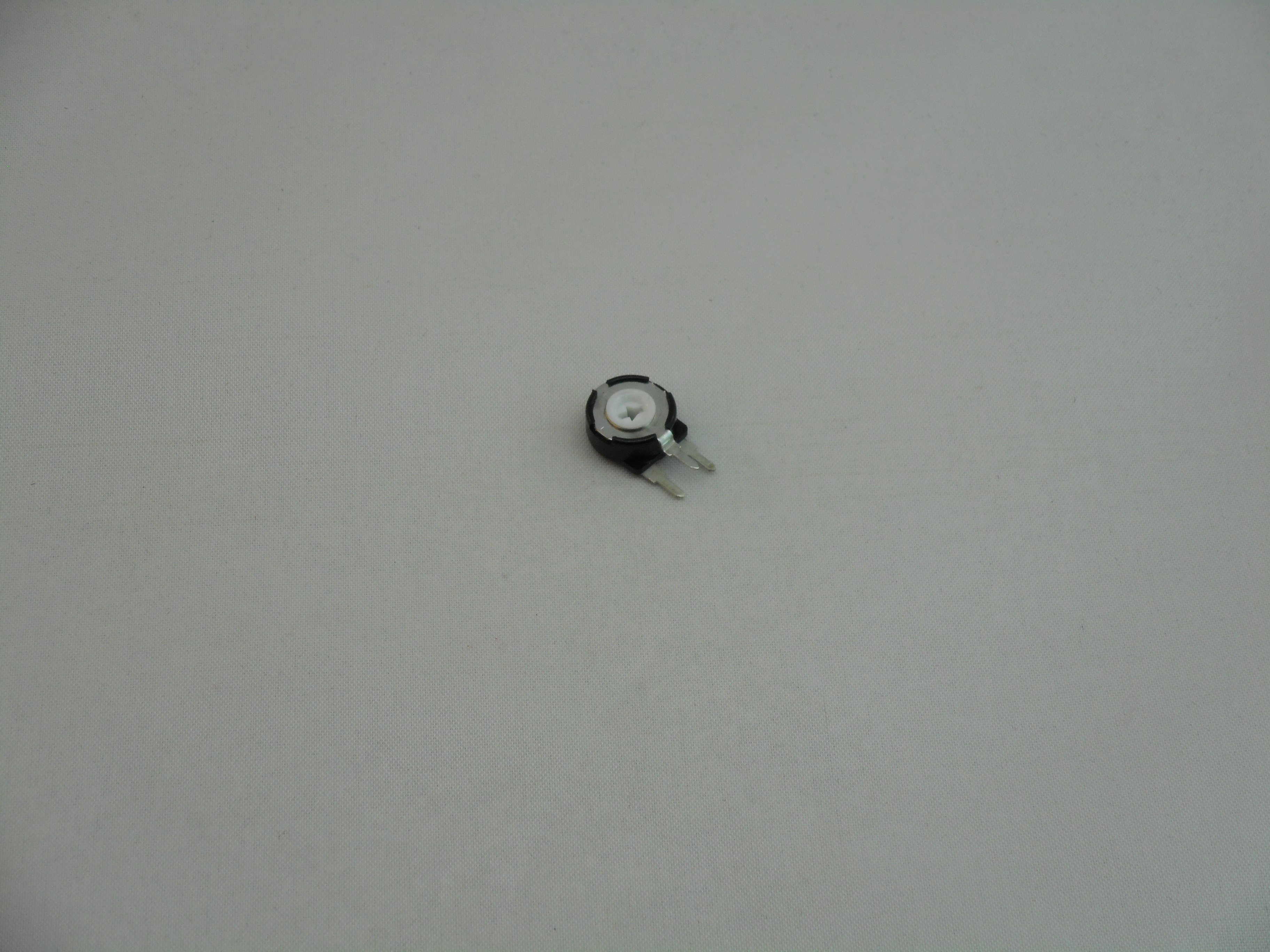

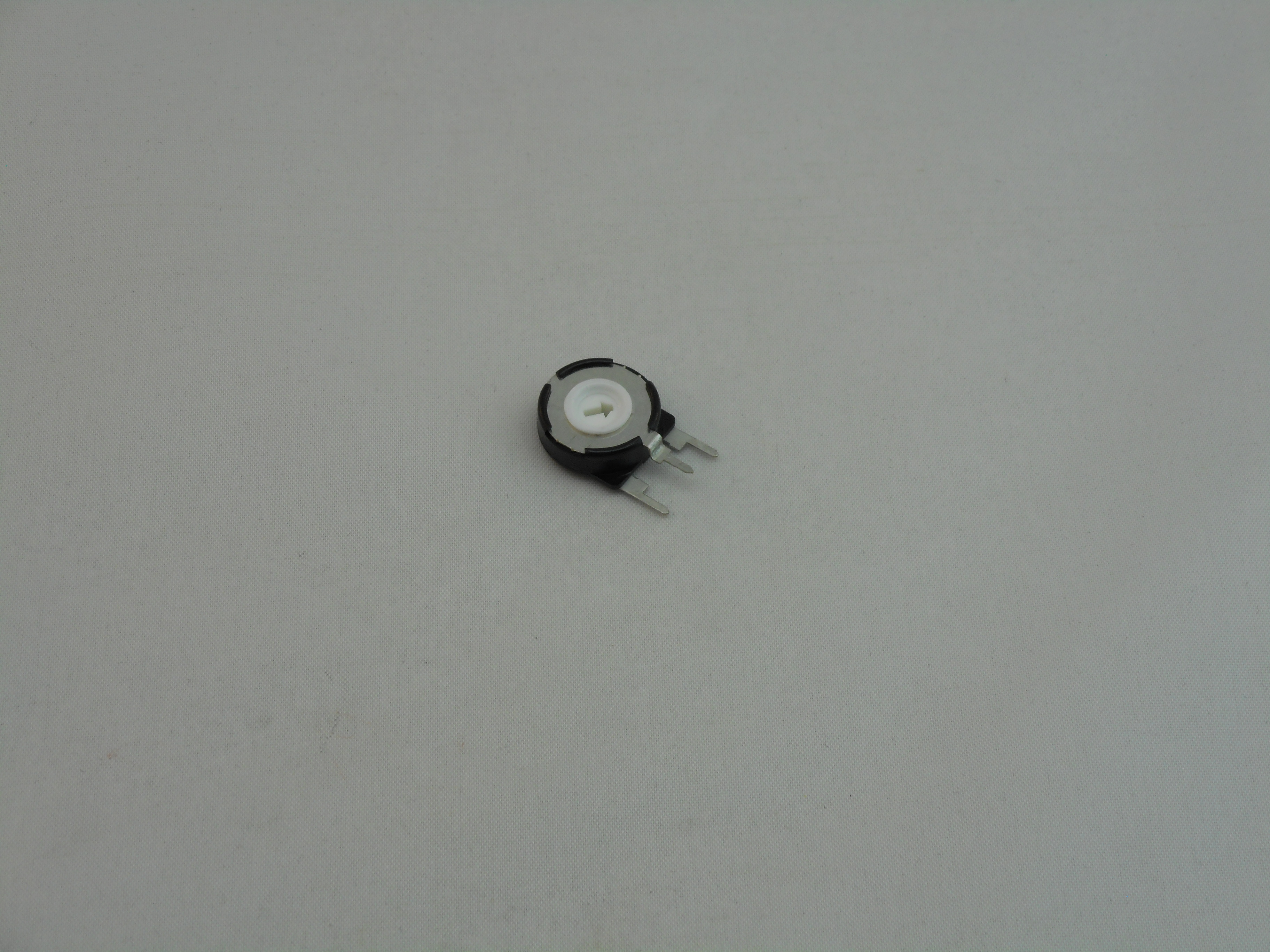

500 OHM TRIMMER POTENTIOMETER (P1067)

(3 customer reviews)

$2.75

500 OHM .15 Watt 20% Carbon TRIMMER POTENTIOMETER (P1067).  Vertical mount side adjust POT.  PCB layout is 5mm x 2.5mm.

2880 in stock

Description

500 OHM .15 Watt 20% Carbon TRIMMER POTENTIOMETER (P1067).  Vertical mount side adjust POT.  PCB layout is 5mm x 2.5mm.  Used on Wells Gardner K4600, K4700, K4800 and K4900 Series monitors for VR401 and VR402 and many other monitor chassis and other applications.  This pot can also be used to replace the 470 Ohm neck pcb trimmer pots on the Hantarex MTC900 at RV4, RV5,RV6,RV7,RV8 and RV9.  These are the exact fit for the application listed above but can also be used in many other applications where this value of Pot is needed.

Additional information

Weight .015625 lbs
Dimensions .75 × .5 × .25 in

3 reviews for 500 OHM TRIMMER POTENTIOMETER (P1067)

  1. delusional29 (verified owner)

    These were drop in replacements for the neckboard pots on my K4900 monitor at VR401 and VR402. They are high quality pots and I LOVE THEM. WAY better than the old originals!

  2. Smoke-Inator (verified owner)

    My centipede thanks you, replaced neck pots and now have all my colors back

  3. Robert Lackey (verified owner)

    Great product just what I need to repair my monitor
