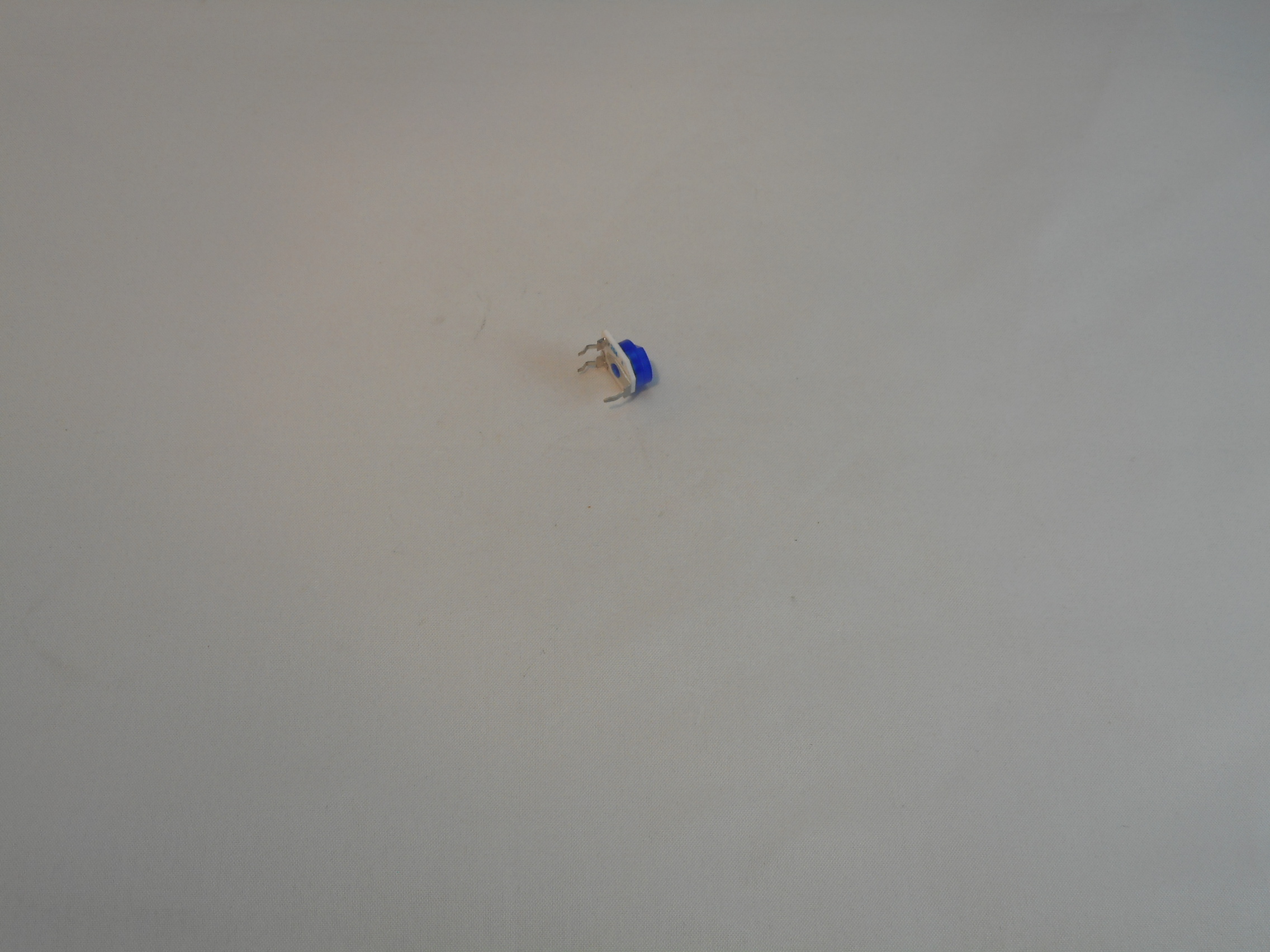

2K OHM TRIMMER POTENTIOMETER (P1012)

$2.25

2K OHM 1/2 Watt 25% Cermet TRIMMER POTENTIOMETER (P1012).  Horizontal mount top adjust POT.  PCB layout is 10mm x 5mm.

1758 in stock

Description

2K OHM 1/2 Watt 25% Cermet TRIMMER POTENTIOMETER (P1012).  Horizontal mount top adjust POT.  PCB layout is 10mm x 5mm.  Used on Wells Gardner K7000 Series Black Level Pot at VR102 on the remote board (another model available for mounting on main PCB of the K7000) and also VR8 for the high voltage shutdown pot and many other monitor chassis and other applications.  These pots are also on other wells gardner remote boards such as K7500, K7400, U2000, U5000 and Horizontal Hold pot on them at VR701.  These are the exact fit for the application listed above but can also be used in many other applications where this value of Pot is needed.

Additional information

Weight .015625 lbs
Dimensions .5 × .5 × .5 in
