Description

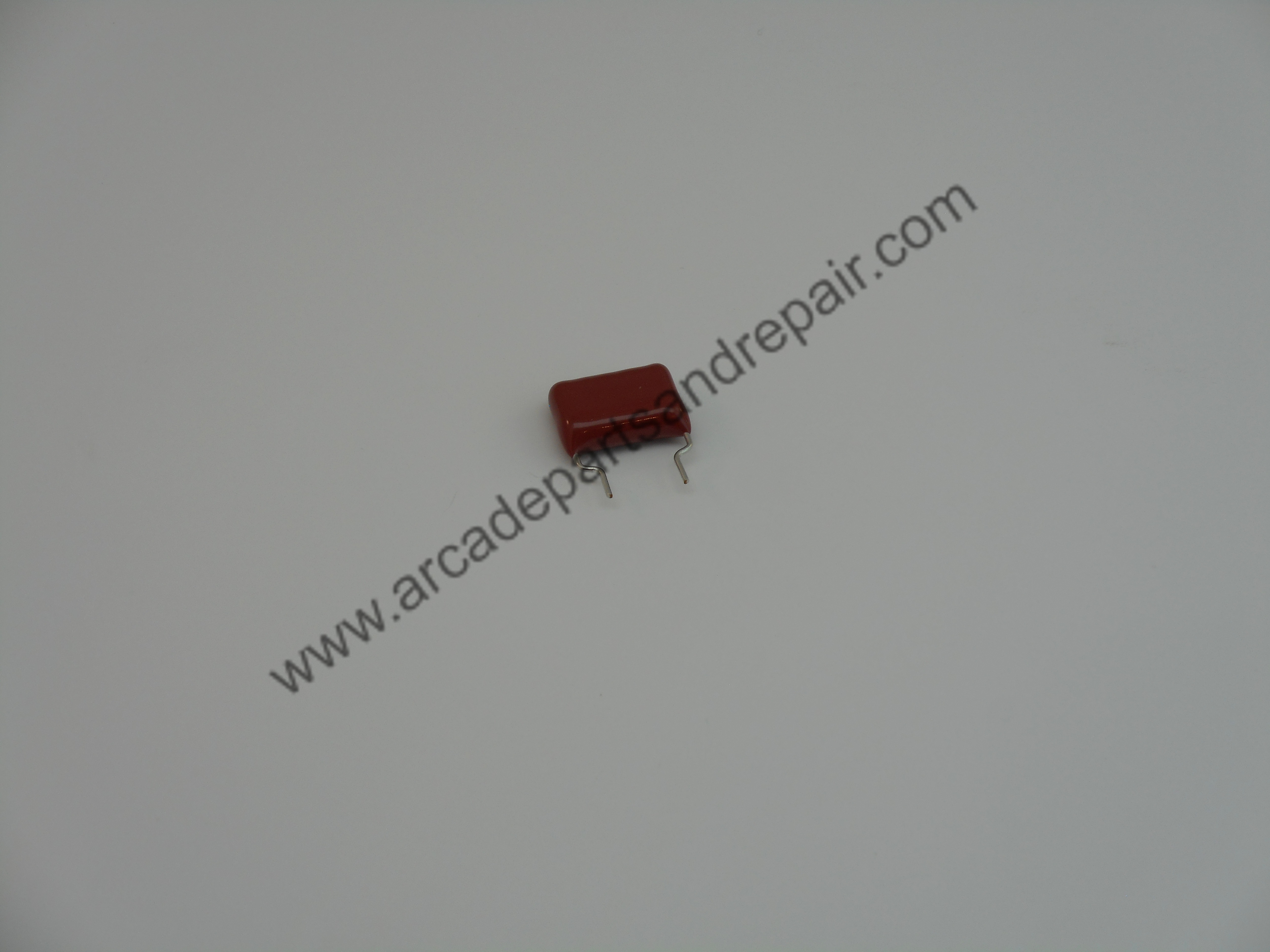

.0015uF 2Kv PP Metallized Film Capacitor 5% tolerance 10mm lead spacing and is higher rated and better quality then the original capacitor (MC1064). This is used on the Electrohome G07 chassis at location C532 and can be used in many other locations that require this value of capacitor. This capacitor is the same as 1500pF 2000V and 1.5nF 2000V. This replaces the original 1500pF 1500v, 152J 1.5Kv, QFZ0082-152. All capacitors you can always use a higher voltage than what’s required, but never use a lower voltage when replacing capacitors.
delusional29 (verified owner) –
Got this to have on hand as a replacement part on my G07 chassis.
Yasha Neparko (verified owner) –
This cap was an integral part of restoring full width on our 13″ G07 FBO in a Defender cocktail. Flyback had been replaced and playable screen area was not utilizing the full width. Installed this capacitor in location C532 in the Horizontal deflection circuit. Also required a 0.002 uF film capacitor in location C532 (also sourced from APAR). Now we have full screen width!
