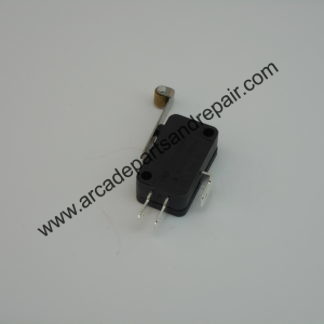

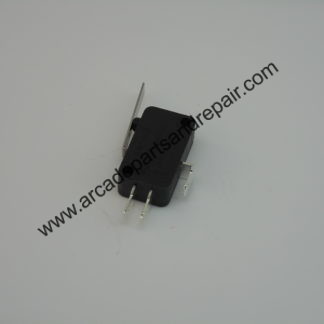

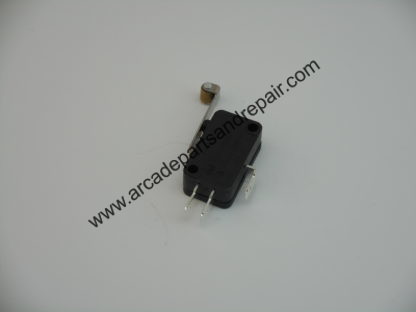

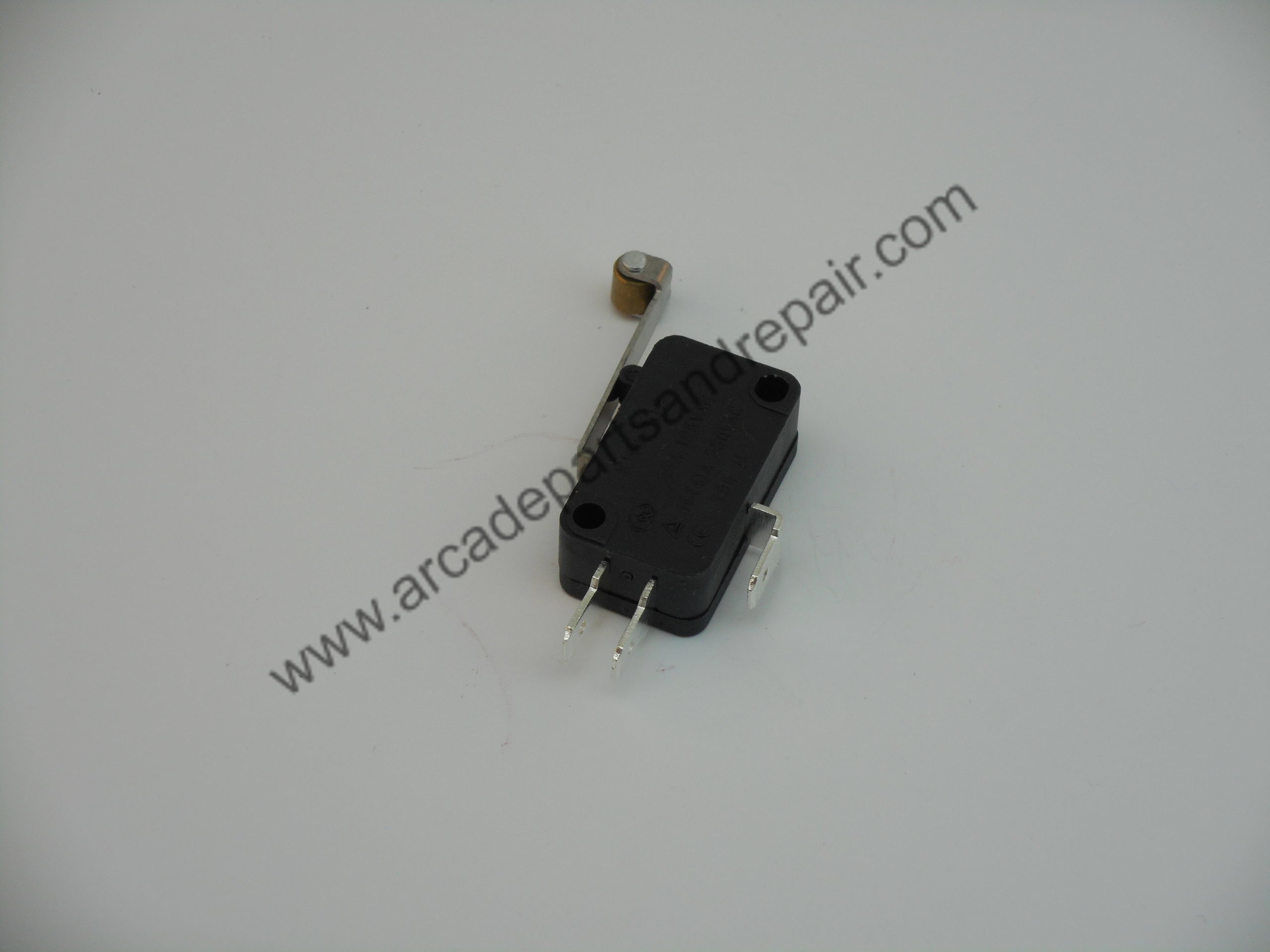

Nintendo Button Microswitch W/Roller Lever (SW1017)

$4.00

Nintendo Control Panel Button Microswitch W/Roller Lever (SW1017).  These arcade Micro Switches were made specifically to replace the original Omron switches and to match them exactly in size, feel and operation like the original switches.  These micro switches have .187 terminals and operating force of 100GF (gram force) and length from center of screw hole to end of lever is 39mm / 1.535 inches.

957 in stock

Description

Nintendo Control Panel Button Microswitch W/Roller Lever (SW1017).  These arcade Micro Switches were made specifically to replace the original Omron switches and to match them exactly in size, feel and operation like the original switches TWG-03-12, TKGU-23-10, VL105 L2 and TKG-23-10.  These micro switches have .187 terminals and operating force of 100GF (gram force) and length from center of screw hole to end of lever is 39mm / 1.535 inches.  These roller lever micro switches are DC (3A / 30VDC) and AC (16A / 250VAC – 20A / 125VAC) rated so they can be used for many other arcade / pinball applications in buttons, joysticks and other applications where this switch is needed.  These are pretty commonly found on Nintendo Donkey Kong, Donkey Kong Jr (Junior), Donkey Kong 3, VS. Unisystems, Mario Bros, the Duck switch on Super Punchout and Popeye control panels.

Additional information

Weight .015625 lbs
Dimensions 1.5 × 1 × .5 in
