Nintendo Button / Joystick Microswitch W/Lever (SW1016)

$3.75

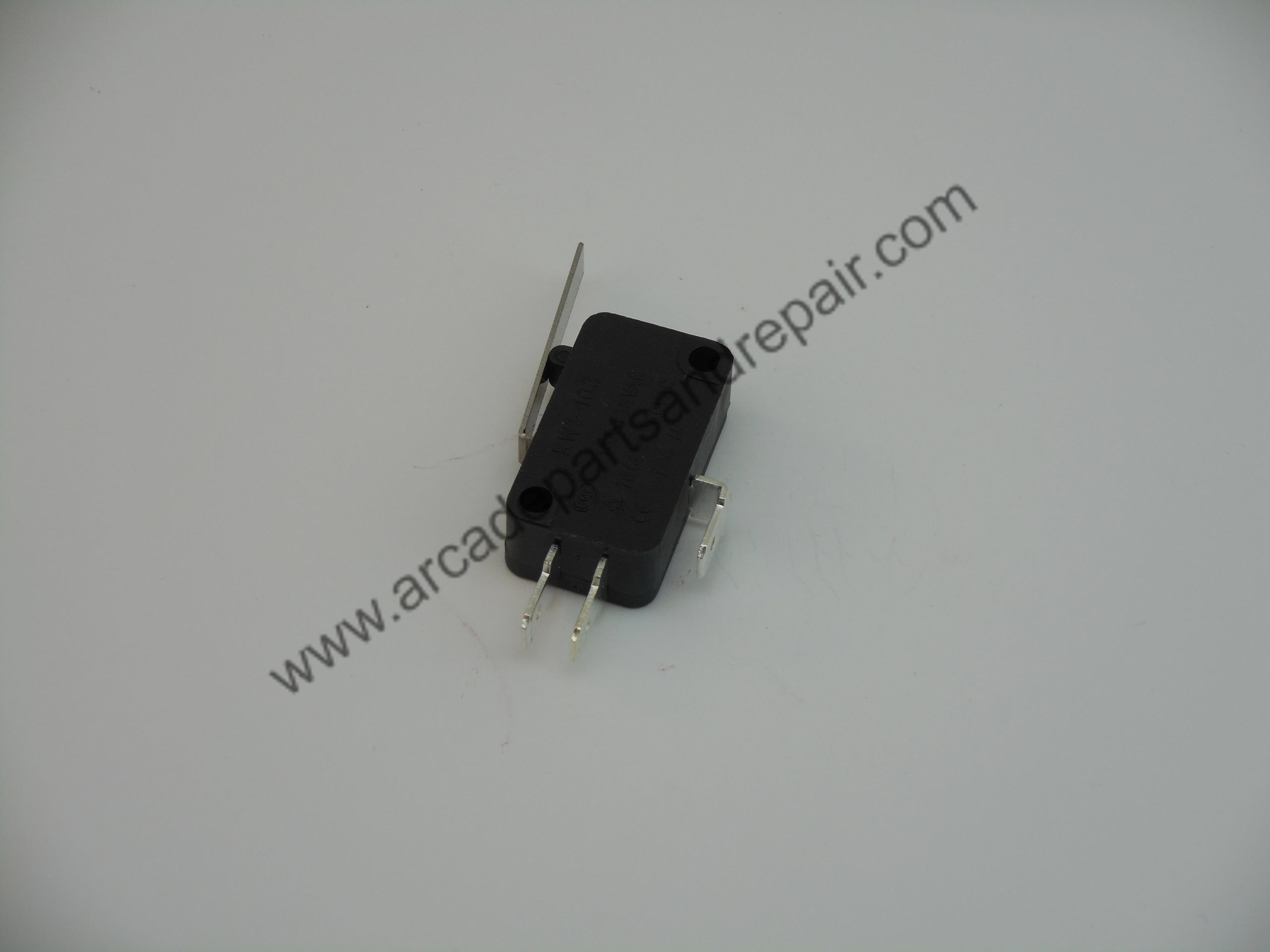

Nintendo Arcade Button / Joystick Microswitch W/Lever (SW1016).  These Micro Switches were made specifically to replace the original Omron switches and to match them exactly in size, feel and operation like the original switches.  These microswitches have .187 terminals and operating force of 100GF (gram force) and length from center of screw hole to end of lever is 35.5mm / 1.398inches.

1949 in stock

Description

Nintendo Arcade Button / Joystick Microswitch W/Lever (SW1016).  These Micro Switches were made specifically to replace the original Omron switches and to match them exactly in size, feel and operation like the original switches TKG-23-13, TKGU-23-13, TMA-34-18, VL12L and TMAU-34-18 and if you want to put a slight bend on the lever you can also replace the following TKG-23-13 and TMA-34-18 switches on some of the joysticks.  These micro switches have .187 terminals and operating force of 100GF (gram force) and length from center of screw hole to end of lever is 35.5mm / 1.398inches.  These Medium lever micro switches are DC (3A / 30VDC) and AC (16A / 250VAC – 20A / 125VAC) rated so they can be used for many other arcade / pinball applications in buttons, joysticks and other parts.  These are pretty commonly found on Nintendo Donkey Kong, Donkey Kong Jr (Junior), Donkey Kong 3, VS. Unisystems, Mario Bros, Punchout and Popeye.

Additional information

Weight .03125 lbs
Dimensions 1.5 × 1 × .5 in
