G07 Width Coil Alignment Tool

(8 customer reviews)


G07 Width Coil Alignment / Adjustment Nylon Tool.

367 in stock

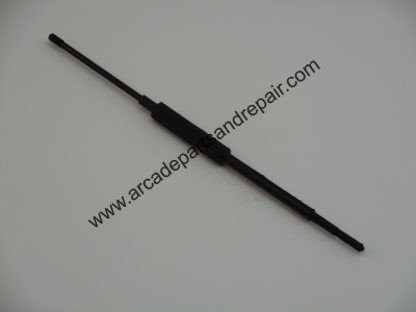

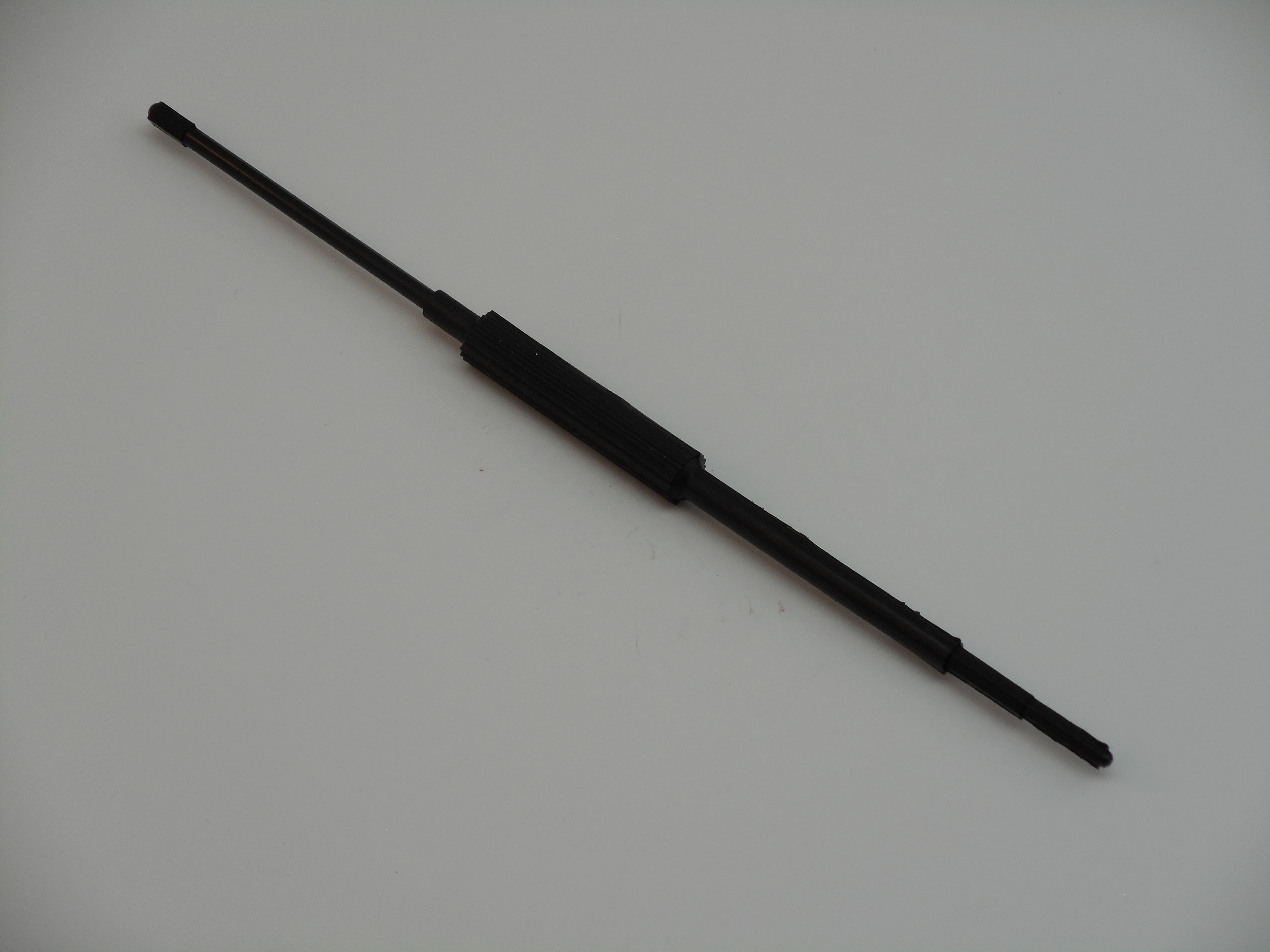

G07 Width Coil Alignment / Adjustment Nylon Tool.  This tool is much stronger than the tools in the kits which makes it possible to adjust the stiffer turning Electrohome G07 Slugs in the width coils.  This tools has an overall length of 5 3/8″ and has three tips for adjusting (.078, .10 & .10) which also have a stepped end so the tool won’t drop through the slug like most other tools.  This Plastic type of tool is used on many CRT width coils like the Electrohome G07 and the Wells Gardner K7000 and many others.  If you have ever had trouble turning a G07 width coil slug than this is the tool you need.

Additional information

Weight .015625 lbs
Dimensions 6 × .25 × .25 in

8 reviews for G07 Width Coil Alignment Tool

  1. raxnahali (verified owner)

    Must have for monitor adjustment. Glad you had them in stock.

  2. Kristofer Hansson Aspman (verified owner)

    Great tool! Seems to fit the K4600 width coil as well (at least one the chassis I tested on).

  3. Mike (verified owner)

    Great tool. This is a must have for adjusting width coils. Never use a metal tool!

  4. Dillweed (verified owner)

    An absolute necessity for monitor work. From what I can tell, it works on width coils from very obscure monitors too.

  5. John Rogers (verified owner)

    Quality tool!….Has sizes not included in the crt alignment kit that I have and it had quite a few tools in it.

  6. Djones26 (verified owner)

    Right tool for the right job. Why Chance jacking up a width coil

  7. Brandon (verified owner)

    I feel so stupid for not buying one of these earlier on! I had one of those really cheap multi-tool kits for monitor adjustments, but none of these tools fit properly in the horizontal width coil. The one tool I had that was supposed to be for that purpose would work for about half a turn and then slip. I tried wrapping tape around it to make it a bit thicker, but ended up using metal hex keys which is not a good idea given how fast they heat up.

    This tool on the other hand fits like a glove! I’ve been using it on various Wells Gardner K7000-series monitors and it’s been great.

  8. Dennis (verified owner)

    Fast shipping as always and it worked perfect with the new width coil for the G07
