CraftyMech Monitor Test Pattern Generator

(4 customer reviews)

$89.00

The TPG is a 9V battery operated test pattern generator for Standard & Medium Resolution arcade monitors (15/24khz).  9 volt battery not included.  Video cables can be purchased separately on our site or you can make your own from our connectors.

29 in stock

Description

The TPG is a 9V battery operated test pattern generator for Standard & Medium Resolution arcade game monitors (15/24khz).  9 volt battery not included.  Video cables can be purchased separately on our site or you can make your own from our connectors.  These are a must have for anyone doing monitor work whether your just a hobbyist or a repair shop.

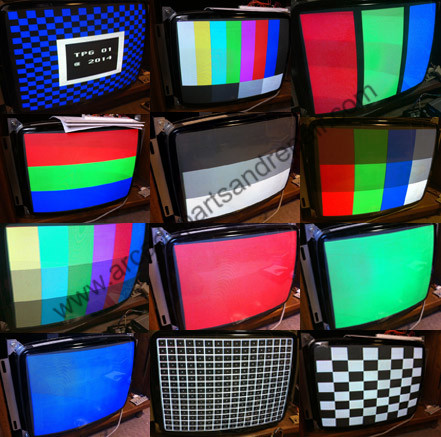

  • Over a dozen patterns.  Crosshatch, Color Bars, Solid Colors, Checkerboard, and other patterns.
  • Enable/Disable patterns via built-in menu.
  • Multiple Sync Outputs (HV +/-, composite +/-).
  • R,G,B Cutoff
  • Inverted Mode for Sanyo/Sharp Nintendo monitors.
  • Sleep function to conserve battery life.
  • Power LED to show whether the unit is on or off.

Download User Manual:  TPG_Manual

Additional information

Weight .53125 lbs
Dimensions 6.5 × 4.5 × 1.75 in

4 reviews for CraftyMech Monitor Test Pattern Generator

  1. josh s (verified owner)

    FANTASTIC! Totally recommended if you rebuild monitors often. I got so tired of making adjustments running a game board that may or may not be working correctly, or on a customers game that I’m not familiar with the colors of. This takes that problem out of the equation! Plus it’s super portable and so easy to use. Even has a burn-in screen. I don’t know why I didn’t buy this earlier. Buy it! Do it! You won’t regret it.

  2. geminimanx4 (verified owner)

    A very handy product to have for troubleshooting. Saves a lot of time and doesn’t require much space. Manual is very thorough as well. It would be nice if a larger variety of adapter cables were available to purchase with the unit, but it’s easy to build more.

    • security0001

      We do make several other adapters but not all of them are on the site so please ask if you need a different one and we are always happy to make it.

  3. john frejnik (verified owner)

    I can’t believe I went this long without buying one! Must own if you do any of your own repairs/testing on your arcade monitors!

  4. Craig Baker (verified owner)

    Awesome bit of kit. Keeps from having to pull monitors in and out of cabs. Just set it up on the bench, and dial the monitor in after a cap kit.
