Description

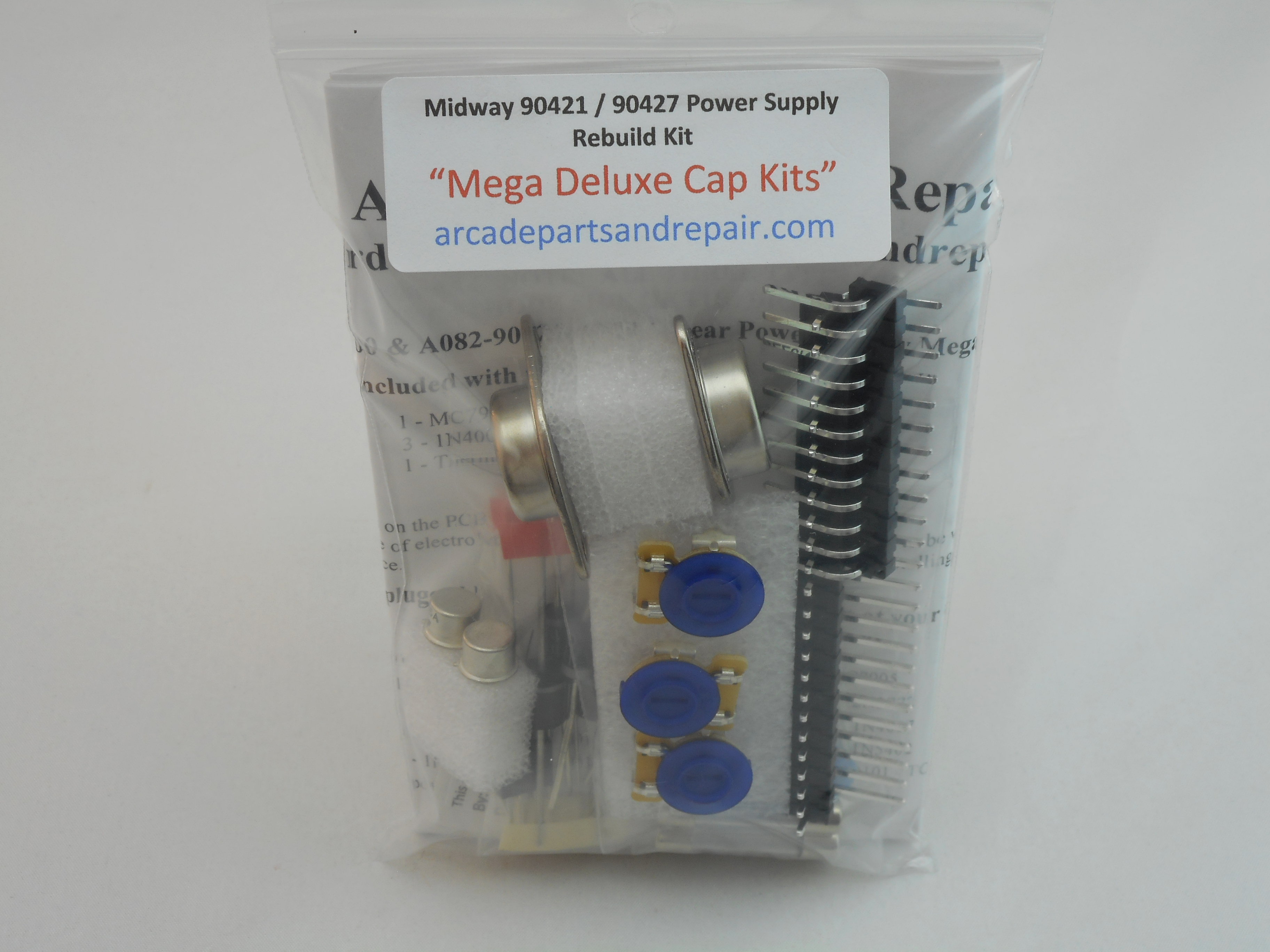

Bally Midway A082-90421-C000 & A082-90427-A000 Mega Deluxe Linear Power Supply Rebuild & 105c Axial Cap Kit is a completely inclusive kit with all common failure components and all parts in this kit are rated the same or much higher then the original they are replacing. NO WIRE HARNESS CONNECTORS/PINS INCLUDED IN THIS KIT, BUT WE HAVE THEM ALL IN STOCK ON THE SITE IF YOU NEED THEM. This kit includes the following:
- C102, C104, C113, C114, C115 and C116 axial and one eyelet leaded capacitors.
- VR100, VR101 and VR102 Trimmer Pots.
- TW1, TW2, TW3 and TW4 Zip Ties.
- NEW Q102, Q104, Q100, Q101 and U1.
- New Slow Blow and Fast Blow Fuses for F1 and F2.
- New 90 degree headers for J1 and J2
- New 3A, 1A and 6A Diodes for D110, D111, D112, D113, D114, D116, D116, D103, D108, D109, D106 and D107.
- Silicon Mica TO-220 (1 piece).
- Silicon Mica TO-3 (2 pieces).
- 1 package thermal heat sink compound.
Bally Midway A082-90421-C000 & A082-90427-A000 arcade Power Supply 105C Axial Cap Kit. This kit has some of the BEST quality, low ESR, and longest life capacitors and is the only 100% 105C cap kit available on the market. This Cap Kit / Get Well Kit has been built to replace all electrolytic capacitors even the two largest ones that NO OTHER VENDORS HAVE EVER HAD THESE TWO LARGE CAPACITORS IN ANY KITS AND ARE EXCLUSIVE TO ARCADE PARTS AND REPAIR. The kit includes 5 Axial and 1 eyelet leaded capacitors total and 4 Zip Ties which this includes the 40,000uf and 25,000uf capacitors. This power supply is found in Burgertime, Super Pacman and any other game that use this DNA-CC system M051-00945-A022 linear power supply. All of our Kits include a sticker so you can place it on the power supply to help you keep track of the work you did and when it was done. Included in this kit are great instructions. All of our Rebuild Kits / Get Well Kits include a sticker so you can place it on the PCB to help you keep track of the work you did and when it was done. This “Mega Deluxe Rebuild Kit” has all the above listed parts included in kit with great instructions and we include a map custom made with photoshop that we created to aide in your installation.
Bradley Lutz (verified owner) –
The zip ties included with the kit are too fat to fit into the holes for the Midway board. I used my own ties where needed.
Other than that, this kit is top notch! Very well set up, instructions are great, and the components are high quality and fit perfectly.
security0001 –
we will change the zip ties to a smaller size for future kits!!
Kelly Pangburn (verified owner) –
I rebuilt my power supply with this kit that was not working in a Super Pac-Man. All parts in the kit were correct and the directions were very well written. My only complaint is the kit did not fix the actual problem with the power supply. The power supply had a bad cap at C105 and the board worked after that was replaced. The description says it includes replacements for “all common failure” components, and after a little research it seems common that this cap fails and I think this kit should include replacement for C105 for future buyers.
Otherwise it is a great kit and as I am a frequent customer and I will keep coming back!
security0001 –
thank you for your support and yes you may not have every part in some kits but this kit doesn’t have tantalum caps in it which C105 is but we sell it individually so if you need it. while tantalum caps do fail its not often enough on this PCB to put it in the kits.
