MCR106-8

$1.55

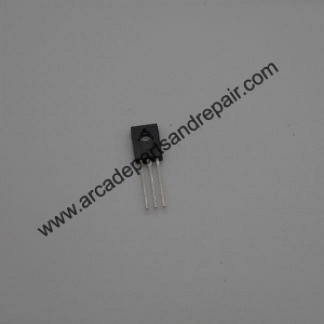

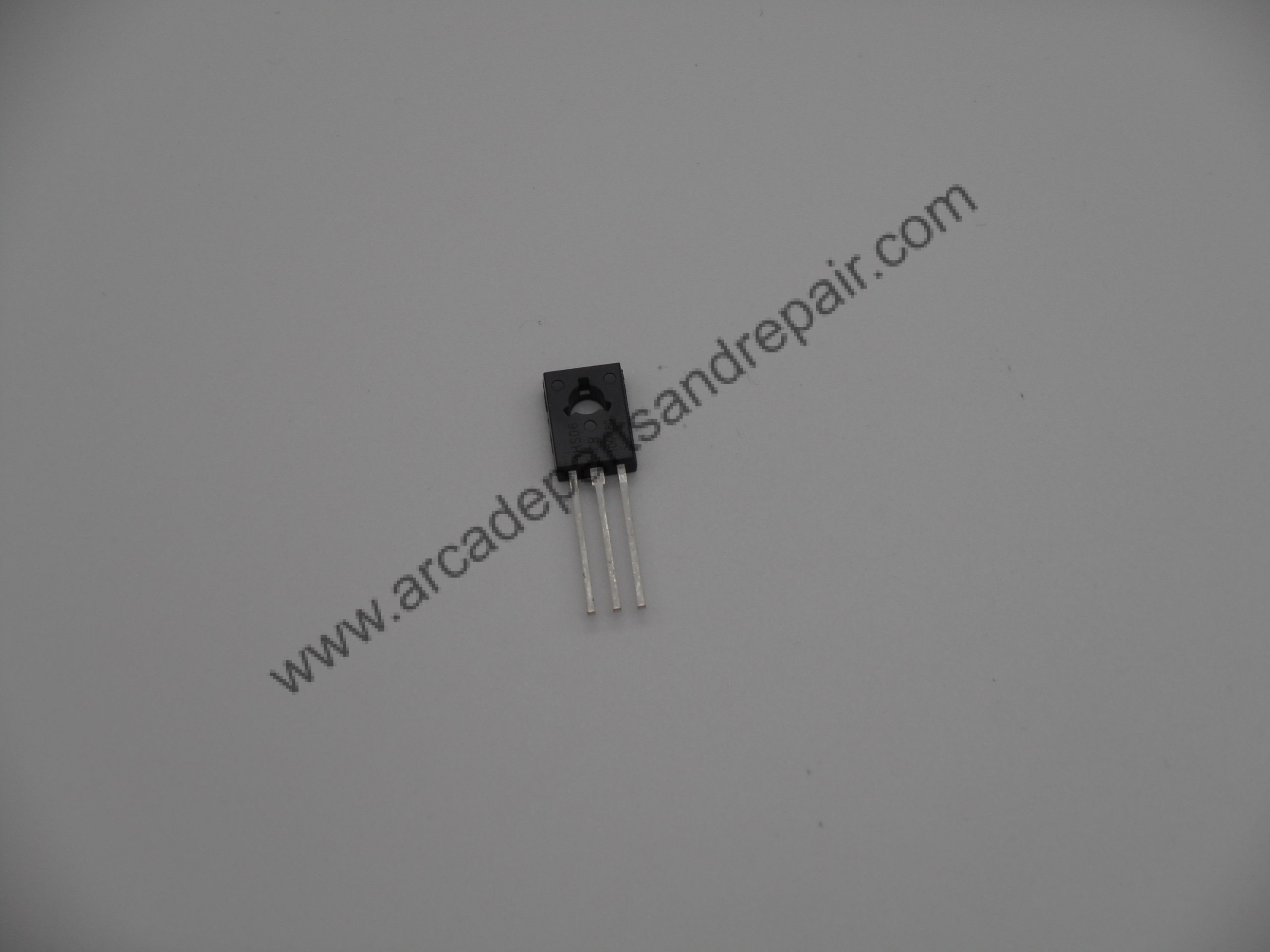

MCR106-8G is PNPN 4amp 600V SCR Thyristor device designed for high volume consumer applications such as temperature, light and speed control; process and remote control, and warning systems where reliability of operation is important, TO-225-3 Package with lead layout of CAG (1- Cathode, 2- Anode, 3- Gate, 4- Anode (Case)).

1440 in stock

Description

MCR106-8G is PNPN 4amp 600V SCR Thyristor device designed for high volume consumer applications such as temperature, light and speed control; process and remote control, and warning systems where reliability of operation is important, TO-225-3 Package with lead layout of CAG (1- Cathode, 2- Anode, 3- Gate, 4- Anode (Case)).  Glass-Passivated Surface for Reliability and Uniformity, Power Rated at Economical Prices, Practical Level Triggering and Holding Characteristics, Flat, Rugged, Thermopad Construction for Low Thermal Resistance, High Heat Dissipation and Durability.  This MCR106-8G higher rated and can replace any of the following: E-00585-0029, MCR106-1, MCR106-6G, NTE5411, 2N6236, TIC106Y, C106M1G, 25A-2-3 SCR and others.  This MCR106-8G is used in many applications such as Midway, Bally and Stern Pinball Lamp Light Driver Module boards PCBs such as AS2518-23, AS2518-14 and many others at locations Q1, Q2, Q3, Q8, Q9, Q10, Q15, Q16, Q17, Q22, Q23, Q24, Q33, Q34, Q35, Q40, Q41, Q42, Q47, Q48, Q49, Q54, Q55 and Q56.

Additional information

Weight .015625 lbs
Dimensions 1 × .5 × .25 in
