KA3525

$3.45

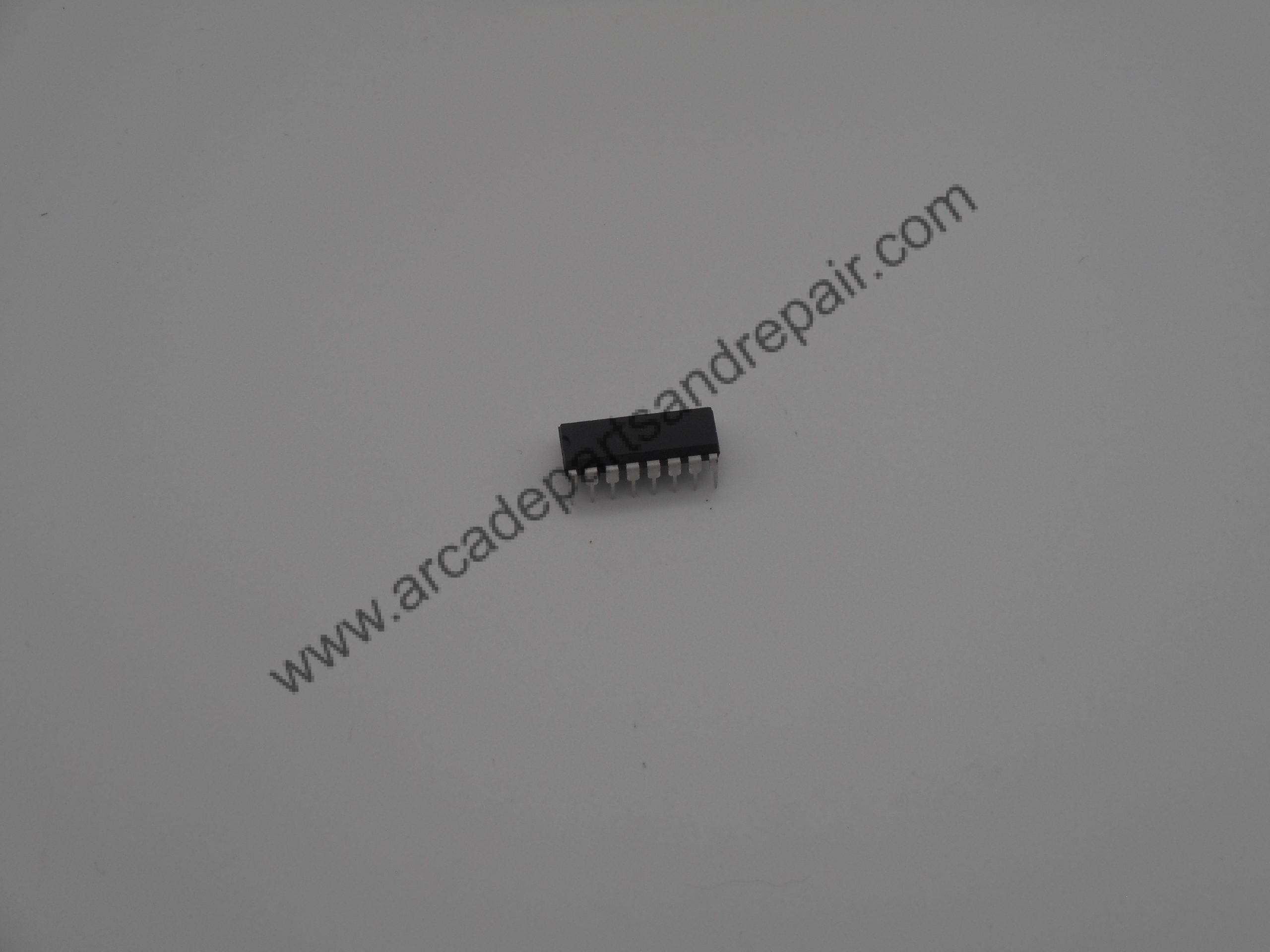

KA3525A is a SMPS controller and is a monolithic integrated circuit that includes all of the control circuits necessary for a pulse width modulating regulator, DIP-16 Package.

484 in stock

Description

KA3525A is a SMPS controller and is a monolithic integrated circuit that includes all of the control circuits necessary for a pulse width modulating regulator, DIP-16 Package.  There are a voltage reference, an error amplifier, a pulse width modulator, an oscillator, an under voltage lockout, a soft start circuit, and the output driver in the chip.  This is used on the Atari A038074-07 / A038074-17 Switching Power Supply at location U1.

Additional information

Weight .015625 lbs
Dimensions 1 × .5 × .5 in
