80x80x25MM 12VDC Cooling Fan (MP1053)

(3 customer reviews)

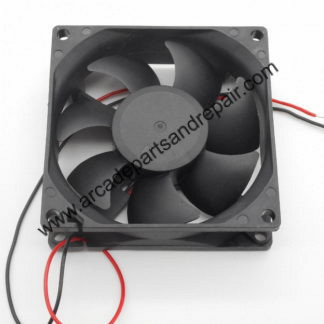

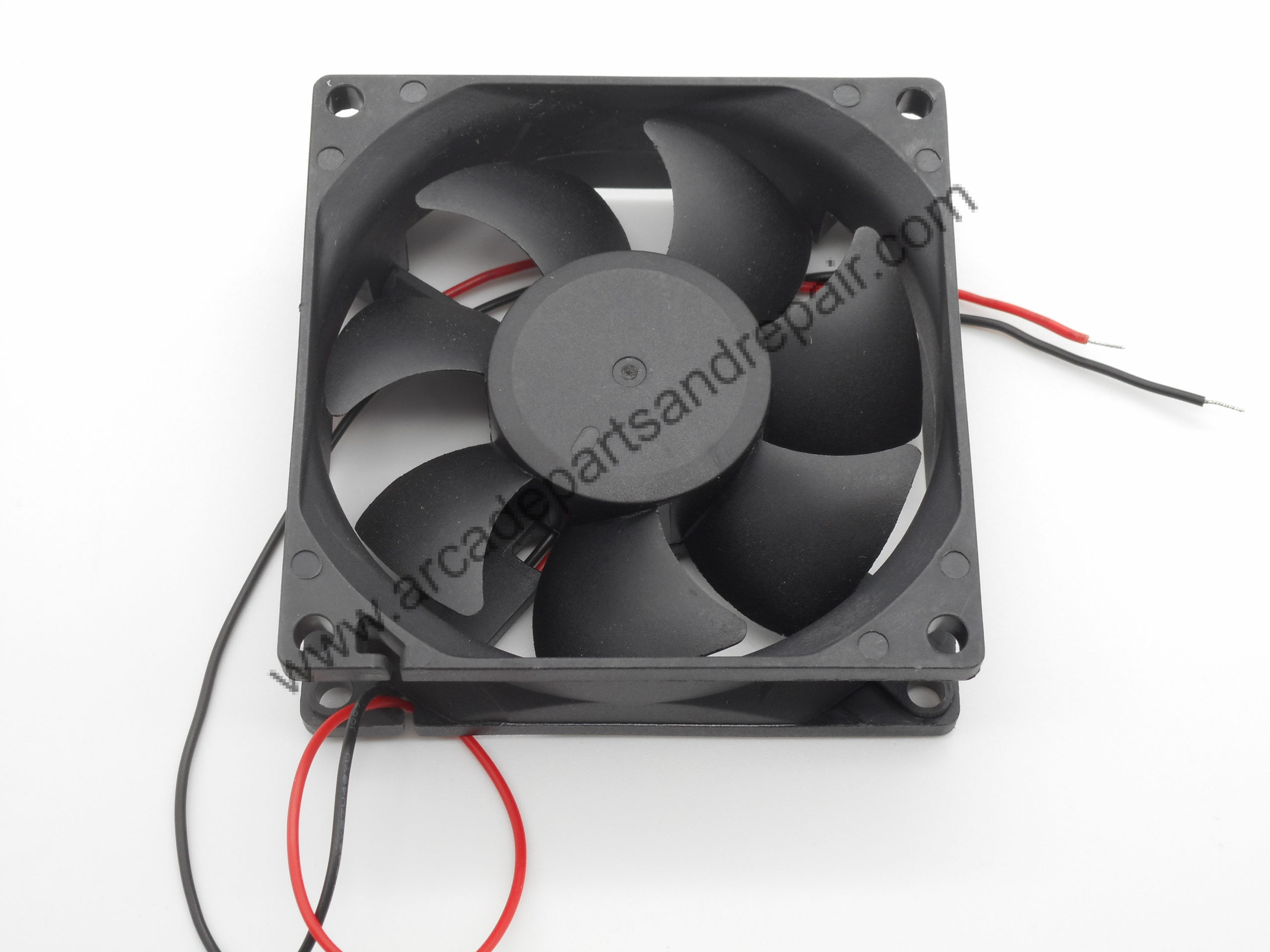

80x80x25MM 12VDC 2 wire without connector Cooling Fan (MP1053).

407 in stock


80x80x25MM 12VDC 2 wire without connector Cooling Fan (MP1053).  This sleeved bearing cooling fans have operating voltage 10.8vdc-13.2vdc, 3000RPM, 32.37CFM, 27.85dBA, 60.9g weight,  0.20A current and center to center screw holes are 71.5mm.  These fans can be added in many locations to add better cooling and air flow so your games will last longer.  These are used on many arcade, pinball games, power supplies, computers, monitor chassis for cooling flybacks, components, cabinets and many other uses.  Some consider these 3″x3″x1″ and we have used them in computer grade power supplies and the ones we installed them in were an exact fit.  SIZE: 80x80x25mm (3.15″x3.15″x0.98″) CONSTRUCTION: Glass fiber reinforced plastic, Impeller and housing PTB are UL94V-0 rating OPERATING TEMPERATURE: -10ºC~+70ºC STORAGE TEMPERATURE: -30ºC~+75ºC INSULATION RESISTANCE: 10meg Ohm min,at 500 VDC (between frame and terminal) DIELECTRIC STRENGTH: 5mA max, at 500 VAC 60Hz one minute (between frame and terminal).  We also stock the metal fan guards and the plastic filter covers with filters on our site which are part numbers MP1054 and MP1047.

Additional information

Weight .21875 lbs
Dimensions 3.375 × 3.375 × 1.25 in

3 reviews for 80x80x25MM 12VDC Cooling Fan (MP1053)

  1. Dan Joaquin (verified owner)

    Worked great as a replacement for my Star Wars Trilogy PS fan. Runs at a lower dB level then the original so it helps with the loud fan noise.

  2. Christopher Shively (verified owner)

    Replaced the noisy fan in my Golden Tee ’98 power supply, which saved me around $60 versus replacing the whole thing. Easy install.

  3. Jared Bresee (verified owner)

    Perfect fit for my Hantreax 9000. Some chassis came with an optional fan housing this is the exact size for it and many other monitor fans as well as cooling fans on PCB game boards, etc. Super-quiet also. If you are on the fence, don’t be, grab it along with a filter and wire frame from Arcade Parts and Repair. You will thank yourself 100%!
