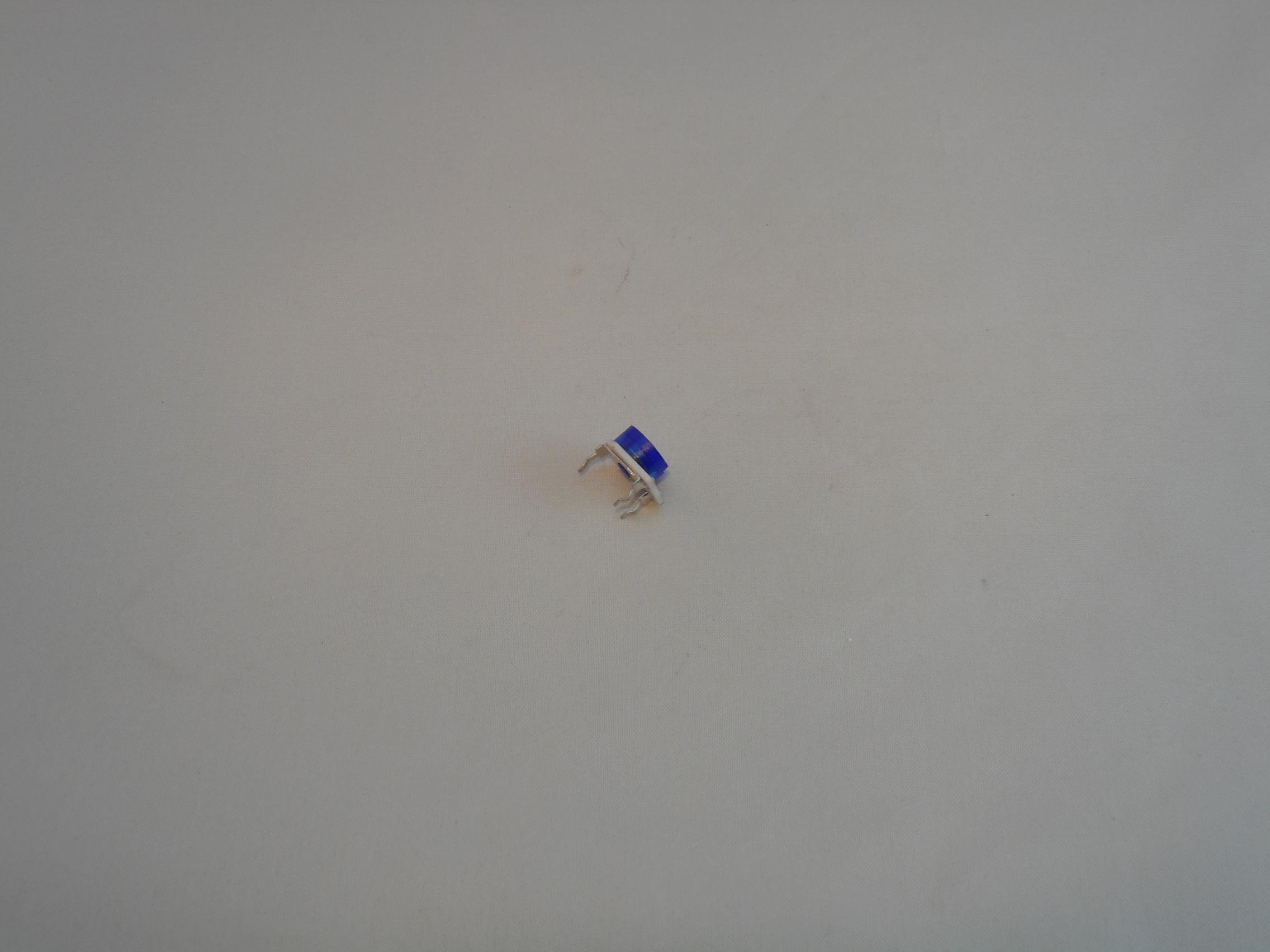

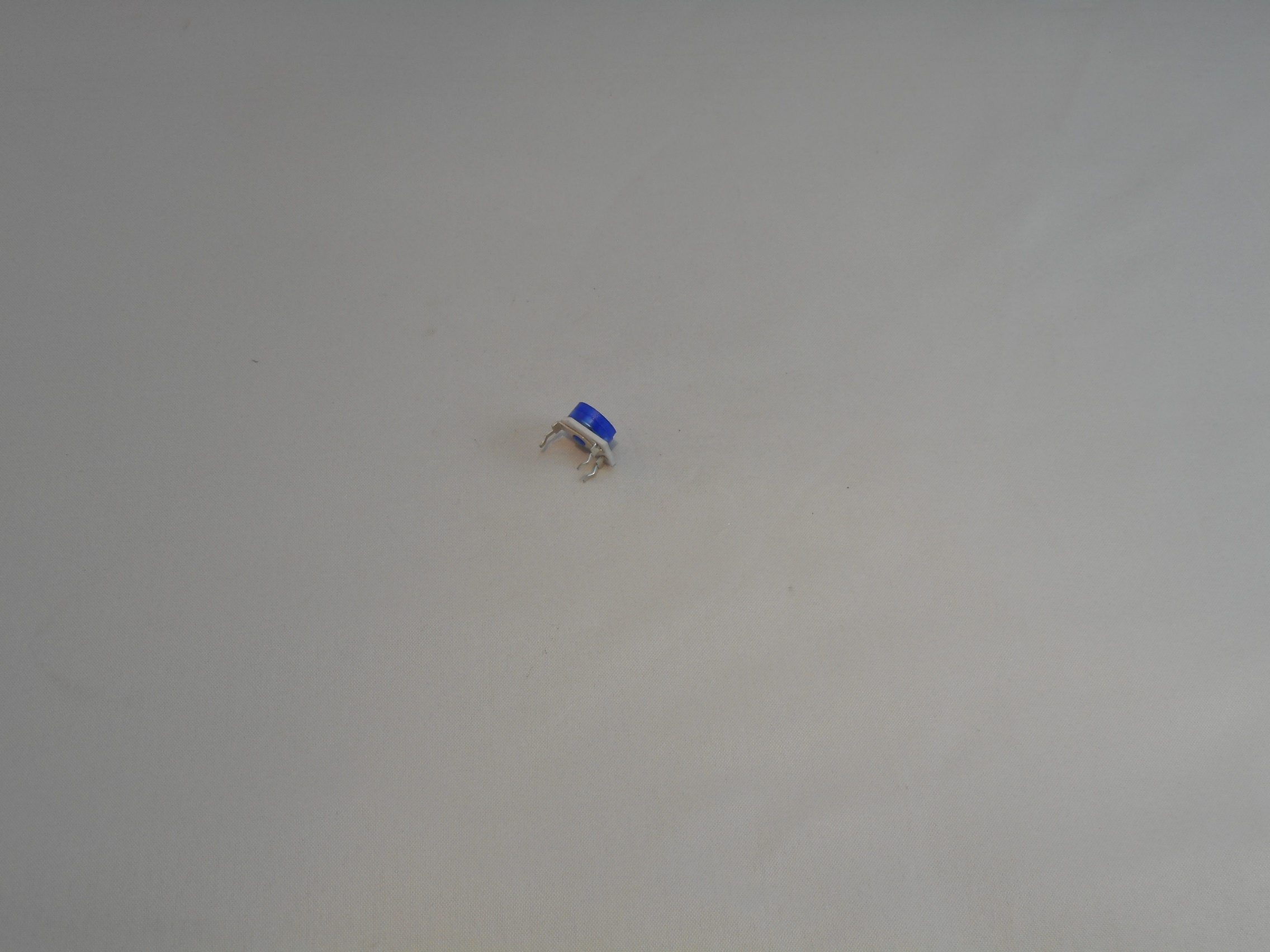

10K OHM TRIMMER POTENTIOMETER (P1006)

(2 customer reviews)

$2.25

10K OHM 1/2 Watt 25% Cermet TRIMMER POTENTIOMETER (P1006).  Horizontal mount top adjust POT.  PCB layout is 5mm x 10mm.

5875 in stock

Description

10K OHM 1/2 Watt 25% Cermet TRIMMER POTENTIOMETER (P1006).  Horizontal mount top adjust POT.  PCB layout is 5mm x 10mm.  Used on Wells Gardner K7000 Series Contrast Pot at VR101 on the remote board (another model available for mounting on main PCB of the K7000) and many other monitor chassis and other applications.  These pots are also on other wells gardner remote boards such as K7500, K7400, U2000, and U5000 and also the shutdown pot at VR700.  These pots are also on Hantarex Polo and others on the remote boards at RV404, RV405, RV407 and RV408 and the Matsushita TM-202G monitor at R344 brightness pot.  These are the exact fit for the application listed above but can also be used in many other applications where this value of Pot is needed.

Additional information

Weight .015625 lbs
Dimensions .5 × .5 × .5 in

2 reviews for 10K OHM TRIMMER POTENTIOMETER (P1006)

  1. Richard (verified owner)

    Quality trimmer pots with the right footprint are are getting difficult to find, but Arcade Parts and Repair has them in all the values commonly used in arcade monitors.

  2. Gordon Geist (verified owner)

    A+
