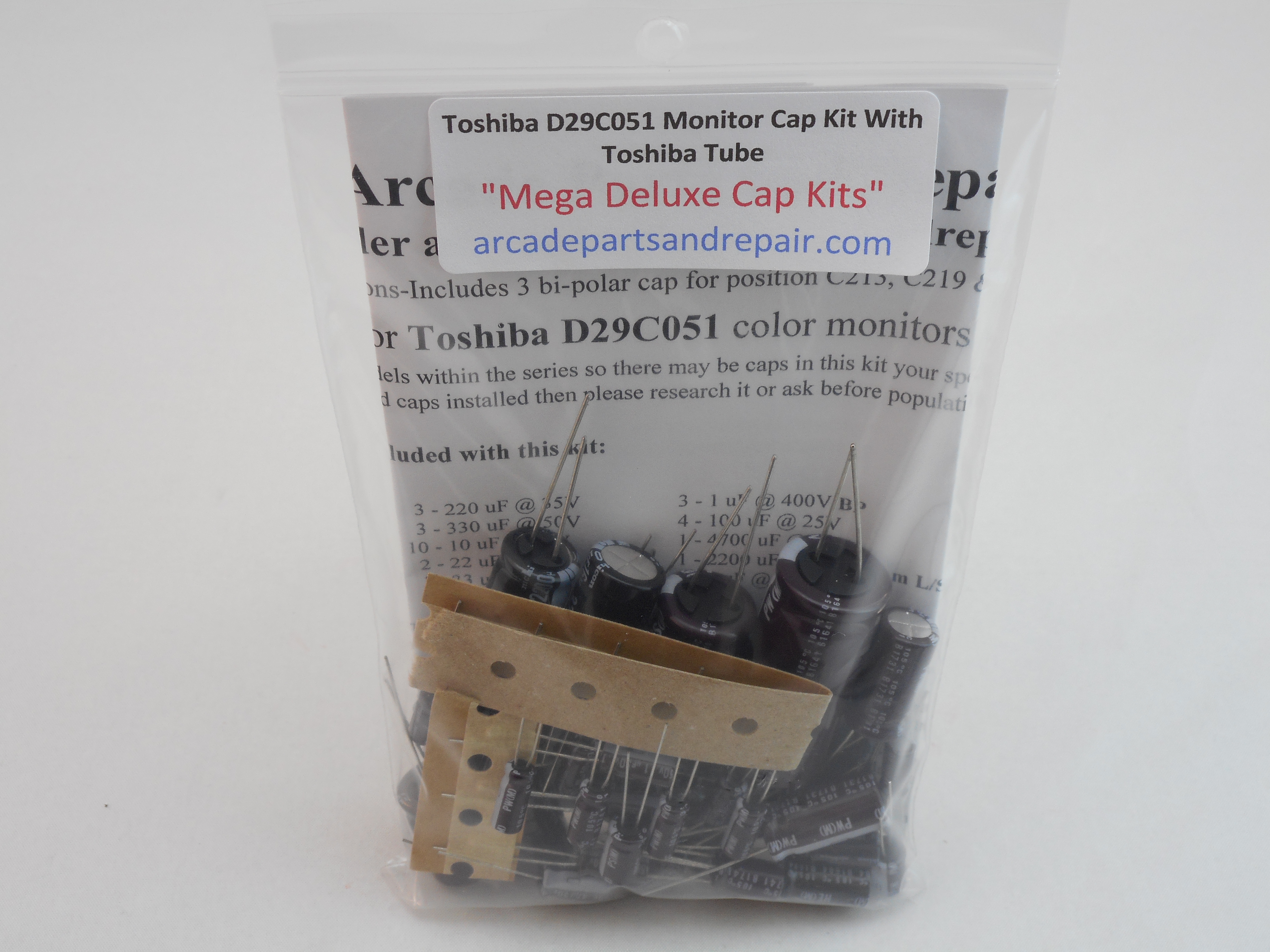

Toshiba PF-D29C051 Monitor Cap Kit W/Toshiba Tube 105C Nichicon

$32.11

Toshiba PF D29CO51 Series Arcade Monitor Cap Kit W/Toshiba Tube 105C Nichicon Capacitors.  43 Capacitors total including the 3 Bi-Polar capacitors and with great instructions.  “Mega Deluxe Cap Kits”  Our kits have some of the BEST quality, low ESR, and longest life capacitors included.  This chassis has two different tubes used and this kit is only for the chassis mounted to a Toshiba CRT Tube and if your chassis is mounted to a Matsushita tube then you need the kit for the chassis mounted to that tube.

45 in stock (can be backordered)

Description

Toshiba PF D29CO51 Series Arcade Monitor Cap Kit W/Toshiba Tube 105C Nichicon Capacitors.  43 Capacitors total including the 3 Bi-Polar capacitors and with great instructions.  “Mega Deluxe Cap Kits”  Our kits have some of the BEST quality, low ESR, and longest life capacitors included.  This chassis has two different tubes used and this kit is only for the chassis mounted to a Toshiba CRT Tube and if your chassis is mounted to a Matsushita tube then you need the kit for the chassis mounted to that tube.  The chassis on the Matsushita tube has a capacitor on the Neck PCB at C228 which is a 220uf 200v and the chassis on the Toshiba Tube has a 33uf 200v capacitor at that same location.  All of our Cap Kits / Get Well Kits include a sticker so you can place it on the monitor to help you keep track of the work you did and when it was done.    NOTE: There are three Filter caps for this chassis and there are two 220uf 200v caps and one 1000uf 250v and they are not included in kit but can be purchased separately on our site.

Additional information

Weight .3125 lbs
Dimensions 6 × 4 × 1 in
