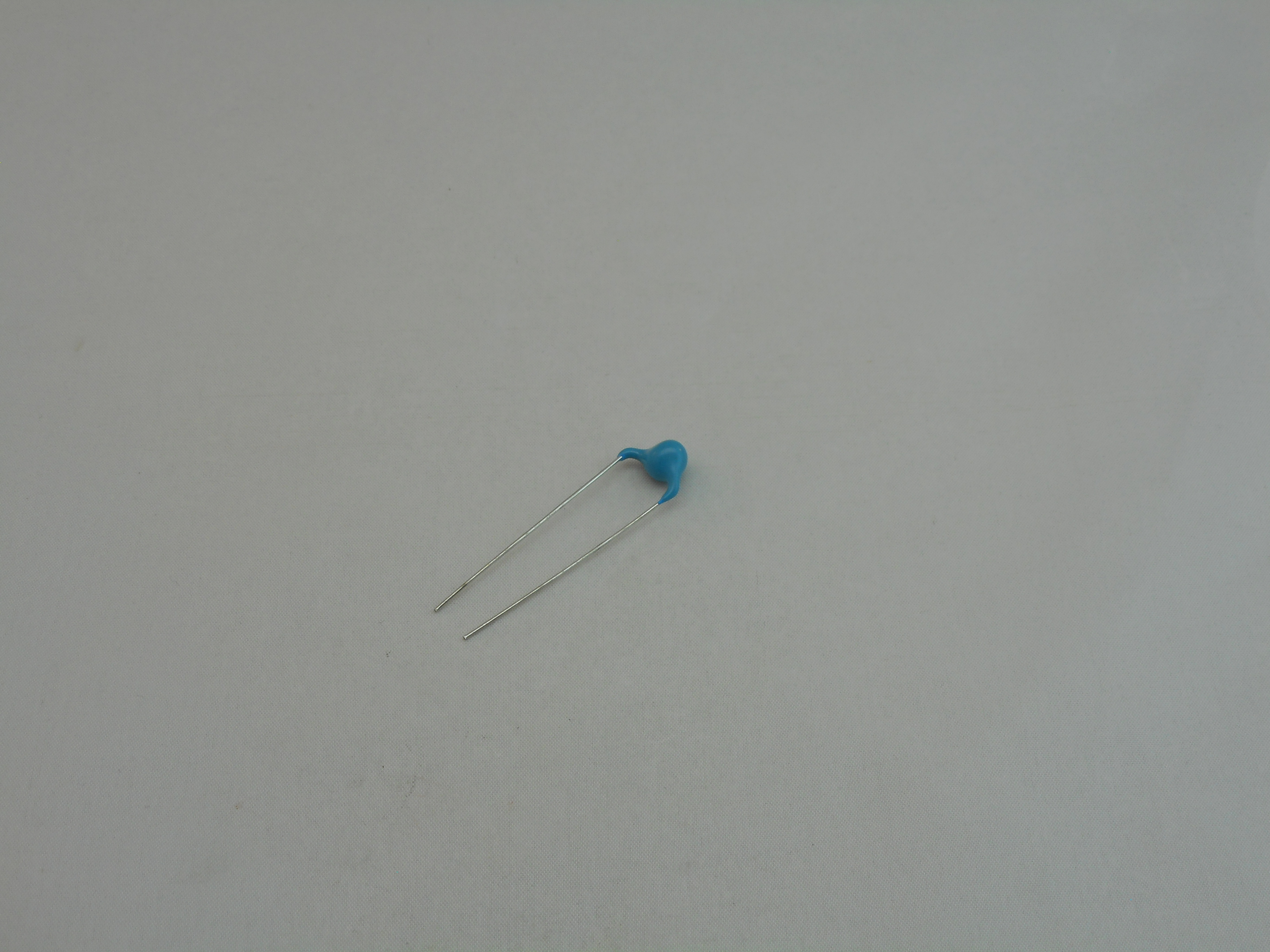

100pF 15kV Ceramic Capacitor (MC1013)

(4 customer reviews)


.0001uF 15,000V (.1nF 15,000V) Ceramic Capacitor 10% tolerance (MC1013).

959 in stock


.0001uF 15,000V (.1nF 15,000V) Ceramic Capacitor 10% tolerance (MC1013).  This is to replace the original 100pF 12kV (100pF 12,000V) capacitor on a Wells Gardner K4600 and K4700 Series monitor chassis location C405 which is attached to the neck PCB socket and when this cap starts to fail you will have images that won’t focus or you lose focus.  This is a 100C and 10% tolerance capacitor so its much better then the original and i recommend replacement when you do a cap kit because of its age.

Additional information

Weight .03125 lbs
Dimensions 2 × 1 × .5 in

4 reviews for 100pF 15kV Ceramic Capacitor (MC1013)

  1. delusional29 (verified owner)

    This worked great. I’ve replaced a few on my k4600 neckboards when doing a cap kit.

  2. m1interactive (verified owner)

    Works great, although installing on my board was tricky. I had to cut the old one off and ended up soldering directly to the remaining pins.

  3. Ben Bassinger (verified owner)

    This is exactly what I needed to get my focus working again on my k4600. Great parts and service!

  4. jkinder (verified owner)

    Perfect. I’m replacing this on every k4600 I CAP now.
