Pentranic CH-288 / CH-288A / Makvision 1425 / 2425 Monitor Cap Kit 105C Nichicon

(4 customer reviews)

$24.80

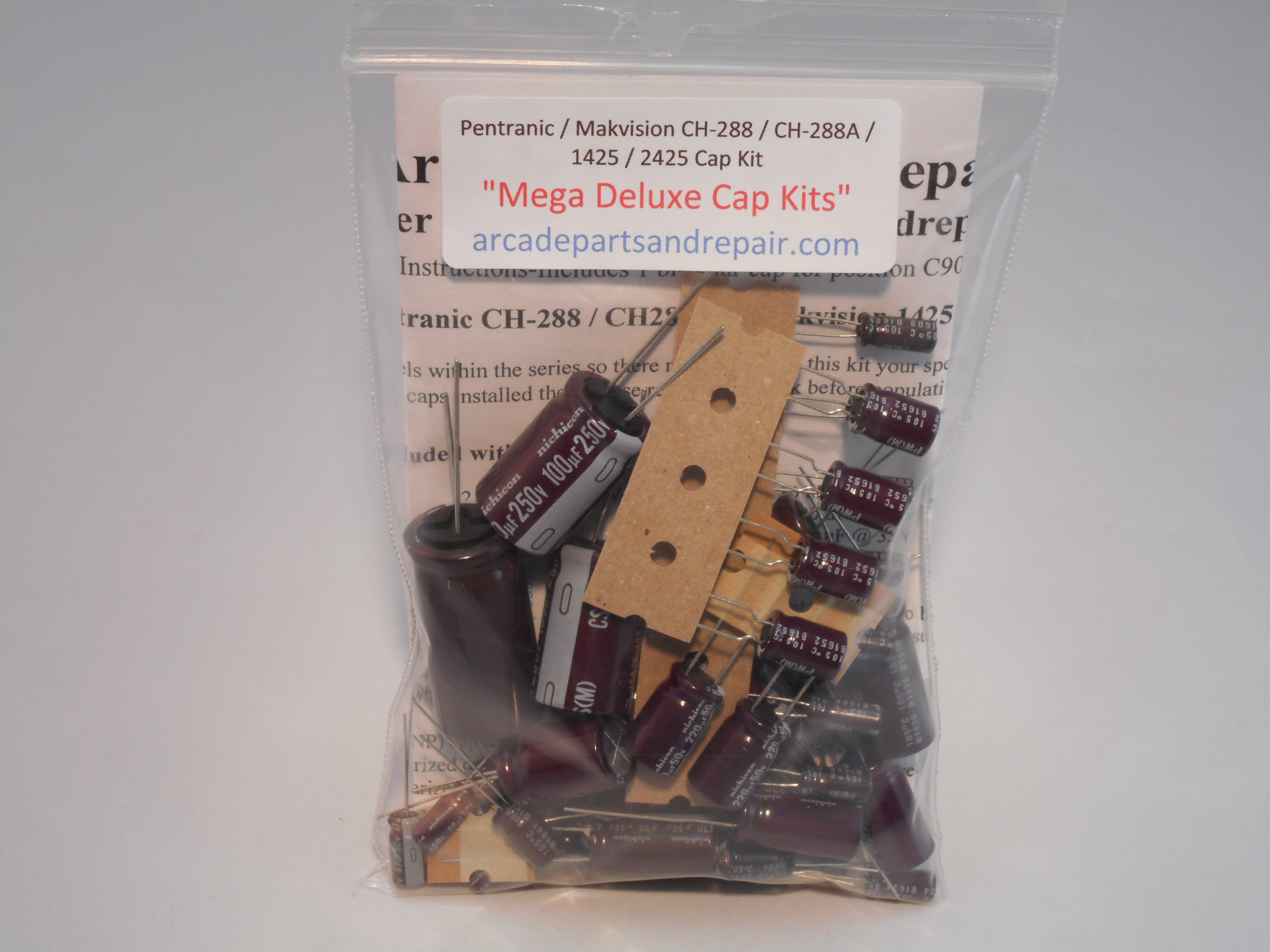

Pentranic CH-288 and CH-288A / Makvision 1425 and 2425 series Arcade Monitor Cap Kit 105C and 100% Nichicon capacitors.  “Mega Deluxe Cap Kits”  39 Caps total including the 1 Bi-Polar capacitor.

29 in stock (can be backordered)

Description

Pentranic CH-288 CGA (Pentranic 1125, 1127, 1527 & 1532) and CH-288A / Makvision 1425 and 2425 series Arcade Monitor Cap Kit 105C and 100% Nichicon capacitors.  “Mega Deluxe Cap Kits”  39 Caps total including the 1 Bi-Polar capacitor.   This Pentranic chassis usually has 1425 silk screened on the neck PCB and CH-288 on the main PCB but not always and this kit works for the CH-288 CGA and CH288 15K/25K Switchable chassis.  There are alot of variations of models and sizes from this manufacturer so make sure this is the correct one for your chassis and if you have any questions please ask.  Our kits have some of the BEST quality, low ESR, and longest life capacitors included.  Great instructions included.  All of our Cap Kits / Get Well Kits include a sticker so you can place it on the monitor to help you keep track of the work you did and when it was done.  Includes Bi-Polar capacitor for C907.  This kit is also for the Pentranic CH-288 Switchable 15K / 25K chassis.  NOTE: Filter cap for this chassis is a 220uf 400v and is not included in kit but can be purchased separately on our site.

Additional information

Weight .250 lbs
Dimensions 6 × 4 × 1 in

4 reviews for Pentranic CH-288 / CH-288A / Makvision 1425 / 2425 Monitor Cap Kit 105C Nichicon

  1. ledfrog (verified owner)

    I have the Pentranic CH-288 monitor and this is probably the largest quantity of caps I’ve had for one CRT. As with any pre-configured kit, it’s great to get all the required components all at once rather than trying to track down each individual piece. I was able to resolve some color issues with this kit and hopefully it’ll help extend the life of this monitor as long as possible so I don’t have to switch to LCD.

  2. Marc Crouse (verified owner)

    Great value for a kit with so many caps.
    Fast shipping and good description for ease of purchase.

  3. BILL SHAY JR (verified owner)

    Very convenient to get all these capacitors in one top notch kit. Also appreciate the fast shipping.

  4. Alex M (verified owner)

    Was able to get my monitor working right after having horizontal hold issues. The cap kit was easy to follow with great instructions. Monitor looks amazing now and works perfect.
