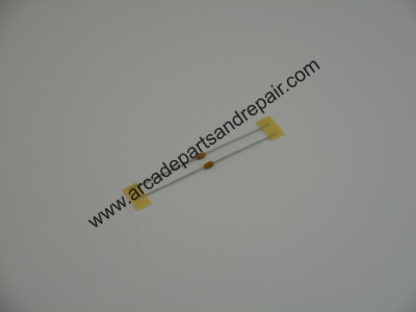

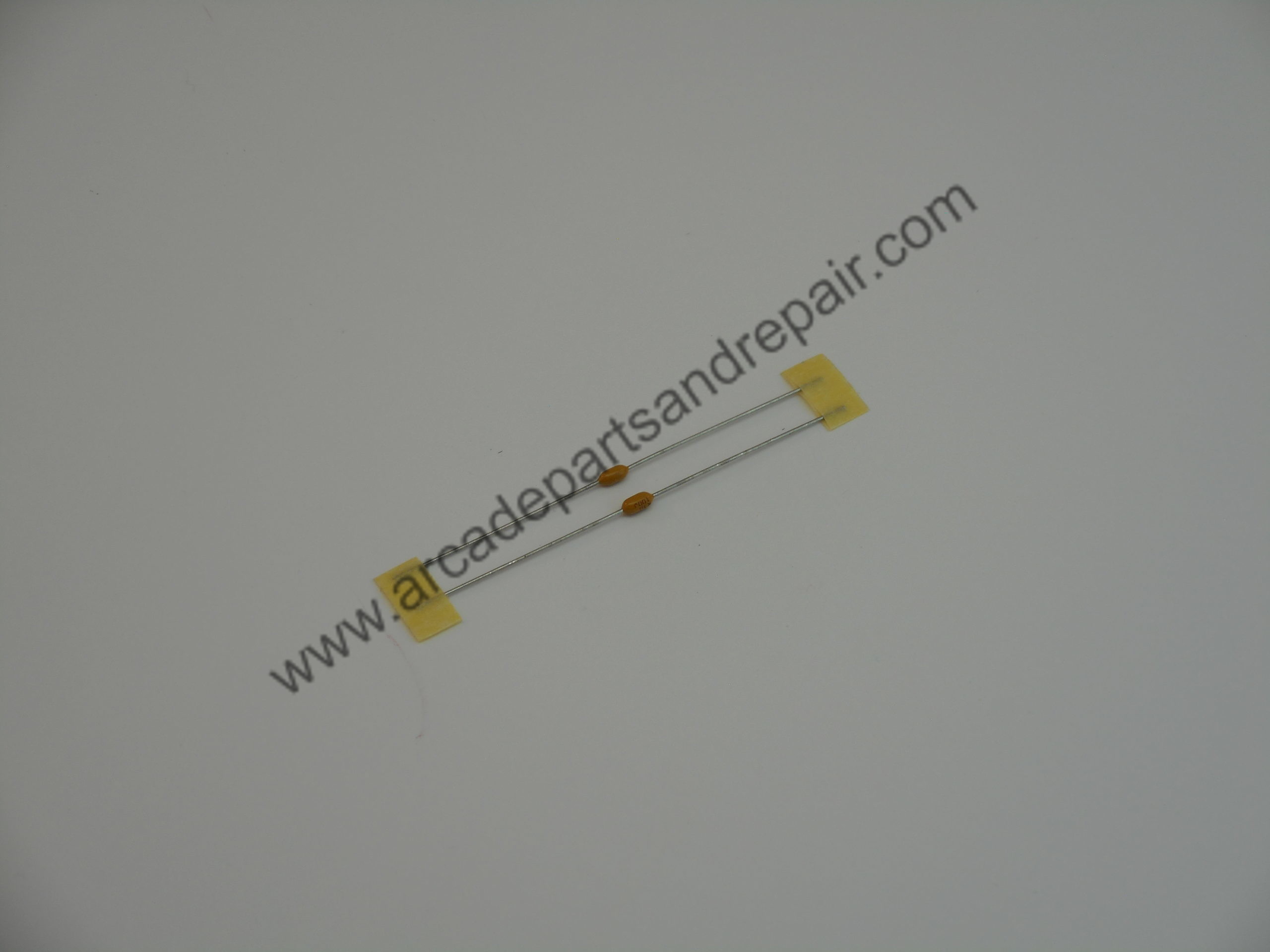

10pF 100V MLCC Axial Capacitor (2 Pieces) (MC1069)

(1 customer review)

$2.50

10pF 100V 5% tolerance MLCC Axial Capacitor (2 Pieces) (MC1069) (0.01nF) (0.00001uF).  For every quantity of 1 added to your cart you will receive 2 capacitors.

242 in stock

Description

10pF 100V 5% tolerance MLCC Axial Capacitor (2 Pieces) (MC1069) (0.01nF) (0.00001uF).  Conformally Coated, C0G Dielectric Aximax conformally coated axial leaded ceramic capacitors in C0G dielectric feature a 125°C maximum operating temperature.  These are used on many arcade and pinball PCBs.  This is used on the Atari San Francisco Rush the Rock CPU U17 heatsink Field Service Bulletin:  It has come to our attention that some SF Rush the Rock CPU boards (A-21937) may exhibit a reset problem.  Symptoms are: the game freezes then re-boots during game play.  To fix this timing error, solder this 10pF axial capacitor (5048-12503-00) from the load side of R571 to the ground side of C310.  See attached image for an exploded view of the exact location on the board of the added capacitor.  For every quantity of 1 added to your cart you will receive 2 capacitors.

Download: Exploded view of board installation

Additional information

Weight .015625 lbs
Dimensions 2.5 × .5 × .125 in

1 review for 10pF 100V MLCC Axial Capacitor (2 Pieces) (MC1069)

  1. Tom Kutz (verified owner)

    Just the part I needed for repair. Fast turnaround.
