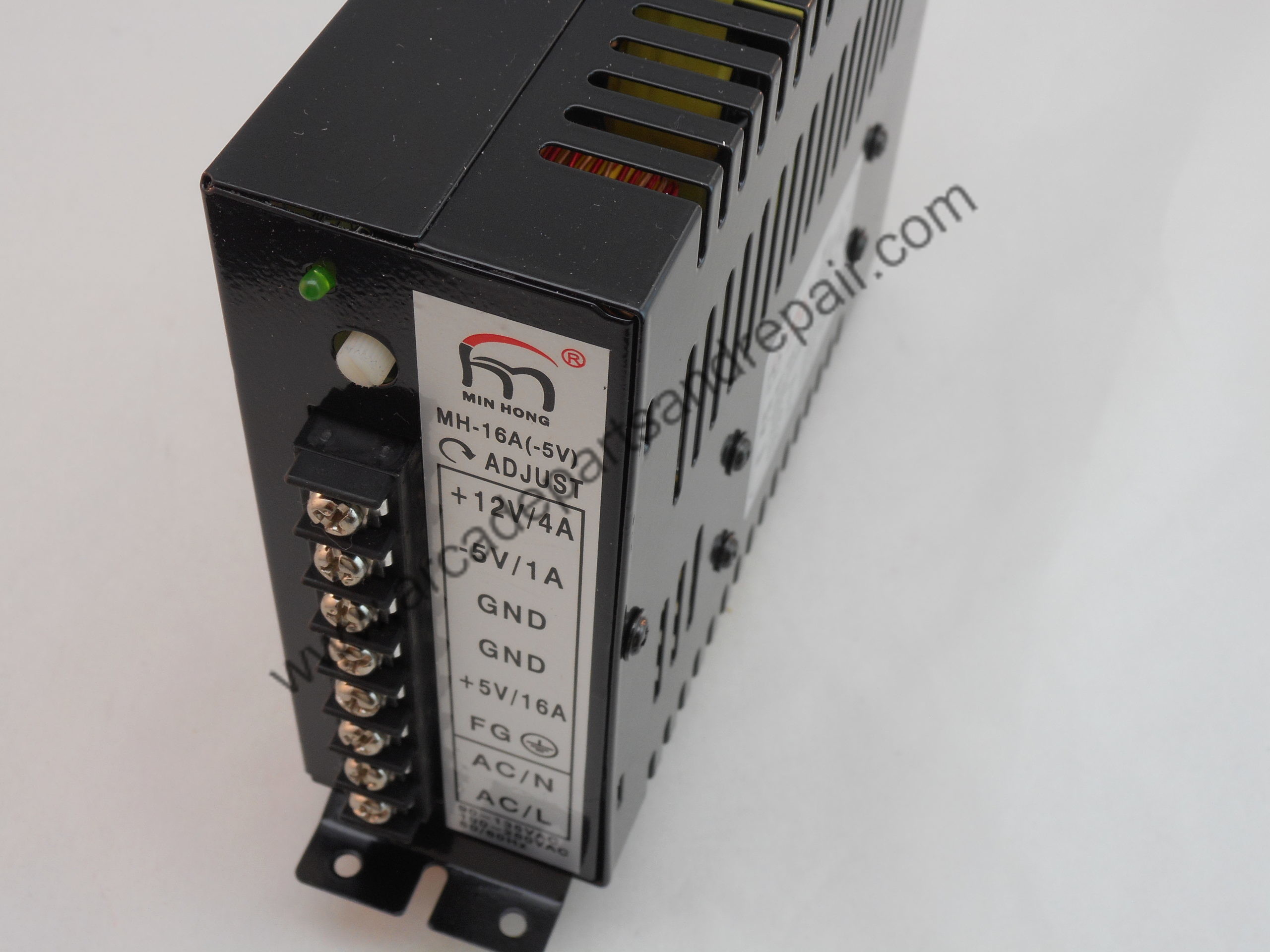

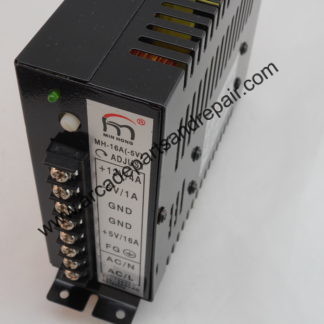

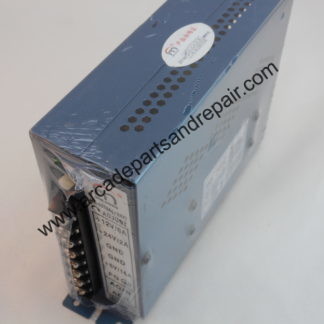

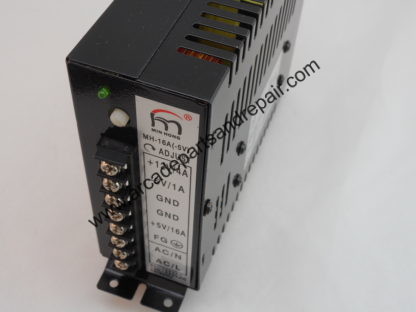

16A Arcade Switching Power Supply +5vdc -5vdc +12vdc Jamma

(2 customer reviews)

$29.95

Brand NEW 16A Standard Arcade Switching Power Supply for your arcade cabinet!   Provides a very clean/low-noise standard +5VDC, -5VDC, +12VDC outputs and a switchable 110VAC/220VAC input.  (Default they are set to 220v so make sure to change it if using 110v)  Great replacement power supply for many classic arcade games jamma or non jamma. It is easy to start-up, and works with high-efficiency and great reliability. Its compact design occupies less space.

668 in stock

Description

Brand NEW 16A Standard Arcade Switching Power Supply for your arcade cabinet!   Provides a very clean/low-noise standard +5VDC, -5VDC, +12VDC outputs and a switchable 110VAC/220VAC input.  (Default they are set to 220v so make sure to change it if using 110v)  Great replacement power supply for many classic arcade games jamma or non jamma. It is easy to start-up, and works with high-efficiency and great reliability. Its compact design occupies less space.  These will accept terminal widths up to 0.330 thousandths.

  • AC Input : AC100V – 120V or 220V – 240V
  • DC Output: +5V/16A, +12V/4A(+5V adjustable) -5V/1A
  • 150 Watt power supply
  • LED power on indicator
  • Built-in EMI Filter
  • Vertically, Horizontally and Wall-Mount
  • Maximum noise minimization by built-in high-speed diode
  • Over Load Protection, 130% of Rated Load
  • Short Circuit Protections
  • Convection cooling
  • Operation Temperature  0 Celsius to 40 Celsius
  • Storage Temperature  -40 Celsius to +60 Celsius

Additional information

Weight 1.5625 lbs
Dimensions 8.5 × 5.75 × 2.75 in

2 reviews for 16A Arcade Switching Power Supply +5vdc -5vdc +12vdc Jamma

  1. Charlie Pyne (verified owner)

    Been fighting with weirdness on my Venture sound board for way too long. Swapped out old supply and now it works great. I wish I had retired this old tired switcher long ago. At $25, you can’t go wrong.

  2. tyler henn (verified owner)

    Perfect replacement for the old one. Works great and voltage has been perfect.
