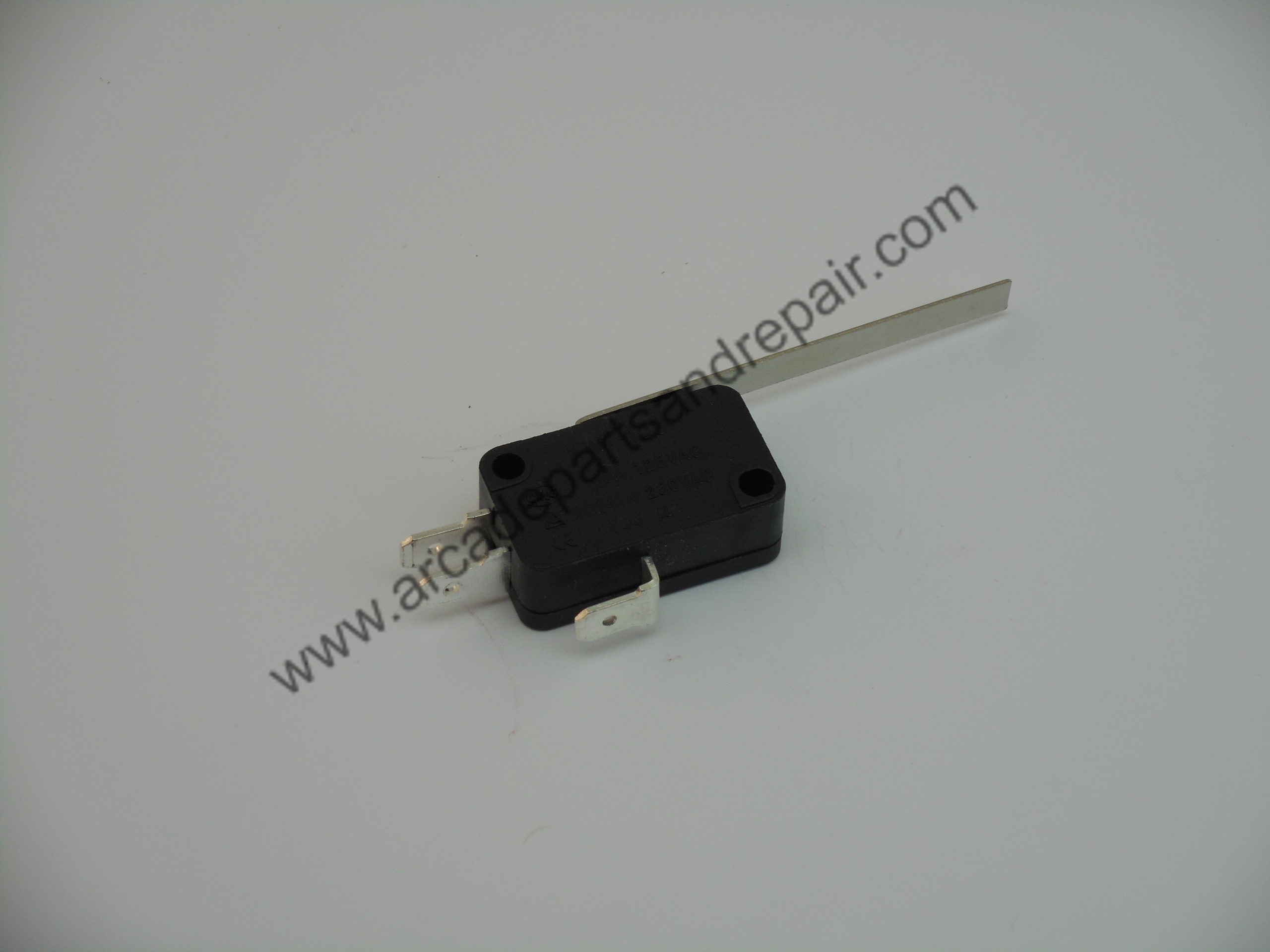

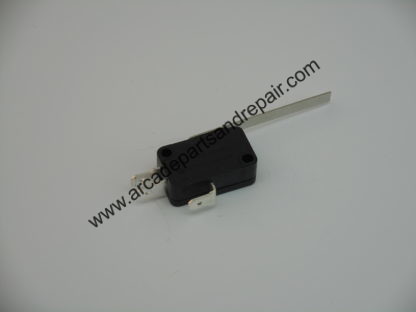

Ice Cold Beer Motor Limit Switch (SW1014)

(1 customer review)

$5.50

Taito Ice Cold Beer Motor Limit Switch which is used on the top and bottom of each side of the game’s lift guide rods (SW1014).  This is also for Zeke’s Peak.  These micro switches have .187 terminals.

820 in stock

Description

Taito Ice Cold Beer Motor Limit Switch which is used on the top and bottom of each side of the game’s lift guide rods (SW1014).  This is also for Zeke’s Peak.  These microswitches have .187 terminals and operating force of 100GF (gram force) and length from center of screw hole to end of lever is 59.8mm / 2.354inches.  These Long lever micro switches are DC (3A / 30VDC) and AC (16A / 250VAC – 20A / 125VAC) rated so they can be used for the motor limit switches and also used to replace the ball sensing micro switches on the playfield which include Taito part numbers 29-00042-001 and 29-00040-001.  The motor limit switch levers were all custom bent so you may have to slightly bend them to match the ones your replacing but the ball sensing switches were perfectly straight so no bending required when replacing them.

Additional information

Weight .03125 lbs
Dimensions 3 × 1.25 × .5 in

1 review for Ice Cold Beer Motor Limit Switch (SW1014)

  1. Roman Frazier (verified owner)

    Was exactly what the machine needed to work properly again.
