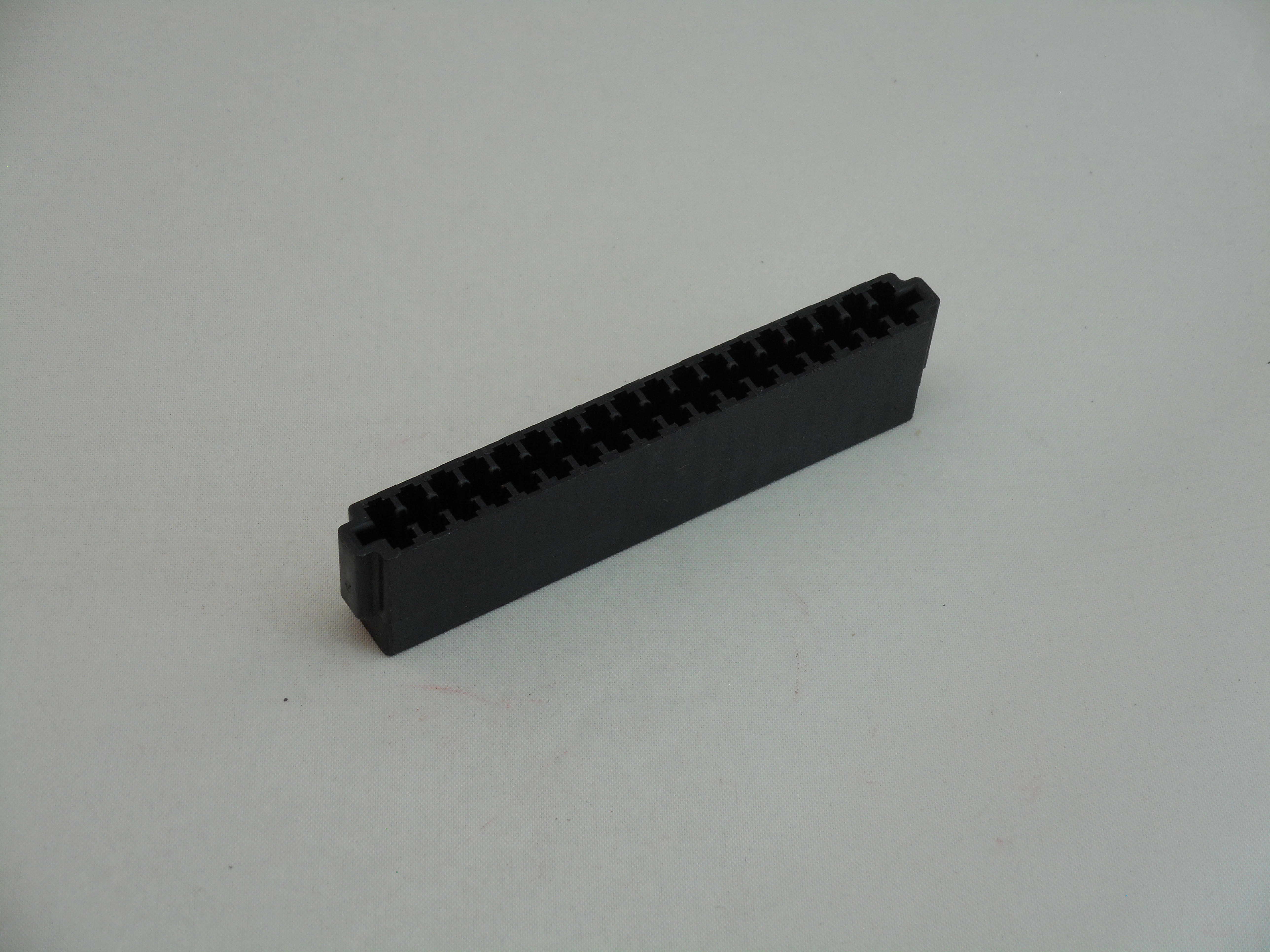

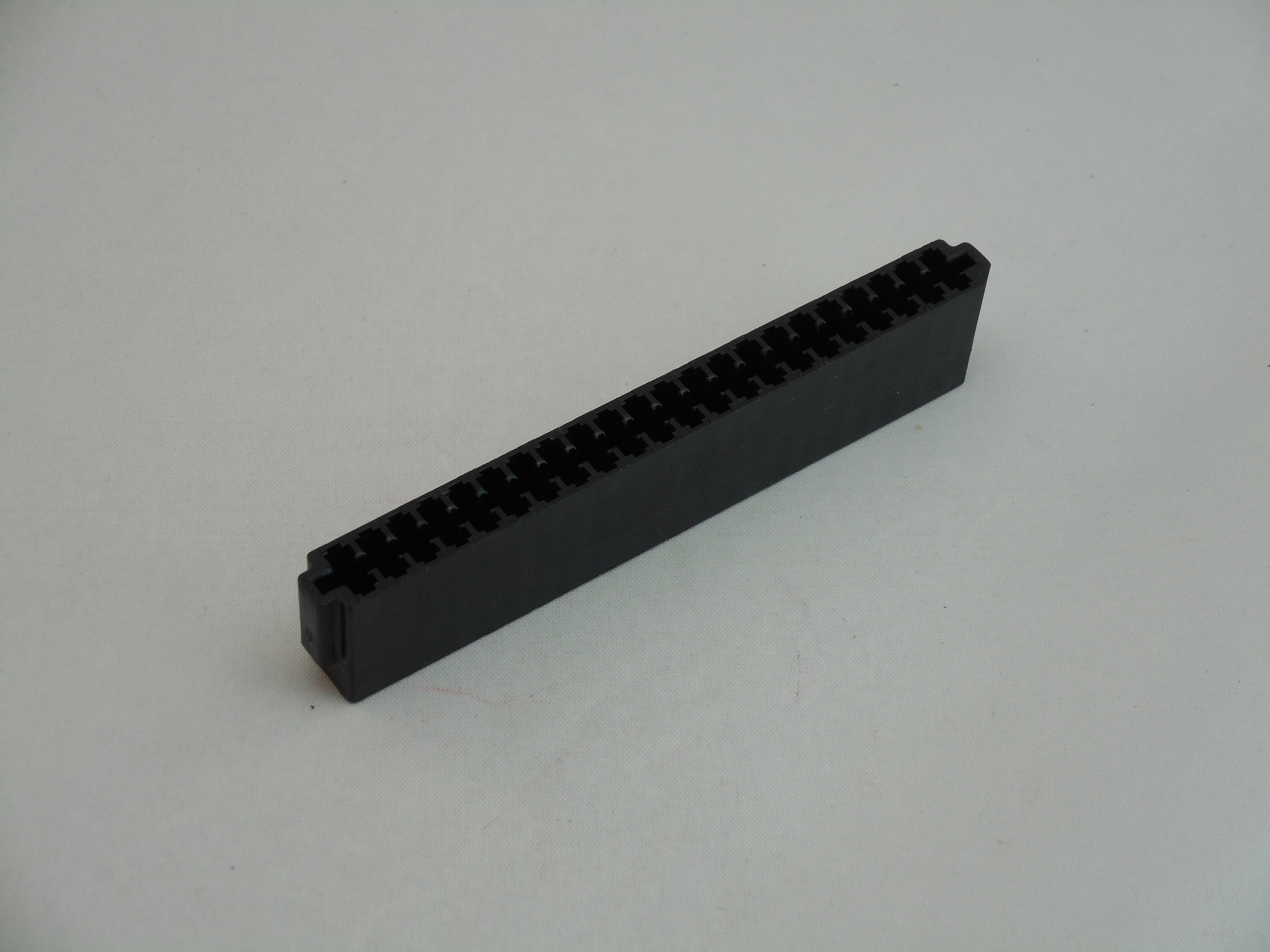

Molex 18/36 Crimp Pin Edge Connector Housing (ME1002)

$5.95

Molex 18/36 Crimp Pin Edge Connector Housing (ME1002).  When we run out of original molex stock you will receive the ones we had made.   Since Molex has discontinued these we had these made off their dies to match identically the original molex housings, without ears 09-50-5185 and replaces with ears 09-50-6185.  2 Row 36 Circuit total Housing with .156 center to center spacing (3.96mm).

923 in stock

Description

Molex 18/36 Crimp Pin Edge Connector Housing (ME1002).   When we run out of original molex stock you will receive the ones we had made.   Since Molex has discontinued these we had these made off their dies to match identically the original molex housings, without ears 09-50-5185 and replaces with ears 09-50-6185.  2 Row 36 Circuit total Housing with .156 center to center spacing (3.96mm).  Used on many Pinball and Arcade applications such as Midway, Atari, Williams, Gottlieb and many others.  Pins sold separately and these use only the ME1004 pins / contacts on our site.

Additional information

Weight .03125 lbs
Dimensions 3 × 1 × .75 in
