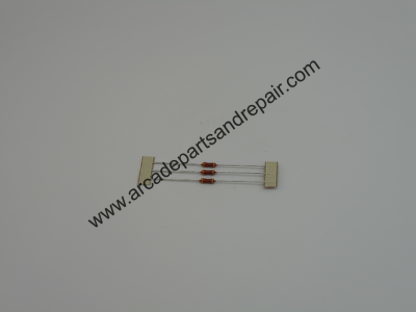

470 OHM 1 WATT METAL FILM POWER RESISTOR (3 pieces) (R1092)

$3.00

470 OHM 1 WATT 5% Tolerance METAL FILM Fusible POWER RESISTOR (3 pieces) (R1092).  For every quantity of 1 added to your cart you will receive 3 resistors.

329 in stock (can be backordered)

Description

470 OHM 1 WATT 5% Tolerance METAL FILM Fusible POWER RESISTOR (3 pieces) (R1092).   High Power with Small Size for Space Saving, Excellent Long Term Stability, Defined fusing characteristics, Meets active and passive flammability requirements as defined in IEC 60115-1, AEC-Q200 qualified and the resistors are coated with a red, non-flammable lacquer which provides electrical, mechanical and climatic protection.  These are used in many applications such as wells gardner monitor chassis U5000 and U2000 at R111 the original value but if doing the Horizontal upgrade than use our R1032 which is a two watt version and these are used in any other locations that require this type and value of resistor.  For every quantity of 1 added to your cart you will receive 3 resistors.

Additional information

Weight .015625 lbs
Dimensions 2.5 × .75 × .125 in
