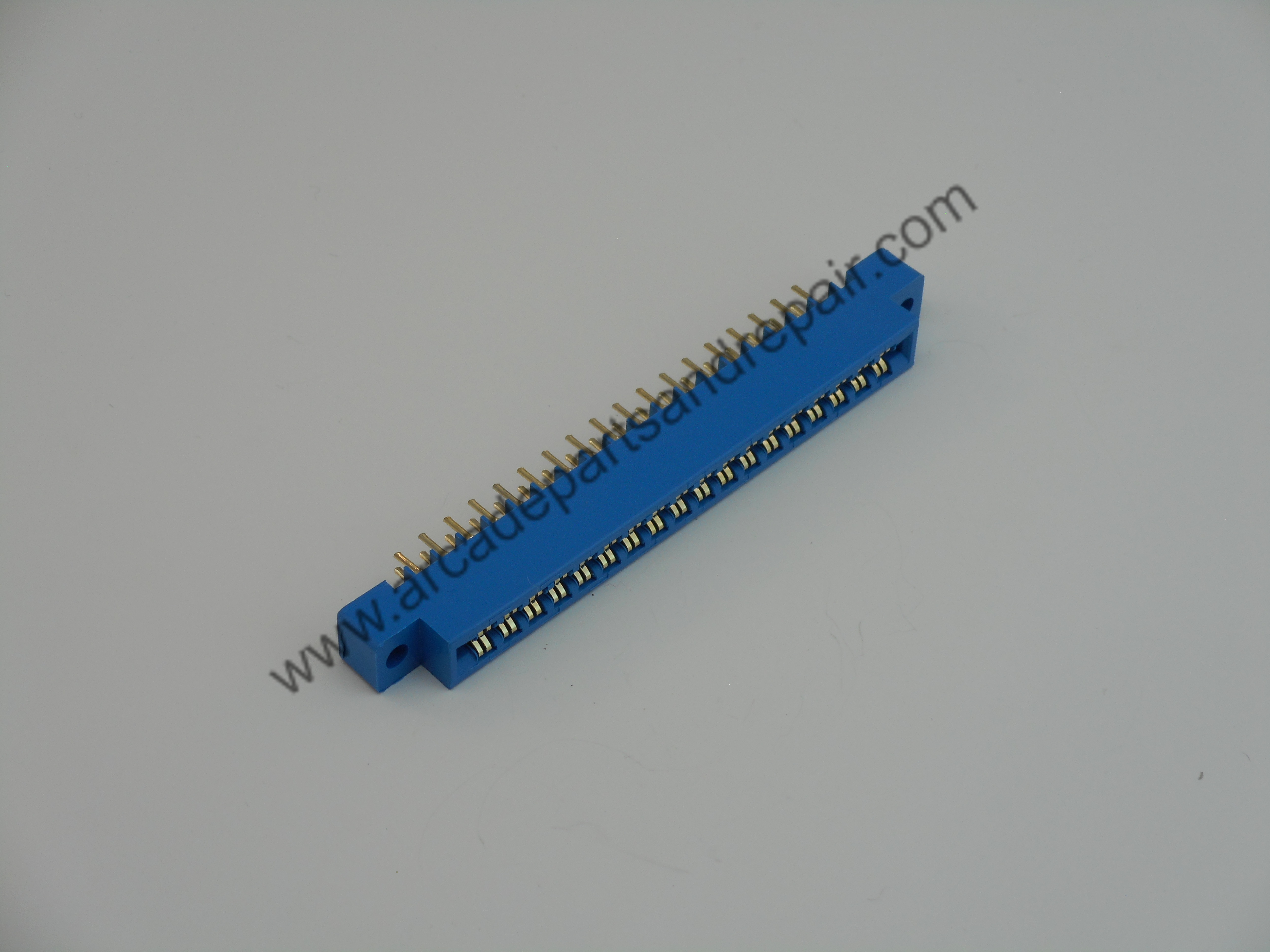

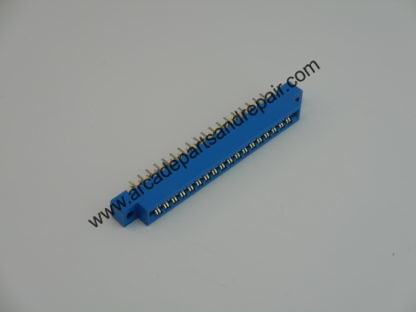

36-Pin Edge Connector W/Solder DIP Leads (EC1013)

(1 customer review)

$5.75

36-Pin Card Edge Connector with DIP Leads, 18/36 pin Arcade Jamma PCB Edge Connector Solder DIP (EC1013).  These are not the cheap edge connectors with such flimsy terminals / leads that fold over like tin foil that others sell.  This is a NEW dual row 18/36 pcb edge connector socket with 3.96mm / .156 pin spacing and used on many arcade and pinball games.

455 in stock

Description

36-Pin Card Edge Connector with Solder DIP Leads, 18/36 pin Arcade Jamma PCB Edge Connector Solder DIP leads that you can solder wire directly to it or insert them into the PCB and solder them (EC1013).  These are not the cheap edge connectors with such flimsy leads that fold over like tin foil that others sell.  This is a NEW dual row 18/36 pcb edge connector socket with 3.96mm / .156 pin/lead spacing pitch and used on many arcade and pinball games.  You can use these to replace your arcade/pinball edge connectors that have weak pins that are not making good contact or used to make various adapters.

Additional information

Weight .0625 lbs
Dimensions 3.75 × 1 × .5 in

1 review for 36-Pin Edge Connector W/Solder DIP Leads (EC1013)

  1. Sean Mahoney (verified owner)

    I buy these in different sizes and they work great for wiring up fingerboard adapters. I found direct soldering of wires caused some of the internal plastic to soften but caused no issues, but will stick to the eyelet leads if doing that.
