H1809 (D1058)

(1 customer review)

$24.75

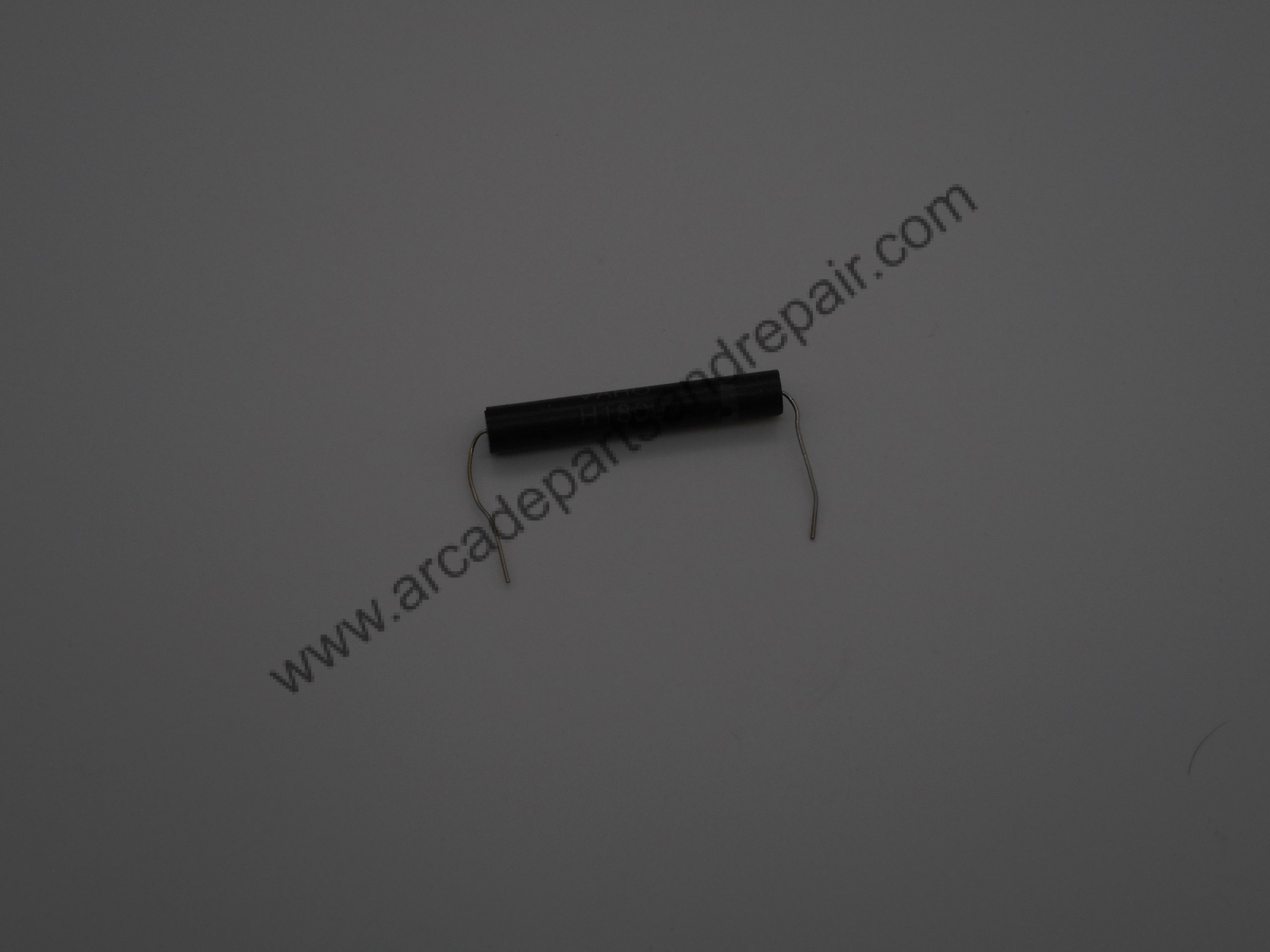

Varo H1809 High Voltage Rectifier Diode, (D1058).

73 in stock

Description

Varo H1809 High Voltage Rectifier Diode, (D1058).  Designed for B & W TV High Voltage Rectifier up to 30 kVDC CRT Voltage, Avalanche Quality Rectifier Junctions, Molding Material Rated UL 94 V-O, Uniform Chip-to-Chip Recovery, Low RFI in TV Circuits and Platinum Doped.  These Diodes are used on Black and White Electrohome G05-802 / G05-805 at D904 (28-42-01 or 28-48-01) and Wells Gardner V2000 at D903 (66X0067-002) arcade monitor chassis.  If your monitor is blooming (image getting larger then smaller over and over then your diode could be bad or your diode may just have a poor connection.  Either way you MUST clean the leads, springs and all parts prior to install to make sure you get a perfect connection otherwise you can burn up this new diode and don’t forget to set your high voltage when done installing otherwise you can get premature failure.  The H1809 is higher rated and can replace the H1812 and H1802 diodes.

Additional information

Weight .03125 lbs
Dimensions 3 × .25 × .25 in

1 review for H1809 (D1058)

  1. B.Harms

    I have an 19v2000 monitor. After 5 minutes, the picture would “bloom”. The diode was cracked.
    Purchased this new diode and problem is gone!
    Thanks!
